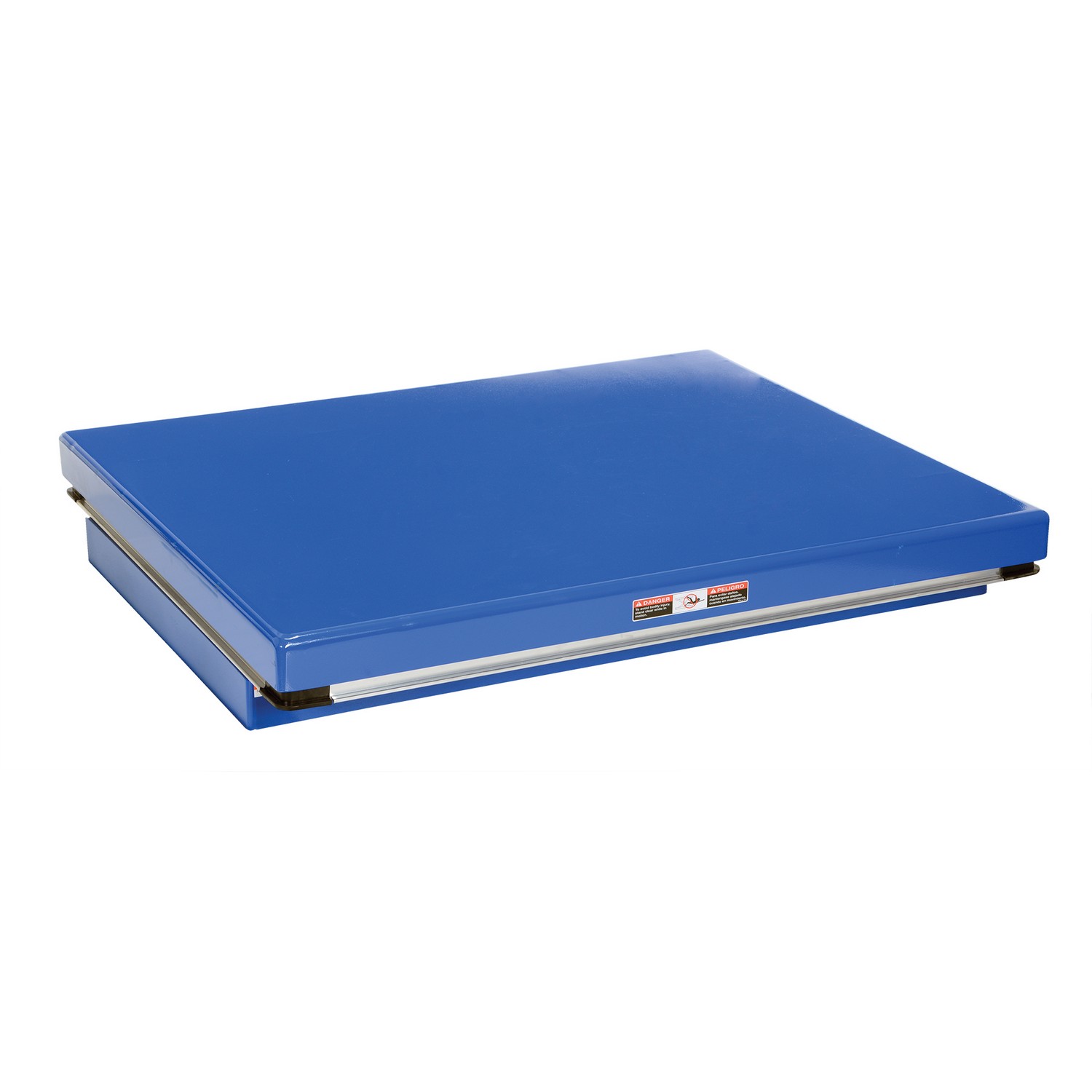

Vestil EHLT-4048-4-43 Electric HYDRaulic Lift Table 4K 40X48

Customer Reviews
SKU:
VESEHLT-4048-4-43
Weight:
878.00 LBS



$6,997.04
/ Each

Description

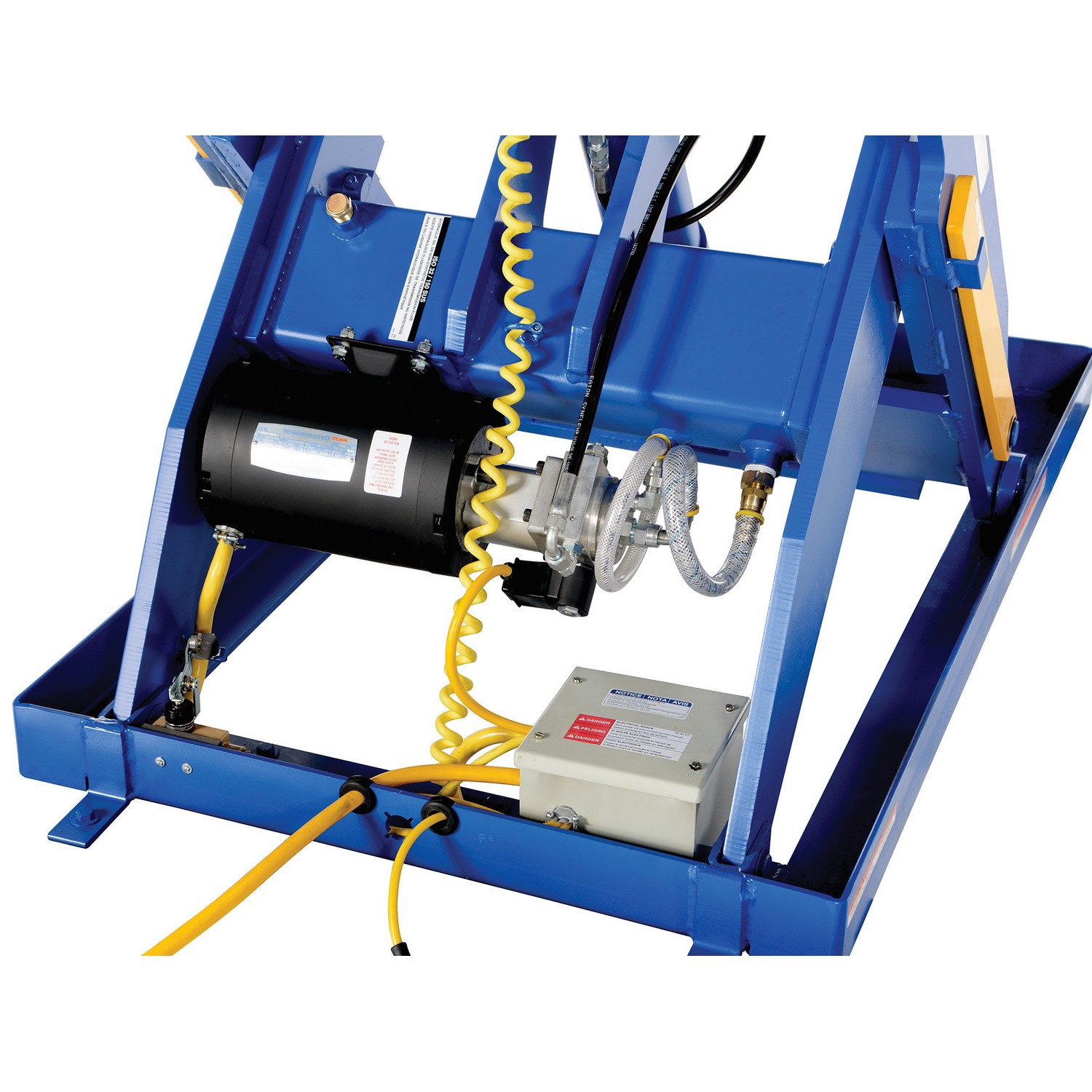

The Electric Hydraulic Scissor Lift Table is used by all types of manufacturing and warehouse facilities. Safety features include: patented pinch point perimeter toe guard to protect pinch points while lowering of the table, fused push button control, internal safety velocity fuse to maintain platform height in an event of hose or fitting failure, integral maintenance prop, adjustable upper travel limit switch to stop table at maximum height, and a displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, displacement style hydraulic cylinder, and a state-of-the-art lifetime lubricated bearings. The standard 56 frame electric motor is a fully enclosed with optional voltages available. Contact factory if platform dimensions are crucial.



Save with The Safety Source

At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.

Product Features:

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use



Product Specifications:

Color Blue
Material Steel
Uniform Capacity (lb.) 4,000
Travel Time (sec.) 22
Vertical Travel (in.) 36
Voltage/Phase 460/3
Hertz 60
Motor Horsepower 2
Hydraulic Component Rating (psi) 3000
Cord Length (in.) 96
Push Button Hand Control 24V AC
Raised Height (in.) 43
Lowered Height (in.) 7
Platform Width/Length (in.) 40-3/8 x 48-3/8
Package Size Each
SKU:
VESEHLT-4048-4-43
Weight:
878.00 LBS
Color:
Blue
Material:
Steel
Uniform Capacity (lb.):
4,000
Travel Time (sec.):
22
Vertical Travel (in.):
36
Voltage/Phase:
460/3
Hertz:
60
Motor Horsepower:
2
Hydraulic Component Rating (psi):
3000
Cord Length (in.):
96
Push Button Hand Control:
24V AC
Raised Height (in.):
43
Lowered Height (in.):
7
Platform Width/Length (in.):
40-3/8 x 48-3/8
Package Size:
Each
