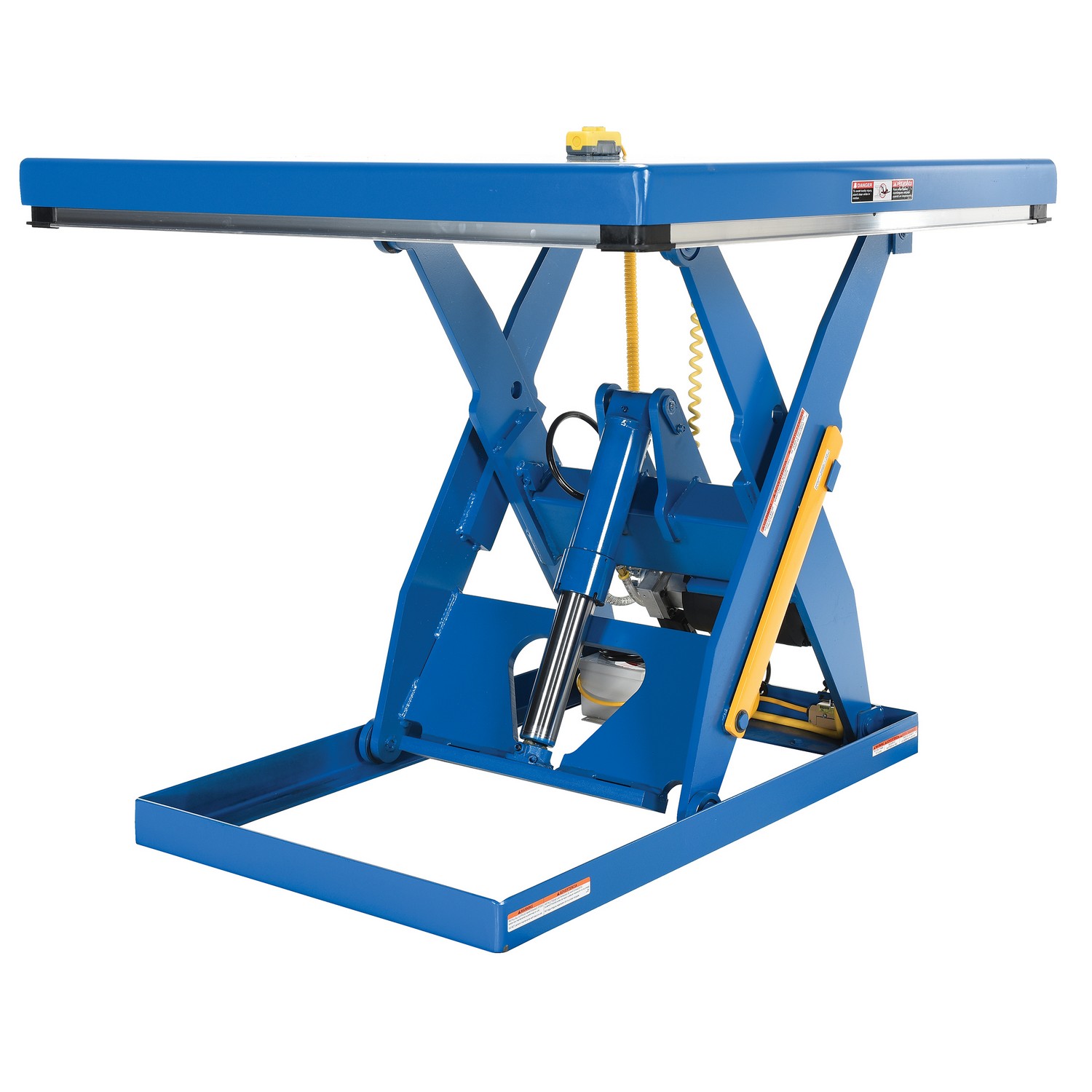

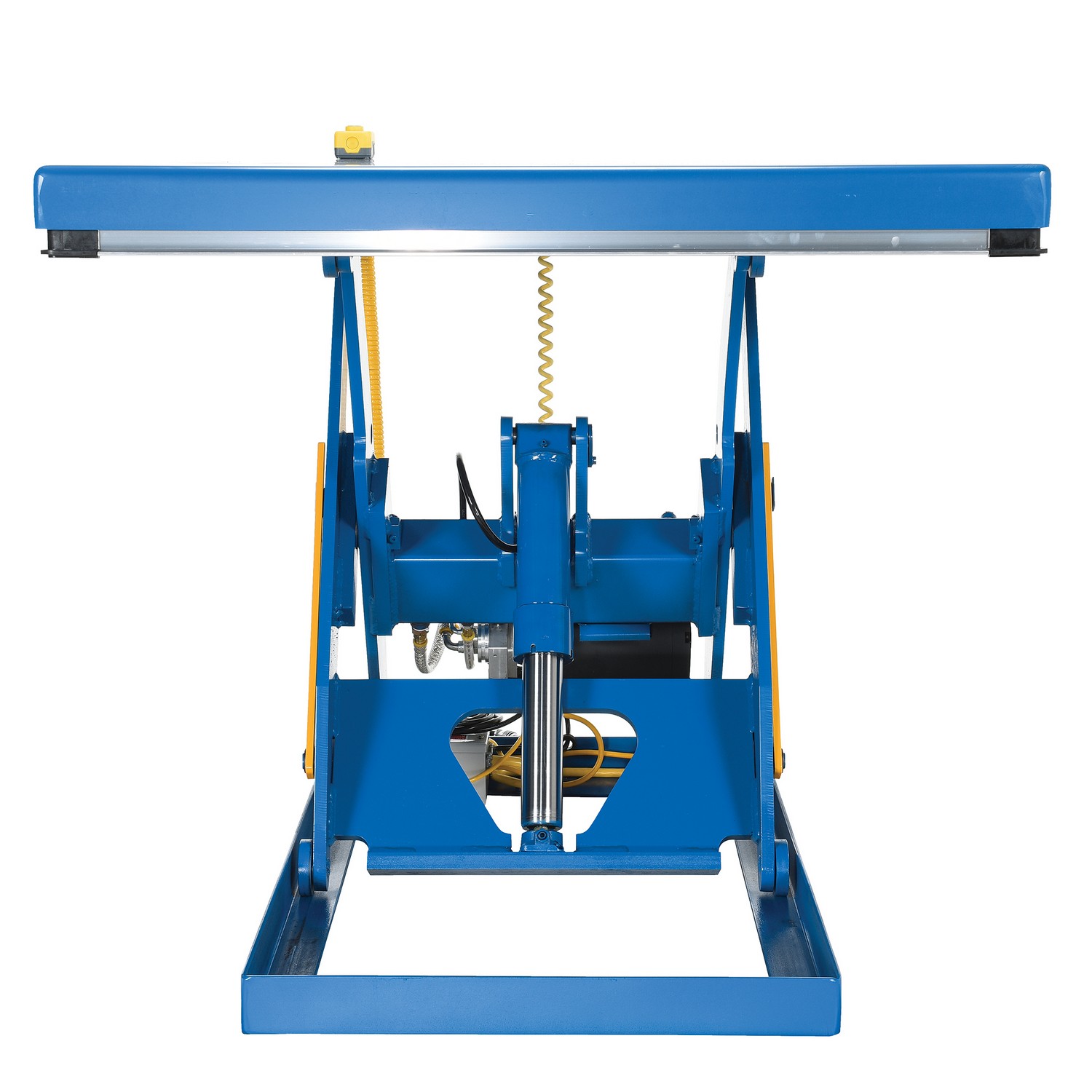

The Vestil Electric Hydraulic Lift Table VESEHLT-4848-2-43 is a heavy-duty mobile lifting platform designed to raise and lower loads in industrial settings. With a 2,000 lb uniform capacity and a 48- by 48-inch platform footprint, this unit is suited for palletized material handling, work staging, and ergonomic loading tasks in manufacturing, warehousing, and distribution environments. The lift employs displacement-style hydraulic cylinders and a steel frame to deliver dependable stroke and strength, while the four-sided electric toe-guard provides pinch-point protection in accordance with typical OSHA-related guidelines for lift-table use. A pressure-plated hydraulic pump and integrated manifold system contribute to efficient, controlled lifting and lowering cycles. The design also incorporates lifetime lubricated bearings and an integral maintenance prop to assist with safety and serviceability during routine maintenance and adjustments.
Features:
- Four-sided electric toe-guard meets pinch-point protection
- Displacement-style hydraulic cylinders provide strength
- Welded steel construction for durability
- Heavy-duty 2,000 lb capacity with 48-3/8 x 48-3/8 platform
- 230V? Actually 460V/3 phase, 60 Hz, 2 HP motor
- Long cord (96 in.) and 24V AC push-button control
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 2000
- Travel Time (sec.):
- 11
- Vertical Travel (in.):
- 36
- Voltage/Phase:
- 460/3
- Hertz:
- 60
- Motor Horsepower:
- 2
- Hydraulic Component Rating (psi):
- 3000
- Cord Length (in.):
- 96
- Push Button Hand Control:
- 24V AC
- Raised Height (in.):
- 43
- Lowered Height (in.):
- 7
- Platform Width/Length (in.):
- 48-3/8 x 48-3/8
- Package Size:
- Each
