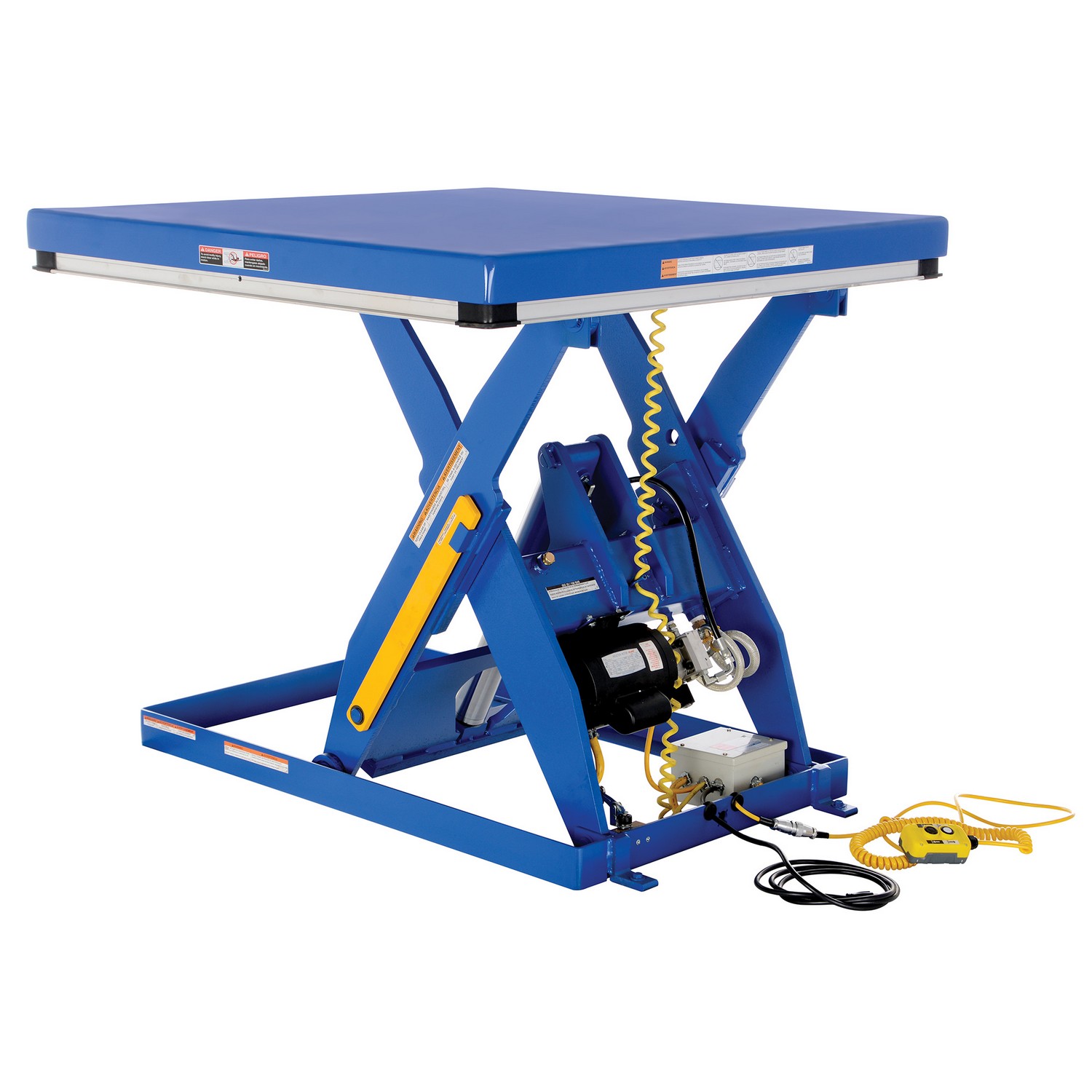

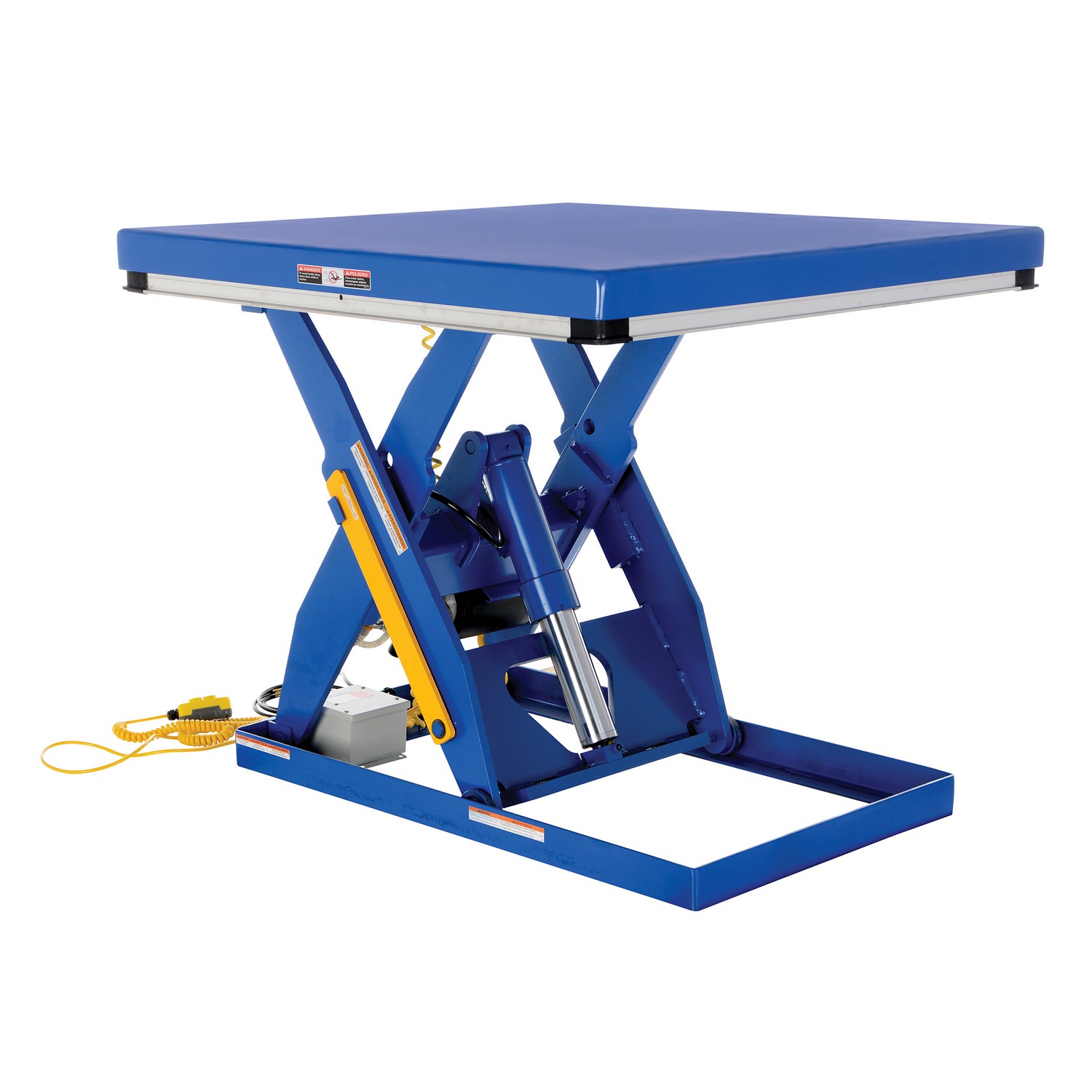

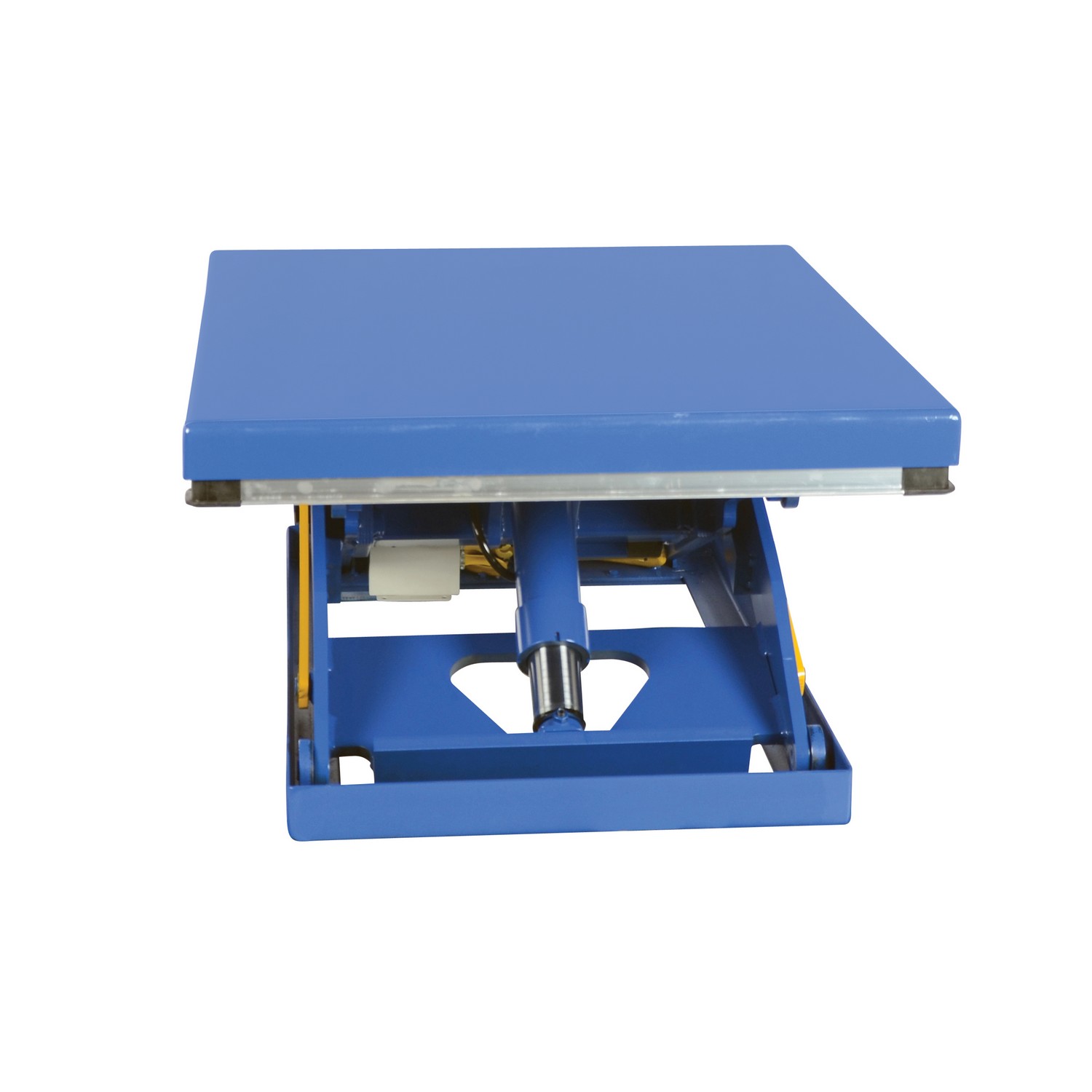

The Vestil Electric Hydraulic Lift Table VESEHLT-4848-3-43 is a 3,000 lb capacity lift table designed to raise and lower loads in warehouse and manufacturing settings. Built with welded steel construction and a blue finish, it provides a sturdy platform for ergonomic material handling tasks. The table features a displacement-style hydraulic cylinder and an aluminum pressure-plated hydraulic pump to deliver reliable lifting performance, while a four-sided electric toe-guard helps maintain OSHA pinch-point separation during operation. A fused push-button control and an internal safety velocity fuse contribute to controlled, safe lowering and platform stability in the event of hose or fitting failure. The table is powered by a 460V/3-phase, 60 Hz motor with a 2 HP rating, and is equipped with a 96-inch cord for flexible installation near power sources.
The platform dimensions are 48-3/8 inches by 48-3/8 inches, with a raised height of 43 inches and a lowered height of 7 inches, offering a 36-inch vertical travel to accommodate a range of load heights. The model includes a maintenance-prop for stabilization during service and an adjustable upper travel limit switch to stop the table at maximum height. The VESEHLT-4848-3-43 is intended for heavy-duty material handling workflows and is supplied as a single-package unit. When platform dimensions are critical, users should contact the factory for confirmation, as exact sizing may influence compatibility with existing workstations, docks, or transport equipment.
Features:
- Four-sided electric toe-guard meets OSHA pinch point considerations
- Displacement-style hydraulic cylinders for maximum strength
- Welded steel construction for reliable heavy-duty use
- Durable aluminum pressure-plated hydraulic pump for efficiency
- Platform size: 48-3/8 x 48-3/8 inches
- Travel: 36 inches vertical movement with 43" raised height
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 3,000
- Travel Time (sec.):
- 16
- Vertical Travel (in.):
- 36
- Voltage/Phase:
- 460/3
- Hertz:
- 60
- Motor Horsepower:
- 2
- Hydraulic Component Rating (psi):
- 3000
- Cord Length (in.):
- 96
- Push Button Hand Control:
- 24V AC
- Raised Height (in.):
- 43
- Lowered Height (in.):
- 7
- Platform Width/Length (in.):
- 48-3/8 x 48-3/8
- Package Size:
- Each
