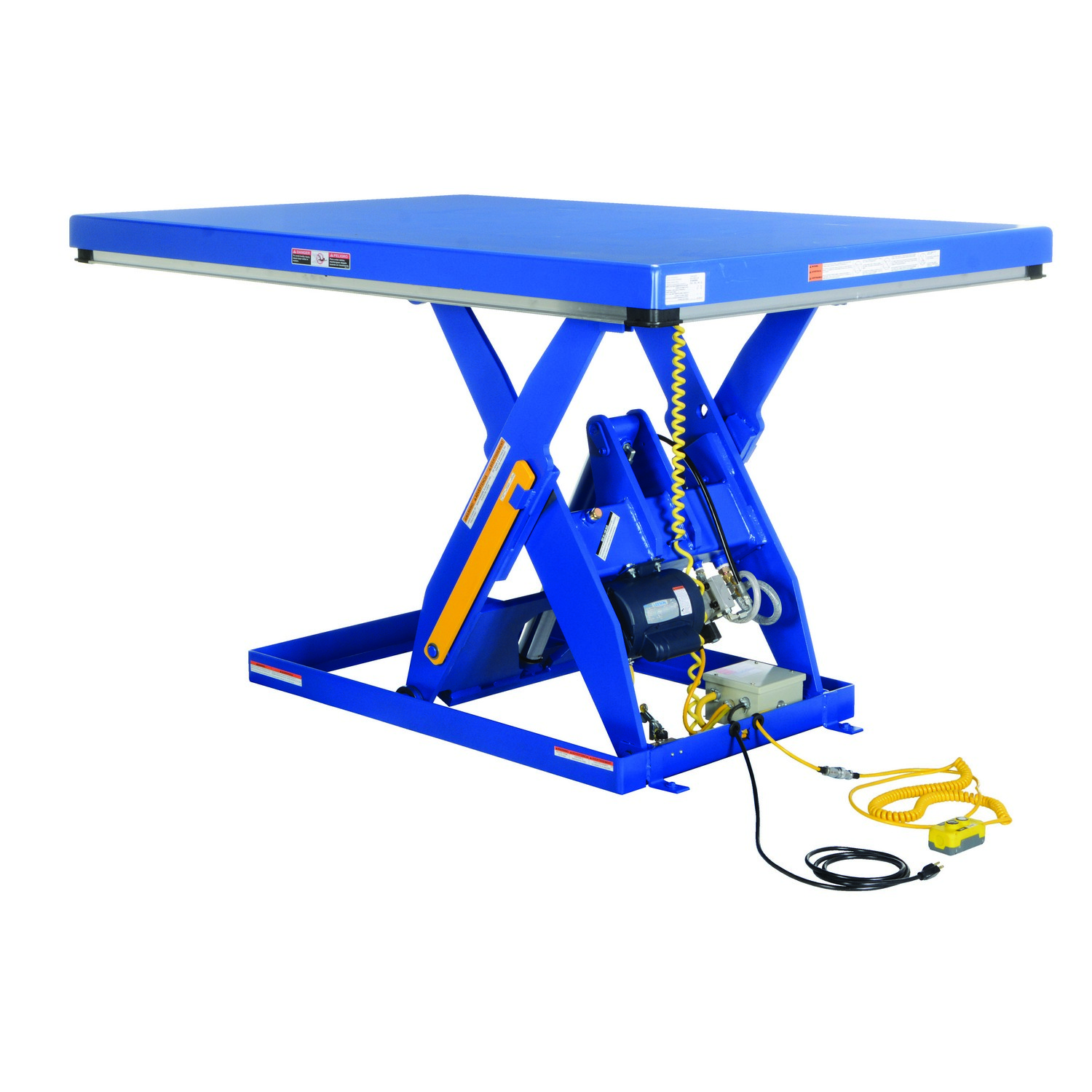

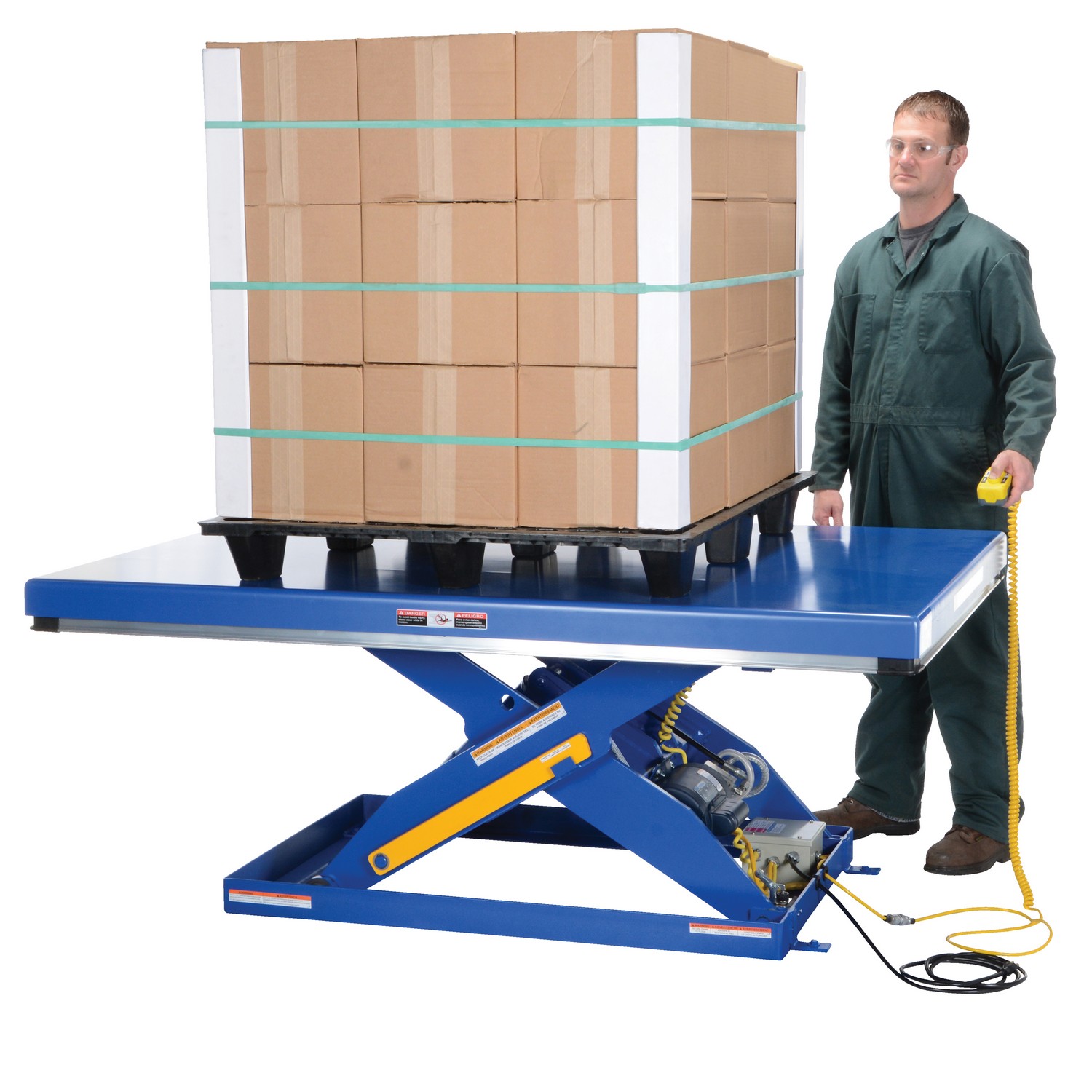

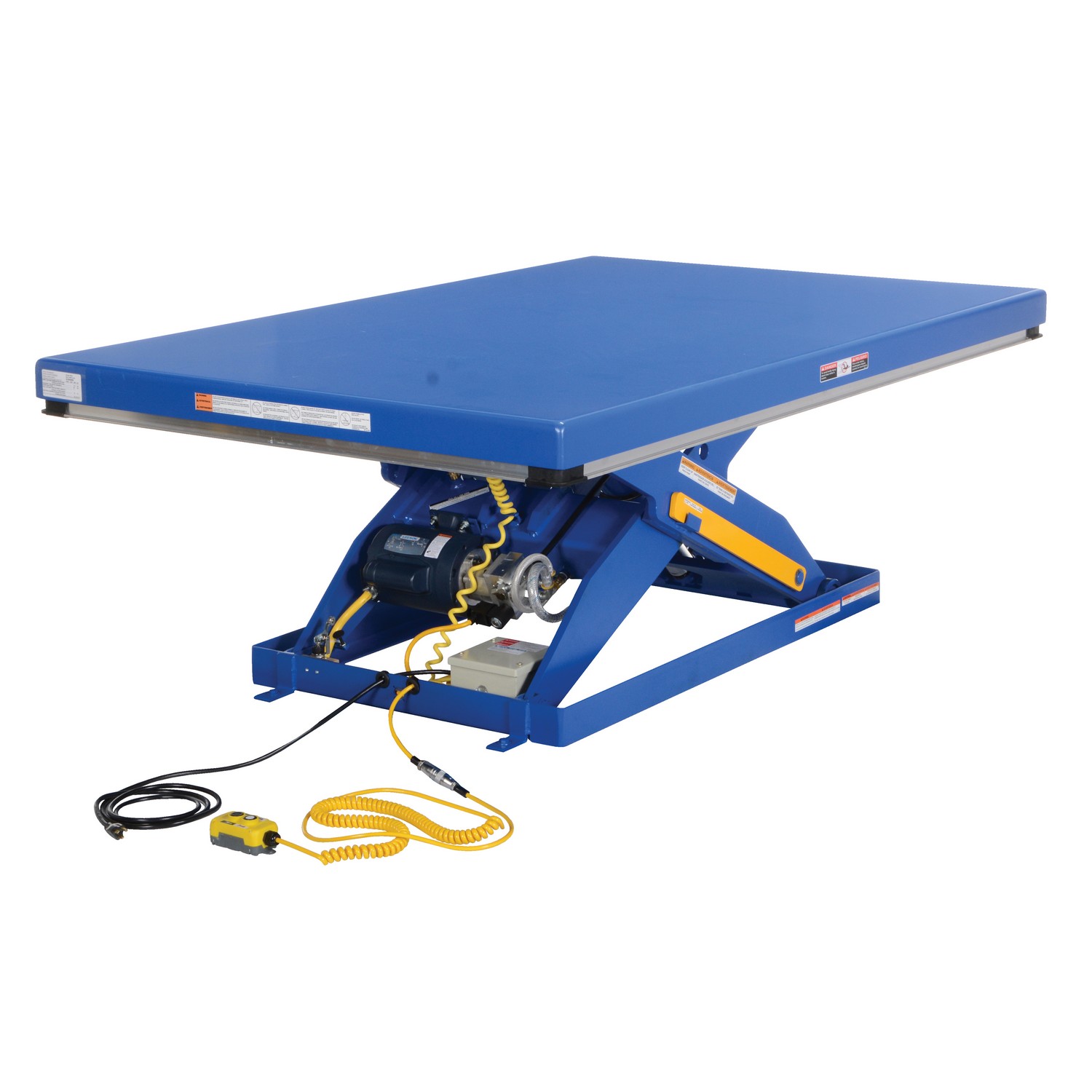

The Vestil Electric Hydraulic Lift Table VESEHLT-4872-4-43 is a heavy-duty material handling solution designed to raise and lower loads in manufacturing, distribution, and warehousing environments. With a four-thousand-pound (4,000 lb) uniform capacity and a platform measuring approximately 48 3/8 inches by 72 3/8 inches, this lift table provides a stable work surface for wide pallets and bulky goods. Its electric hydraulic system delivers controlled lifting through a 36-inch vertical travel, and the unit uses displacement-style hydraulic cylinders paired with a pressure-plated pump to support strong, reliable operation. The design includes a four-sided toe guard to address pinch points and a maintenance-oriented construction with welded steel components, contributing to durable performance under demanding use cycles.
Key construction features include a blue-painted steel frame and a designed emphasis on safety and serviceability. The lift is equipped with a 24 V AC push-button control, a 96-inch cord, and a 460/3 electrical supply, 60 Hz, along with a 2-horsepower motor to drive the lift mechanism. Internal safety features such as a velocity fuse help maintain platform height in the event of a hose or fitting failure, while an integral maintenance prop and adjustable upper travel limit switch aid setup, stowage, and safe operation at maximum height. The combination of a pressure-plated pump and a robust hydraulic system supports predictable lift performance in daily material handling tasks.
When planning integration, confirm electrical requirements and platform dimensions to ensure compatibility with your workspace and load profiles. The unit’s dimensions—including a raised height of 43 inches and a lowered height of 7 inches—along with its 96-inch power cord length, help determine clearance, reach, and service access. This lift table is sold as a single unit and is suited for environments that require frequent height adjustment of heavy loads without forklift or manual hoist assistance.
Features:
- Four-sided electric toe-guard to meet pinch point safety needs
- Durable aluminum pressure-plated hydraulic pump for efficiency
- Displacement-style hydraulic cylinders for maximum strength
- Welded steel construction for heavy-duty reliability
- 4000 lb uniform capacity with 36 in vertical travel
- Platform dimensions: 48-3/8 x 72-3/8 in
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 4,000
- Travel Time (sec.):
- 22
- Vertical Travel (in.):
- 36
- Voltage/Phase:
- 460/3
- Hertz:
- 60
- Motor Horsepower:
- 2
- Hydraulic Component Rating (psi):
- 3000
- Cord Length (in.):
- 96
- Push Button Hand Control:
- 24V AC
- Raised Height (in.):
- 43
- Lowered Height (in.):

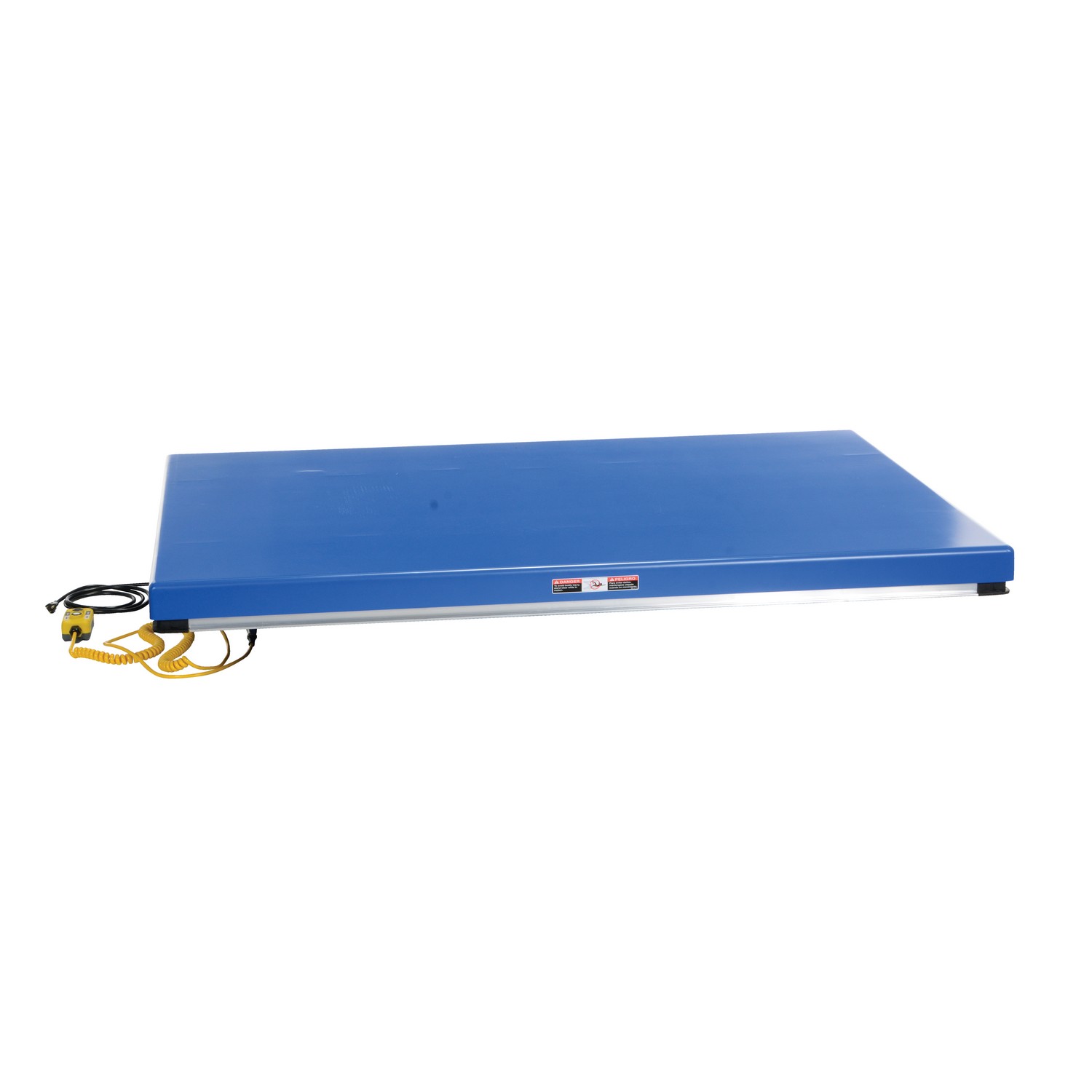

- 7
- Platform Width/Length (in.):
- 48-3/8 x 72-3/8
- Package Size:
- Each
