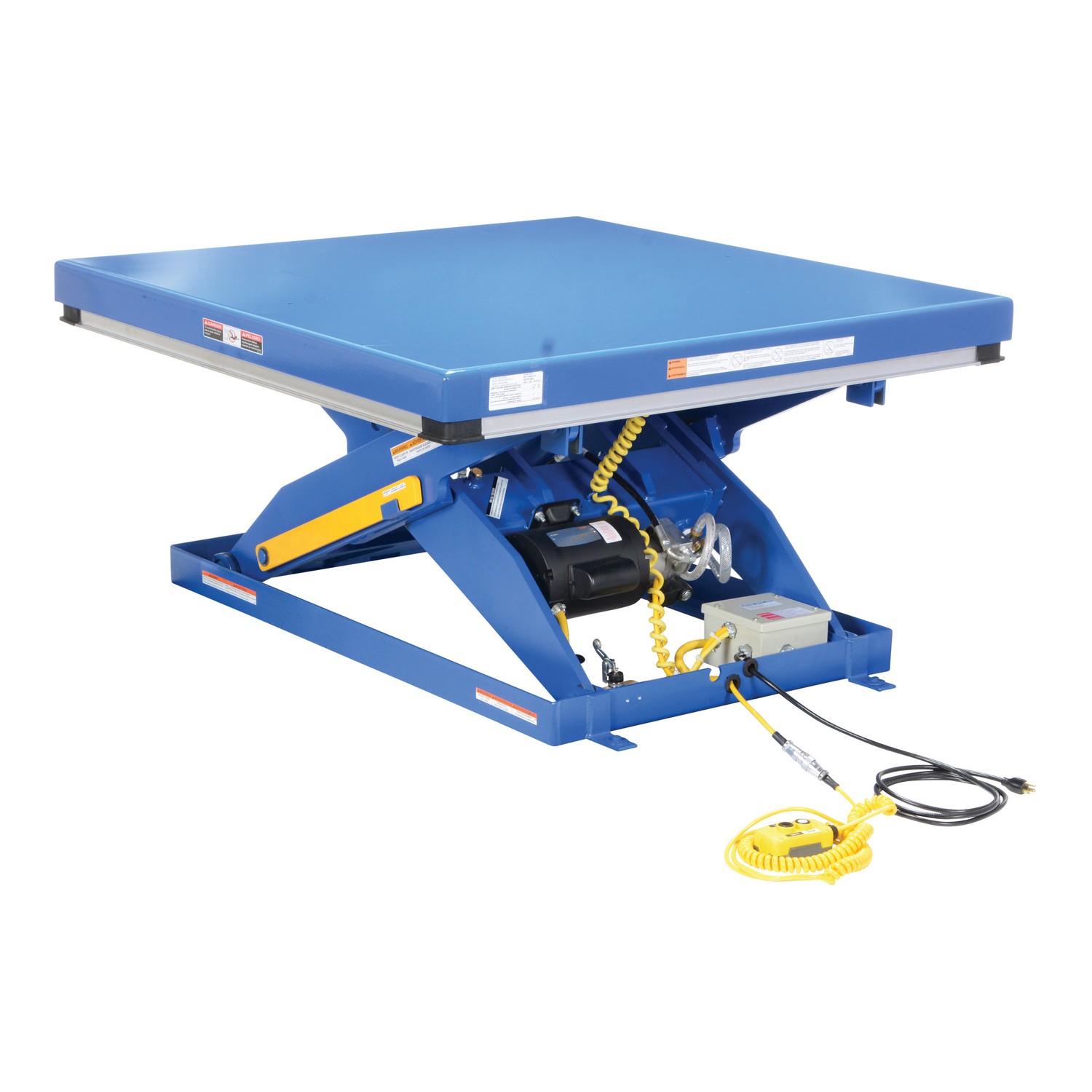

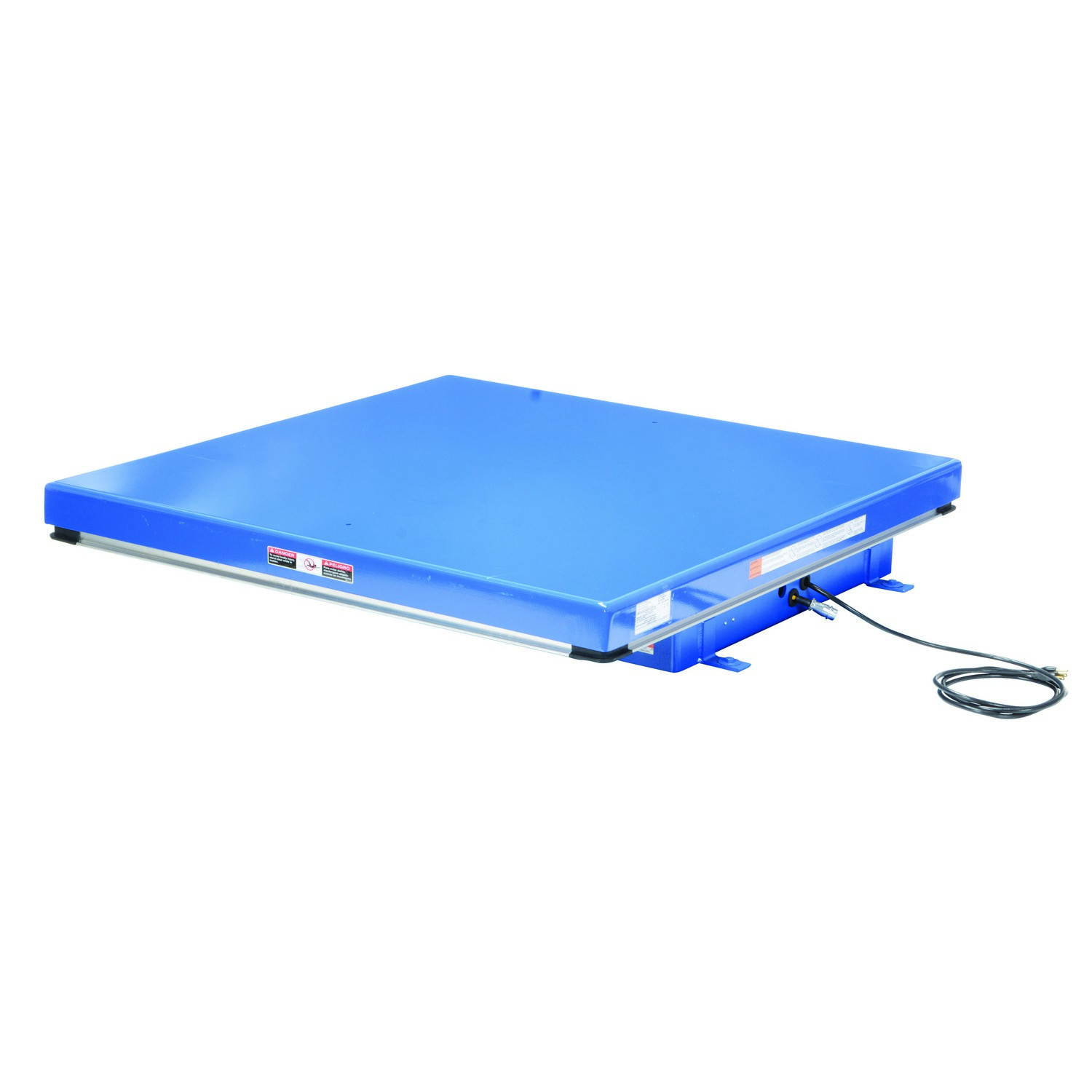

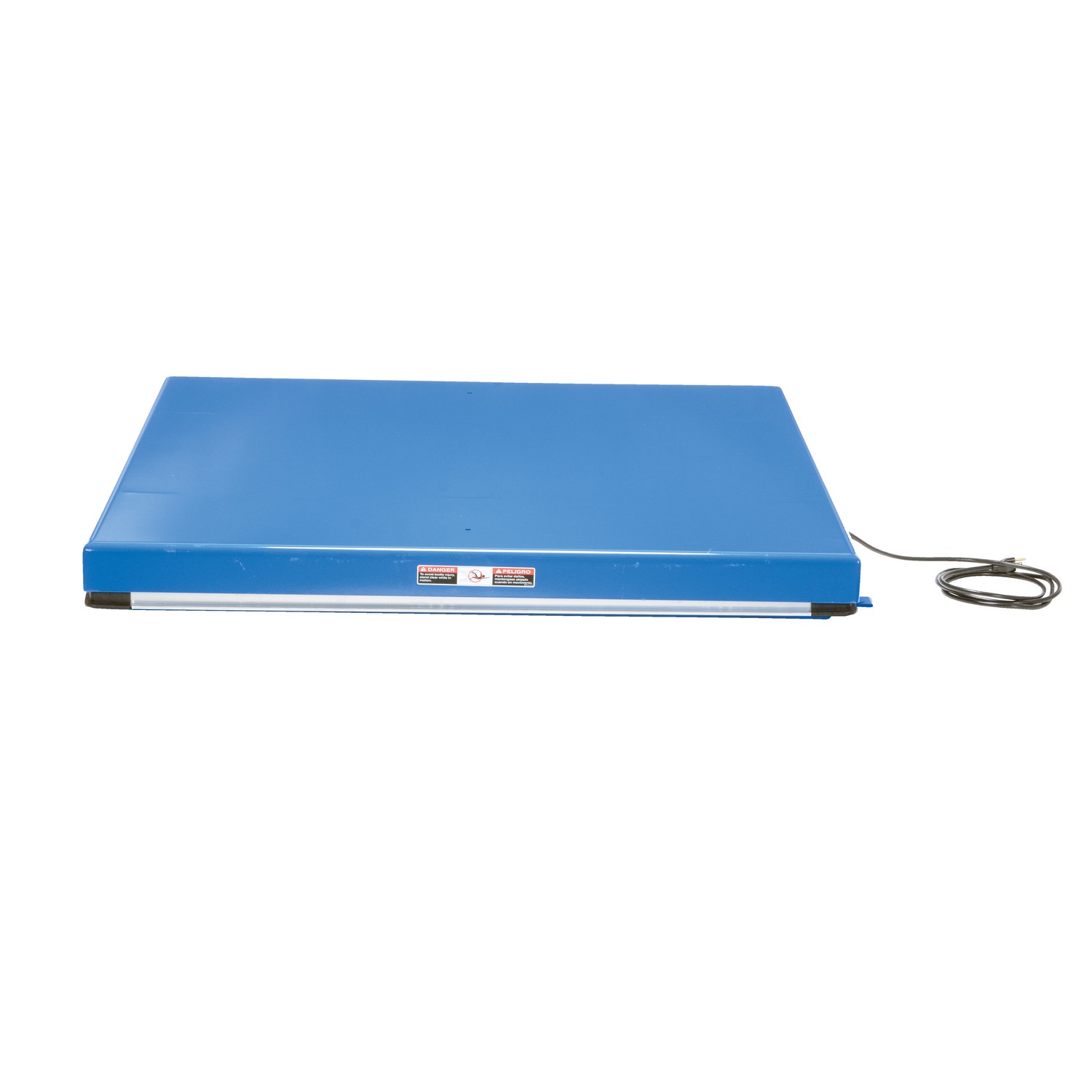

The Vestil Electric Hydraulic Lift Table is a heavy-duty material handling solution designed to raise and position loads with precision in manufacturing and warehouse environments. This 4,000‑lb capacity unit combines welded steel construction with a platform that measures 48-3/8 by 48-3/8 inches, providing a stable work surface for lifting pallets, bins, and equipment. The system uses displacement-style hydraulic cylinders and a pressure-plated pump to deliver robust vertical movement, while a four-sided electric toe guard helps limit pinch points at the perimeter during lowering operations. A built-in maintenance prop and an adjustable upper travel limit switch enhance reliability by supporting safe, controlled operation across a broad range of tasks.
Key features include a 36-inch travel height and a lowered height of 7 inches, with a platform movement time of roughly 22 seconds to full height. The lift is powered by a 460V three-phase motor rated at 2 horsepower, and the hydraulic circuit operates at 3,000 psi. Control is via a 24V AC push-button hand control, and the unit ships with a 96-inch cord for flexible placement. The design emphasizes durability through welded steel construction and heavy-duty bearings that are intended to withstand frequent cycling in demanding settings. The standard blue finish helps identify the unit in busy facilities while aligning with common industrial color coding.
When planning use, consider the electric lift’s lift height, platform dimensions, and power requirements to ensure proper fit within your work cells or docking zones. This model is suitable for applications where a stable, elevated work surface is needed for loading, unloading, or positioning heavy items and where a safe, perimeter-toe-guarded approach minimizes pinch points during lowering. For critical dimensional needs, note that platform length and width are specified as 48-3/8 by 48-3/8 inches, and the unit is packaged as a single, ready-to-integrate lift table.
Features:
- Four-sided electric toe-guard for pinch point protection
- Heavy-duty welded steel construction
- Displacement-style hydraulic cylinders for strength
- Aluminum pressure-plated hydraulic pump for efficiency
- Platform: 48-3/8 x 48-3/8 inches; Raised height: 43 inches
- Lowered height: 7 inches; Capacity: 4,000 lb
- Voltage/Phase: 460V/3; Motor: 2 HP; 60 Hz
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 4,000
- Travel Time (sec.):
- 22
- Vertical Travel (in.):
- 36
- Voltage/Phase:
- 460/3
- Hertz:
- 60
- Motor Horsepower:
- 2
- Hydraulic Component Rating (psi):
- 3000
- Cord Length (in.):
- 96
- Push Button Hand Control:
- 24V AC
- Raised Height (in.):
- 43
- Lowered Height (in.):
- 7
- Platform Width/Length (in.):
- 48-3/8 x 48-3/8
- Package Size:
- Each
