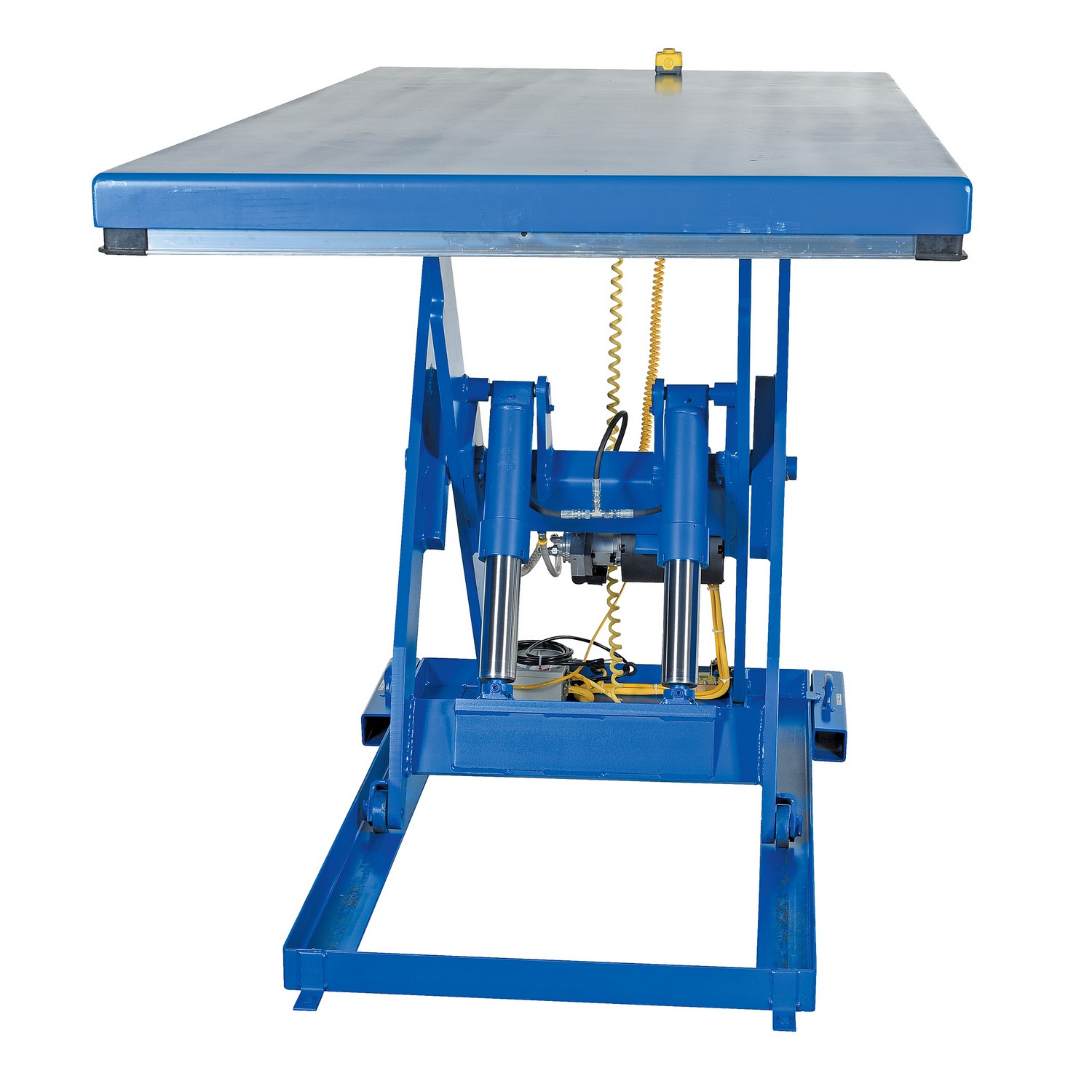

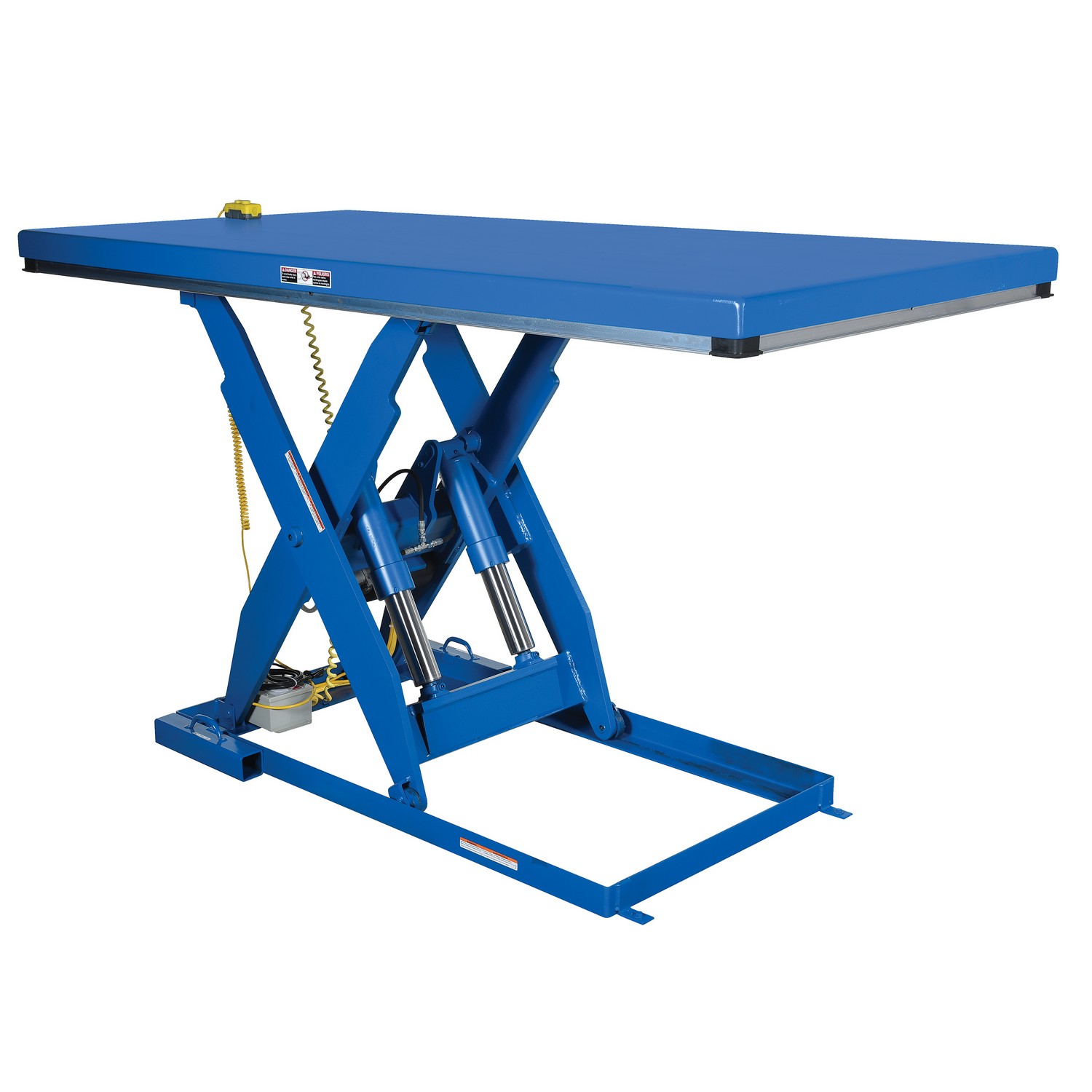

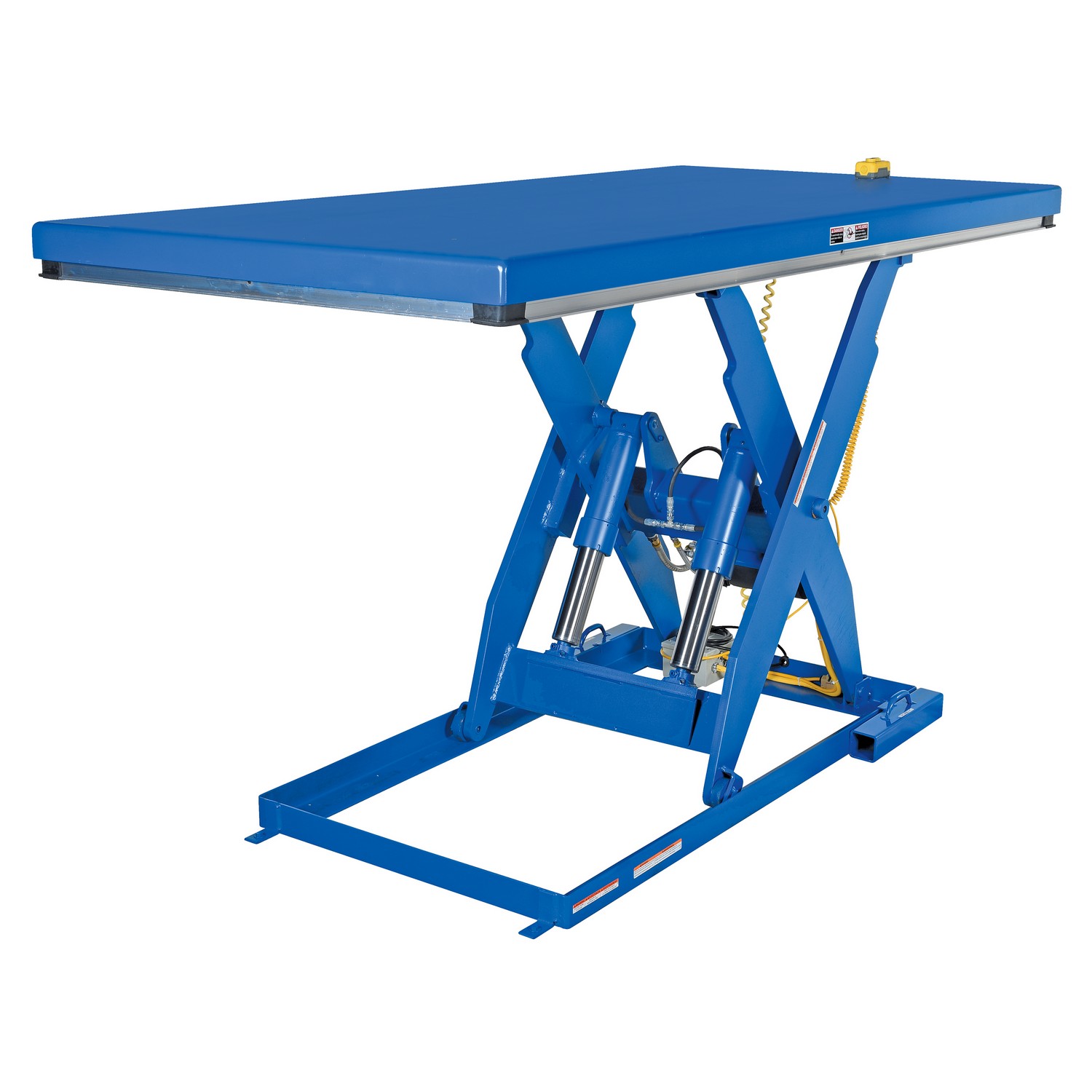

Vestil EHLT-4896-4-56 Electric Hydraulic Lift Table is designed for heavy-duty material handling in manufacturing and warehouse settings. This 4,000 lb capacity lift table elevates loads to a 56 in. raised height with a 48 in. by 96 in. platform, providing a stable work surface for shipping, staging, and assembly tasks. Its electric hydraulic system is engineered for dependable neutral operation and controlled vertical movement, while a four-sided toe-guard helps prevent pinch-point injuries during lowering. The unit’s welded steel construction and steel platform deliver the strength needed to withstand demanding daily use in industrial environments.
Key features include a displacement-style hydraulic cylinder arrangement for enhanced strength and a pressure-plated pump/manifold system that supports consistent performance under load. The standard 460V/3-phase, 60 Hz electrical configuration drives a 2 HP motor, and the control is wired to a compact 24V AC push-button hand control. Internal safety measures, such as a velocity fuse and an adjustable upper travel limit switch, help maintain safe operation by preserving platform height in the event of hose or fitting failure and by stopping the table at maximum height when required. The unit ships with a 96 in. cord and uses a blue, steel frame with aluminum pressure-plated hydraulic components noted for efficiency.
This lift table is suitable for environments where precise, repeatable elevation of heavy loads is needed. It’s important to verify platform dimensions and electrical requirements for your facility, as factory customization may be needed for non-standard configurations. When planning purchase, consider lead time and shipping quotes, as indicated in the manufacturer note, to ensure timely availability for your operation.
Features:
- Four-sided electric toe-guard meets OSHA pinch point specification
- Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
- Displacement-style hydraulic cylinders offer maximum strength
- Welded steel construction provides reliable heavy-duty use
- Platform dimensions: 48-3/8 in. x 96-3/8 in. with 56 in. raised height
- Vertical travel of 48 inches and travel time of 32 seconds
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 4000
- Travel Time (sec.):
- 32
- Vertical Travel (in.):
- 48
- Voltage/Phase:
- 460/3
- Hertz:
- 60
- Motor Horsepower:
- 2
- Hydraulic Component Rating (psi):
- 3000
- Cord Length (in.):
- 96
- Push Button Hand Control:
- 24V AC
- Raised Height (in.):
- 56
- Lowered Height (in.):
- 8
- Platform Width/Length (in.):
- 48-3/8 x 96-3/8
- Package Size:
- Each
