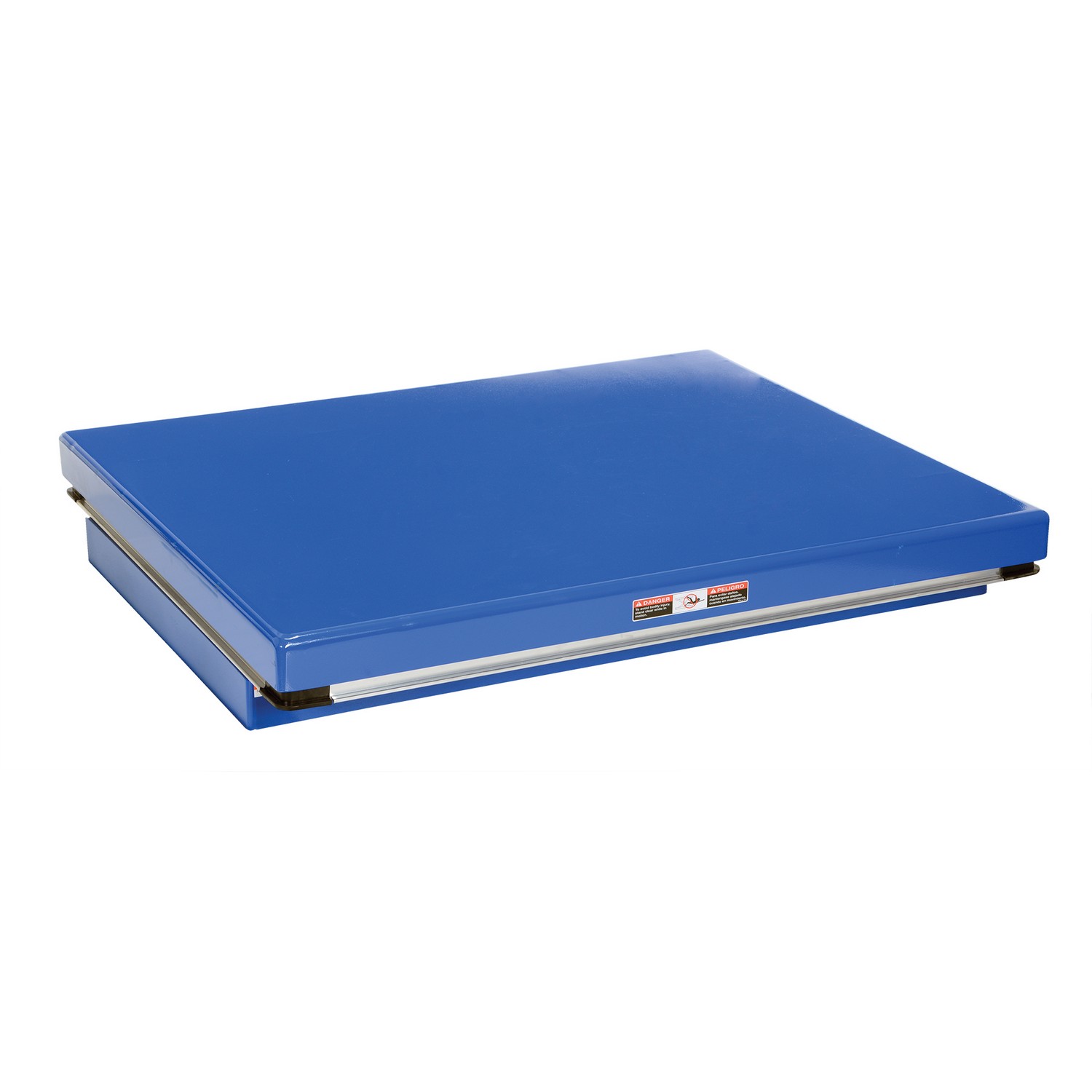

The Vestil EHLT-4048-4-43 Electric Hydraulic Lift Table is a robust material handling solution designed to raise loads to convenient working heights in manufacturing and warehouse settings. With a 4,000 lb capacity and a platform measuring 40-3/8 by 48-3/8 inches, this lift table provides a stable base for lifting heavy items, helping reduce manual handling and improve ergonomics during loading, unloading, and order fulfillment tasks. The unit is built on a welded steel frame and features a four-sided electric toe-guard to address pinch points around the platform, supporting safer operation during lowering cycles. A 96-inch cord and a 24V AC push-button control enable flexible, hands-on control at the lift site, while a 2 HP motor and a 460V three-phase configuration deliver the power needed for reliable performance in demanding environments.
Features:
- Four-sided electric toe-guard for OSHA pinch-point protection

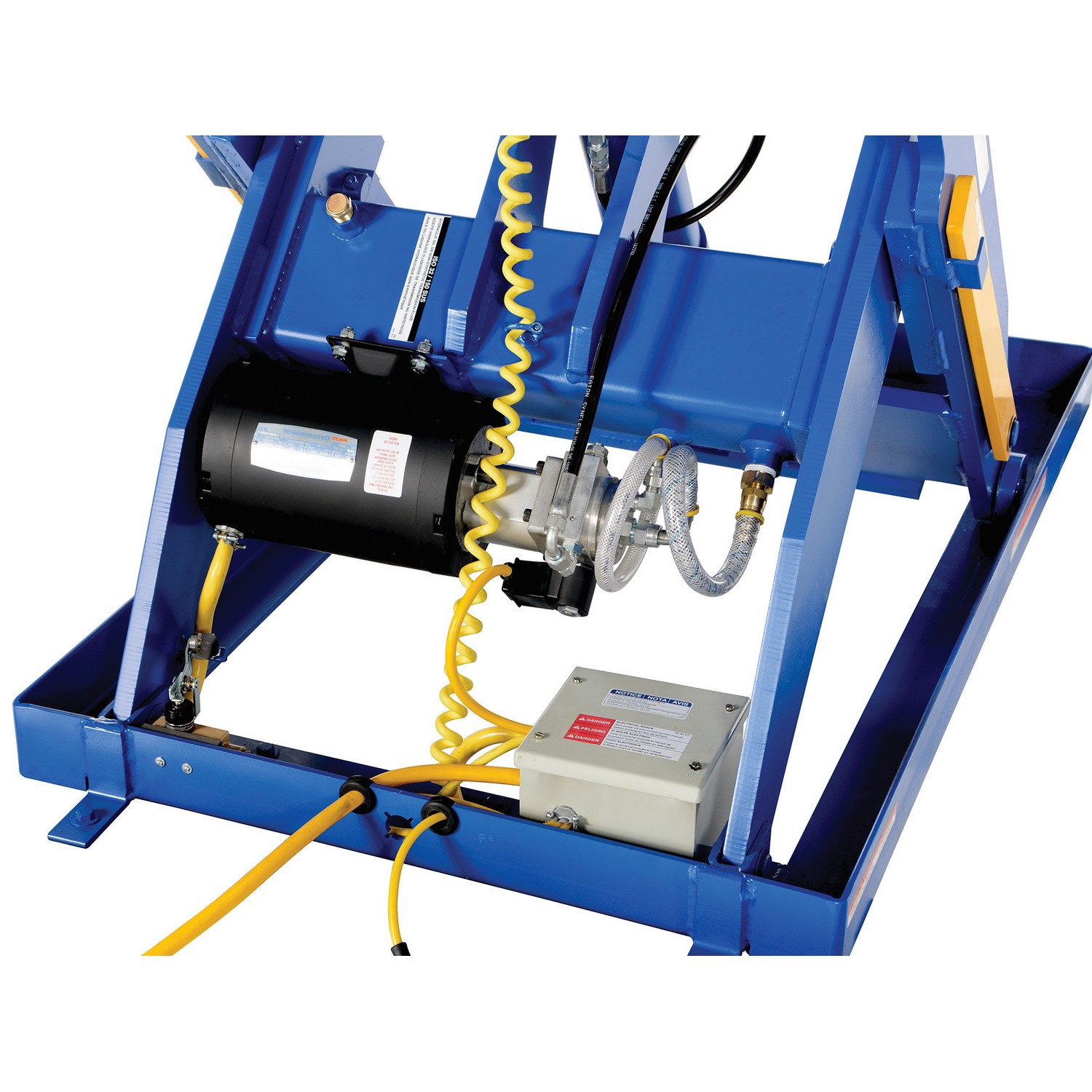

- Durable aluminum pressure-plated hydraulic pump for efficiency
- Displacement-style hydraulic cylinders for strong lifting capacity
- Welded steel construction for heavy-duty use
- Platform: 40-3/8 x 48-3/8 inches
- Raised height: 43 inches; Lowered height: 7 inches
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 4,000
- Travel Time (sec.):
- 22
- Vertical Travel (in.):
- 36
- Voltage/Phase:
- 460/3
- Hertz:
- 60
- Motor Horsepower:
- 2
- Hydraulic Component Rating (psi):
- 3000
- Cord Length (in.):
- 96
- Push Button Hand Control:
- 24V AC
- Raised Height (in.):
- 43
- Lowered Height (in.):
- 7
- Platform Width/Length (in.):
- 40-3/8 x 48-3/8
- Package Size:
- Each
