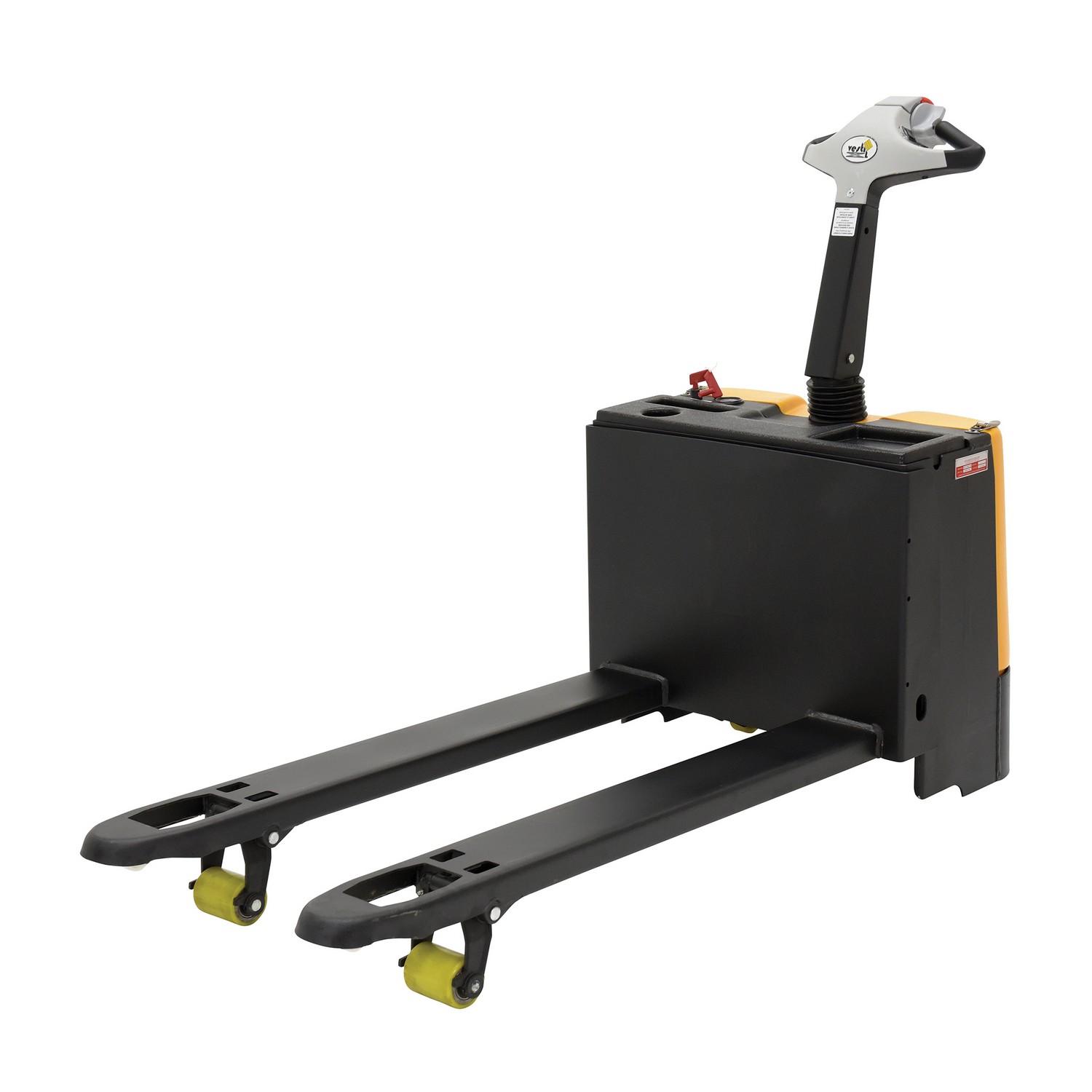

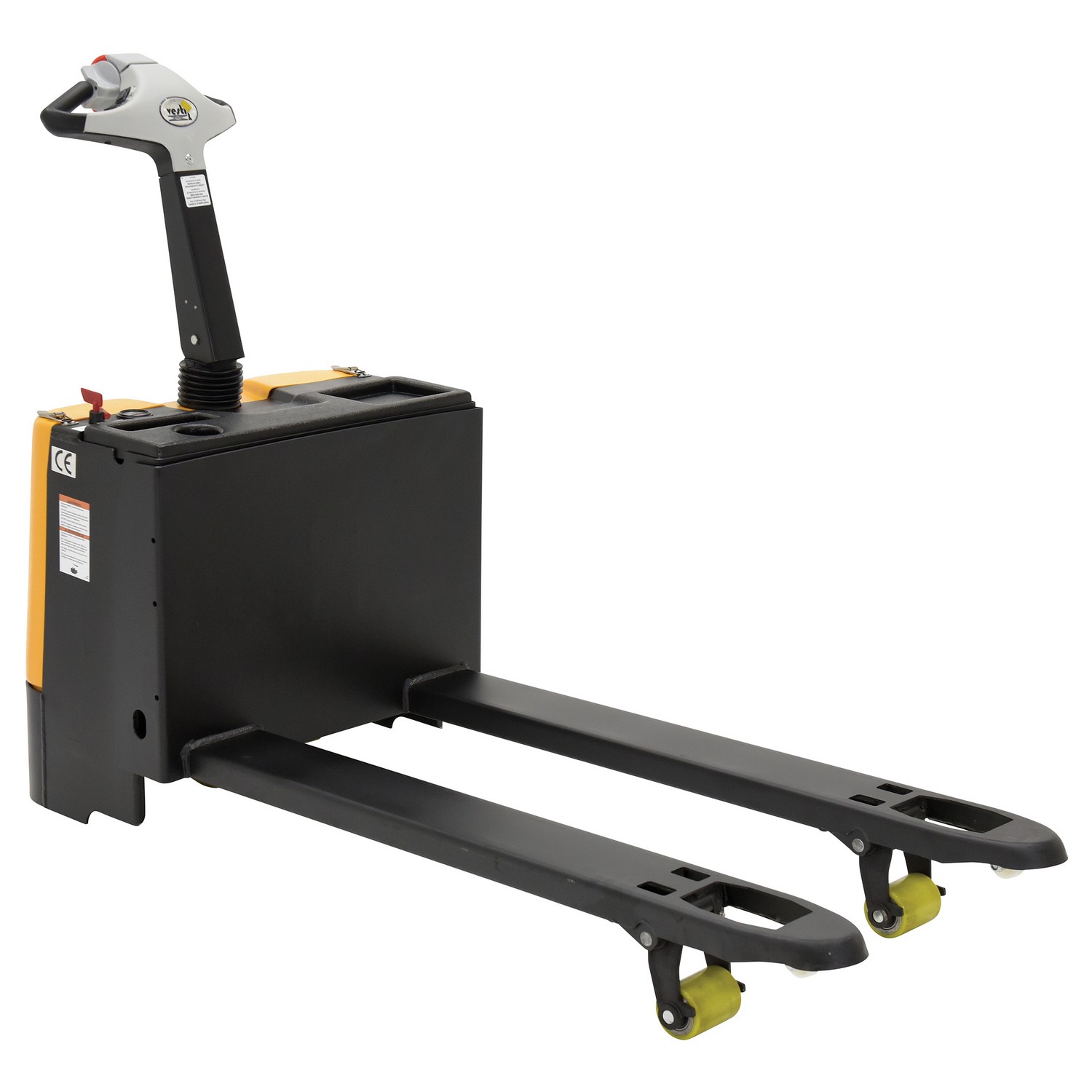

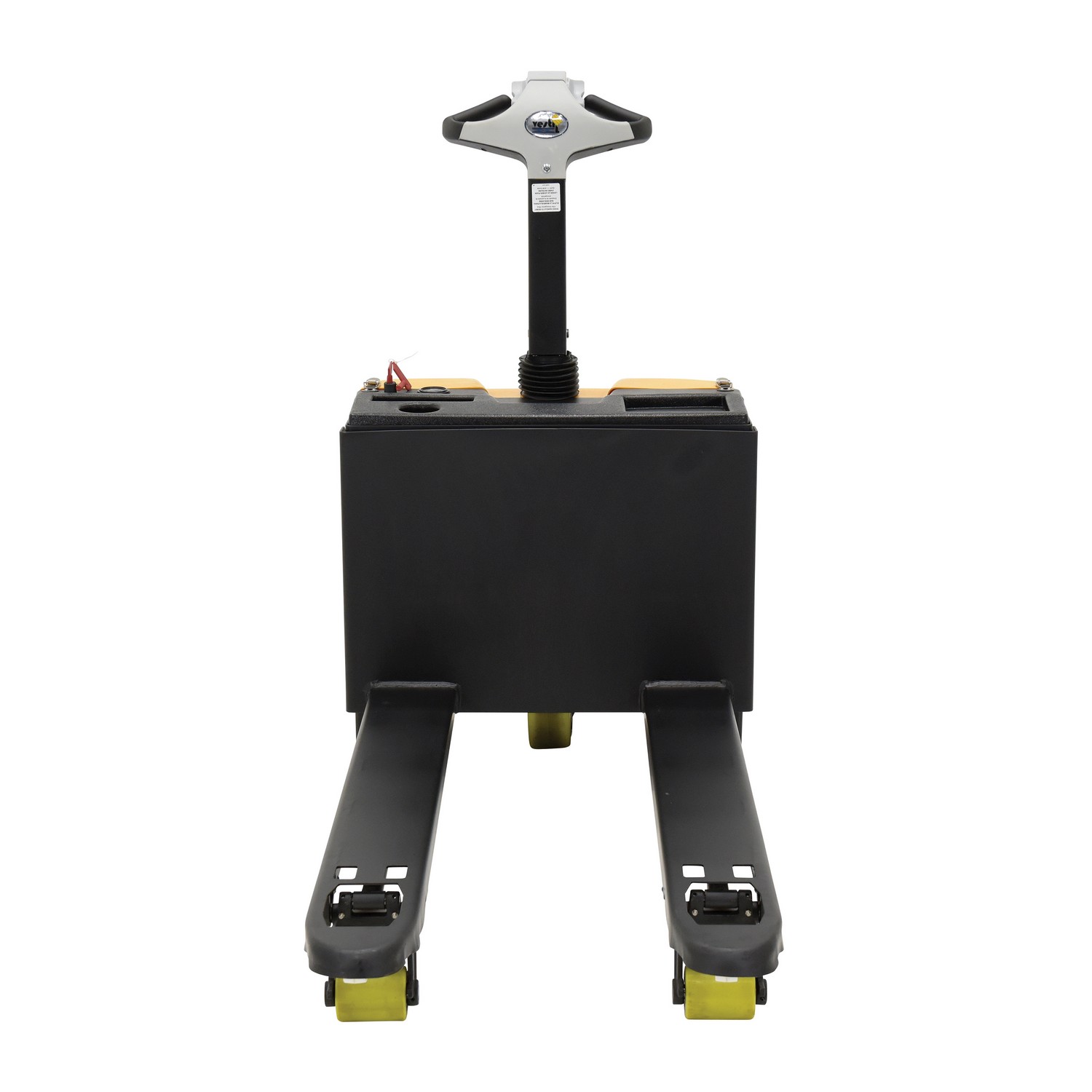

Vestil EPT-2547-30 Electric Pallet Truck 3.3K 25X48 (2)12V

Customer Reviews
SKU:
VESEPT-2547-30
Weight:
742.00 LBS



$7,677.47
/ Each

Description

The Fully Powered Electric Pallet Truck has an easy and quick operation. The unit raises and lowers loads with a push of a button. It can maneuver loads in warehouses and trailers. The reinforced welded forks have adjustable tie-rods that provide long service. The high-torque DC drive and lift motors handle heavy-duty jobs. Pallet truck includes integral battery charger, battery level gauge and key switch. The truck rolls smoothly on poly-on-steel, steer and load wheels. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the Proprietary Safety-enhancing Emergency Reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.



Save with The Safety Source

At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.

Product Features:

  • Fully-powered pallet truck makes movement of pallets quick and easy
  • Includes fingertip RAISE and LOWER buttons for operator convenience
  • Safety belly reverse button improves worker safety
  • Easy-to-operate throttle for forward and reverse direction



Product Specifications:

Color Yellow
Material Steel
Uniform Capacity (lb.) 3300
Overall Fork Width (in.) 25
Overall Fork Length (in.) 48
Lowered Height (in.) 3.1
Raised Height (in.) 7.8
Battery Type (2) 12 Volt
DC Motor Voltage 24
Battery Charger 120V Input, 24V/10 amp
Turn Radius (in.) 59.1
Drive KW 0.7
Lift Motor KW 1.3
Operation at Full Charge (hours) 3 to 4
Operation When Used Intermittently (hours) 8
Drive Wheel Diameter (in.) 10
Drive Wheel Width (in) 3-1/8
Load Roller Diameter (in.) 2-3/4
Load Roller Width (in.) 3
Stabilizing Roller Diameter (in.) 1-1/2
Stabilizing Roller Width (in.) 3
Wheel & Roller Type Poly on Steel
Individual Fork Width (in.) 6
Loaded Travel Speed (mph) 3.2
Unloaded Travel Speed (mph) 3.8
Package Size Each
SKU:
VESEPT-2547-30
Weight:
742.00 LBS
Color:
Yellow
Material:
Steel
Uniform Capacity (lb.):
3300
Overall Fork Width (in.):
25
Overall Fork Length (in.):
48
Lowered Height (in.):
3.1
Raised Height (in.):
7.8
Battery Type:
(2) 12 Volt
DC Motor Voltage:
24
Battery Charger:
120V Input, 24V/10 amp
Turn Radius (in.):
59.1
Drive KW:
0.7
Lift Motor KW:
1.3
Operation at Full Charge (hours):
3 to 4
Operation When Used Intermittently (hours):
8
Drive Wheel Diameter (in.):
10
Drive Wheel Width (in):
3-1/8
Load Roller Diameter (in.):
2-3/4
Load Roller Width (in.):
3
Stabilizing Roller Diameter (in.):
1-1/2
Stabilizing Roller Width (in.):
3
Wheel & Roller Type:
Poly on Steel
Individual Fork Width (in.):
6
Loaded Travel Speed (mph):
3.2
Unloaded Travel Speed (mph):
3.8
Package Size:
Each
