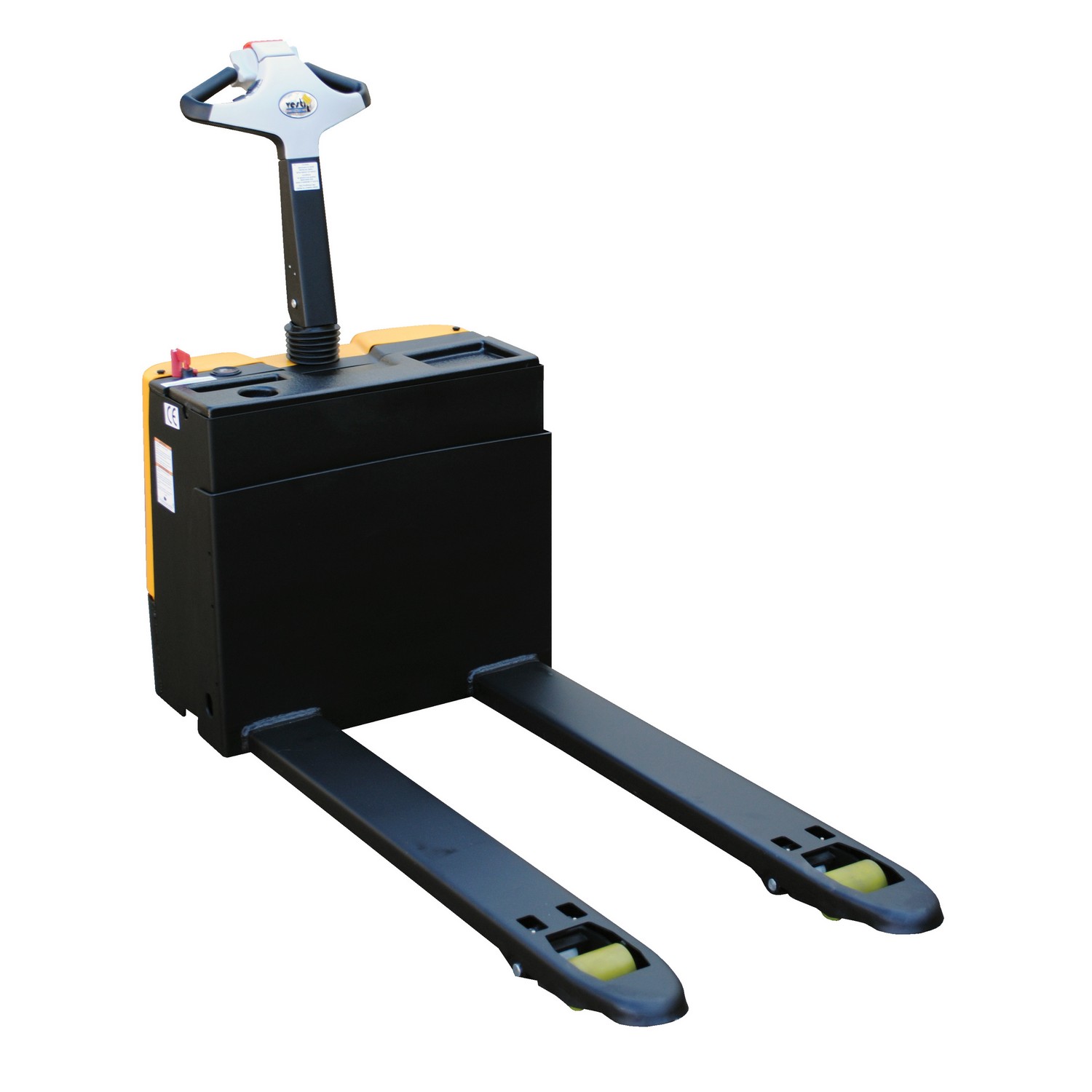

The Vestil VESEPT-2047-30 is a fully powered electric pallet truck designed to move pallets quickly and with minimal effort in warehouses, trailers, or load transfer areas. It combines a compact front-end design with a heavy-duty lift and drive capability, enabling operators to raise, lower, and transport loads with fingertip controls. The unit is configured for continuous, hands-on control, with an ergonomic handle that provides easy throttle operation for forward and reverse movement, along with lift and lower buttons for precise load handling. An integral battery charger and battery level gauge are included for on-site charging and monitoring, while the built-in electromagnetic disc brake and dead-man safety feature support controlled stopping and operator protection during use.
Constructed with welded steel forks, the VESEPT-2047-30 features adjustable tie-rods for fork stability under heavy loads. The forks measure 20 inches in overall width and 47 inches in length, with a 3.3k lb maximum uniform capacity, and a lowered height of 3.2 inches and raised height of 7.8 inches to accommodate standard pallet configurations. The drive system employs a 24-volt DC motor (0.7 kW drive) and a 1.3 kW lift motor, powered by two 12-volt batteries and a 120V input charger rated at 24V/10A. Operational runtimes vary by use: approximately 3–4 hours on a full charge for continuous work, and up to 8 hours with intermittent use. The unit rolls on poly-on-steel wheels, with a 52-inch turn radius to navigate aisles and loading areas.
This pallet truck is suited for applications requiring quick, controlled pallet movement and gentle stacking or retrieval in constrained spaces. When planning deployments, consider pallet size compatibility (20" overall fork width, 47" fork length), floor conditions, and charging logistics to minimize downtime. The equipment’s form factor, wheel type, and brake system influence maneuverability and stopping behavior, especially in busy facilities or trailers where space is limited.
Features:
- Fully-powered pallet truck for quick, easy movement of pallets
- Fingertip RAISE and LOWER buttons for operator convenience
- Safety belly reverse button enhances worker safety
- Easy-to-operate throttle for forward and reverse directions
- Two 12V batteries with 24V drive system
- 32-hour potential runtime indicators: 3–4 hours at full charge, up to 8 hours intermittent
- Color:
- Black/Yellow
- Material:
- Steel
- Uniform Capacity (lb.):
- 3300
- Overall Fork Width (in.):
- 20
- Overall Fork Length (in.):
- 47
- Lowered Height (in.):
- 3.2
- Raised Height (in.):
- 7.8
- Battery Type:
- (2) 12 Volt
- DC Motor Voltage:
- 24
- Battery Charger:
- 120V Input, 24V/10 amp
- Turn Radius (in.):
- 52
- Drive KW:
- 0.7
- Lift Motor KW:
- 1.3
- Operation at Full Charge (hours):
- 3 to 4
- Operation When Used Intermittently (hours):
- 8
- Drive Wheel Diameter (in.):
- 10
- Drive Wheel Width (in):
- 3-1/8
- Load Roller Diameter (in.):
- 2-3/4
- Load Roller Width (in.):
- 3
- Stabilizing Roller Diameter (in.):
- 1-1/2
- Stabilizing Roller Width (in.):
- 3
- Wheel & Roller Type:
- Poly on Steel
- Individual Fork Width (in.):
- 6
- Package Size:
- Each
