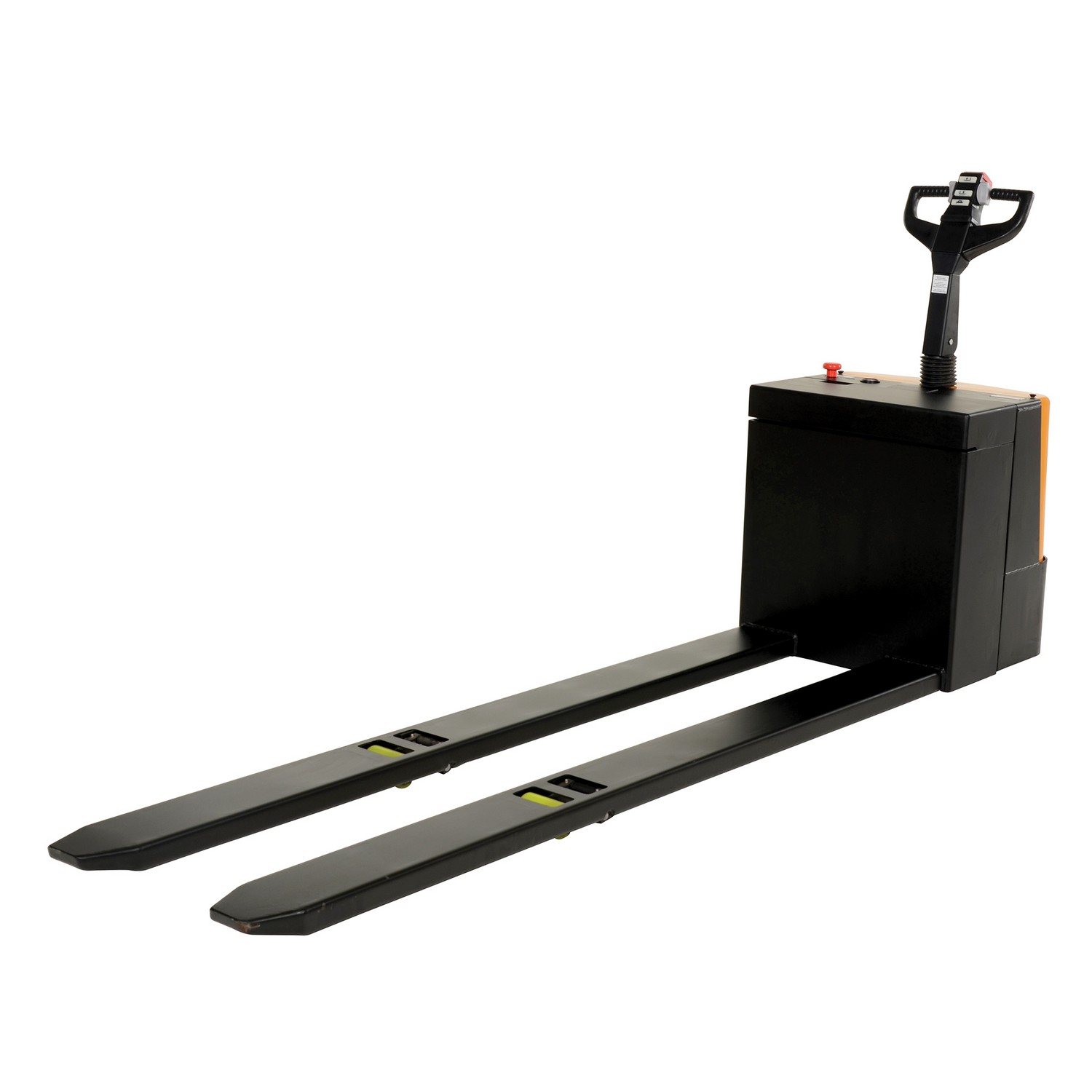

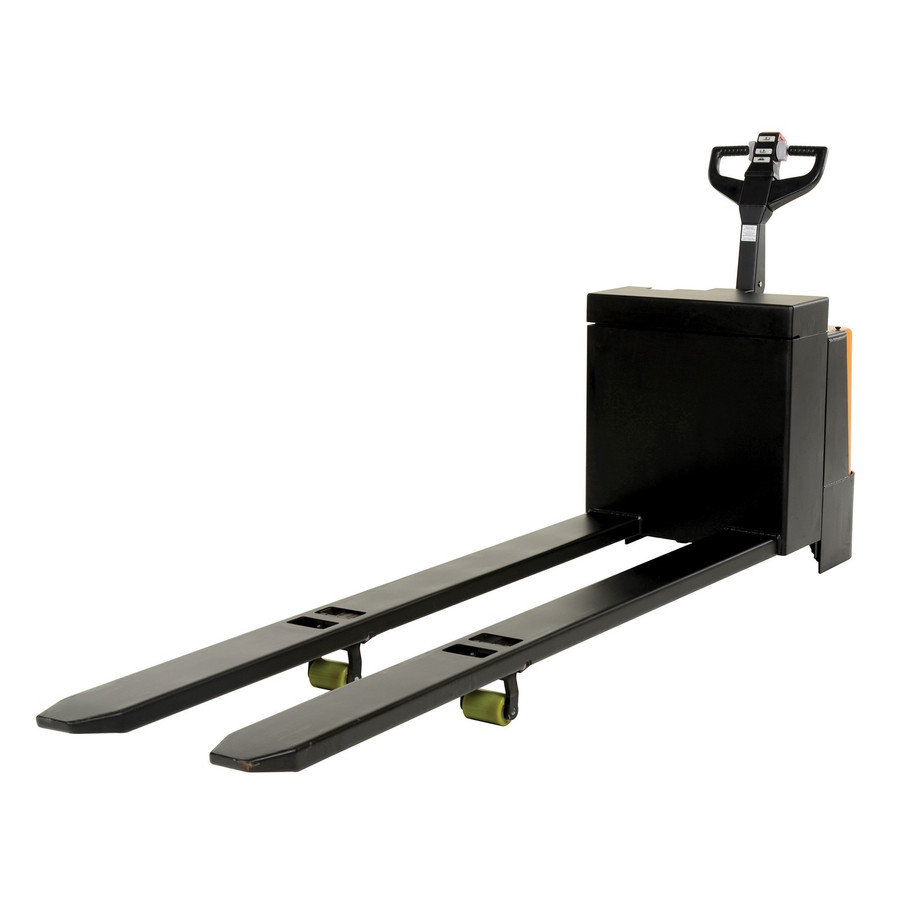

The Vestil VESEPT-2796-45 is a fully powered electric pallet truck designed to move pallets quickly and with minimal manual effort in warehouses and trailers. It combines a 4,500 lb (uniform) load capacity with a compact 27-inch by 96-inch fork profile, enabling efficient handling of standard palletized loads. The unit features an integrated battery system (four 6-volt batteries) and a 24V drive and lift motor setup, supported by a 120V input charger, which facilitates on-site charging and reduced downtime between moves. An ergonomic control handle provides fingertip raise and lower actions, along with a throttle that offers continuous forward and reverse speed adjustment, contributing to precise load maneuvering in tight spaces. The safety-forward design includes an emergency reverse function embedded in the control belly switch and an electromagnetic disc brake with a dead-man feature, contributing to operator protection during operation. A stand-on riding platform is included and can be flipped up when not in use, enabling flexibility in how operators engage with the truck depending on load weight and space constraints.
Features:
- Fully-powered pallet truck for quick, effortless pallet movement
- Fingertip RAISE and LOWER controls for operator convenience
- Safety belly reverse button enhances worker safety
- Simple forward/reverse throttle for precise control
- 4,500 lb uniform capacity with 27" fork width and 96" fork length
- 24V DC motor system with (4) 6V batteries and 120V charger
- Color:
- Black
- Material:
- Steel
- Uniform Capacity (lb.):
- 4500
- Overall Fork Width (in.):
- 27
- Overall Fork Length (in.):
- 96
- Lowered Height (in.):
- 3.2
- Raised Height (in.):
- 8.2
- Battery Type:
- (4) 6 Volt
- DC Motor Voltage:
- 24
- Battery Charger:
- 120V Input, 24V/20 amp
- Turn Radius (in.):
- 52
- Drive KW:
- 1.2
- Lift Motor KW:
- 1.3
- Operation at Full Charge (hours):
- 6 to 7
- Operation When Used Intermittently (hours):
- 8
- Drive Wheel Diameter (in.):
- 10
- Drive Wheel Width (in):
- 3-1/8
- Load Roller Diameter (in.):
- 2-3/4
- Load Roller Width (in.):
- 3
- Stabilizing Roller Diameter (in.):
- 1-1/2
- Stabilizing Roller Width (in.):
- 3
- Wheel & Roller Type:
- Poly on Steel
- Individual Fork Width (in.):
- 6-7/8
- Rider Platform Length (in.):
- 12
- Rider Platform Width (in.):
- 18
- Rider Platform Height (in.):
- 4-3/4
- Package Size:
- Each
