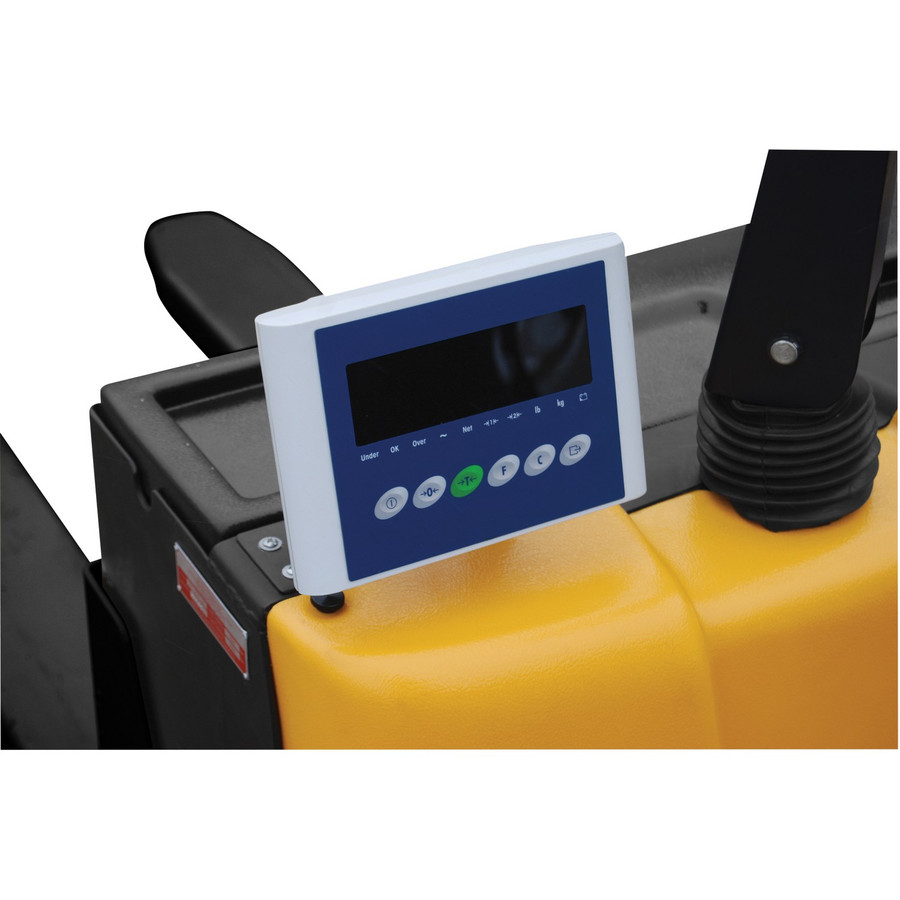

The Vestil VESEPT-2547-30-SCL Electric Pallet Truck with Scale is designed to streamline material handling by combining pallet movement with on-board weight measurement. This fully powered pallet truck enables operators to lift, move, and position pallets with minimal effort, while the integrated scale provides weight readouts directly on the truck’s LCD display. Weight data can be captured in one-pound increments, with tare and net/gross functions available via the scale’s control keys, and the scale head offers an RS232 port for optional serial printing. The unit runs on two 12-volt batteries and includes a 120V charger, delivering practical operation that supports quick decision-making during inbound and outbound freight handling.
Construction emphasizes durability and reliability in demanding warehouse environments. The fork carriage employs reinforced welded forks with adjustable tie-rods, while a high-torque DC drive motor and lift motor handle heavy-duty loads. Ergonomic fingertip controls enable precise throttle operation for forward and reverse movement, with separate raise/lower controls for load handling. A safety-focused design features an emergency reverse function and an electromagnetic disc brake with an automatic dead-man feature activated when the handle is released, contributing to operator protection during lift and transport.
Practical use scenarios include transferring mixed palletized goods in warehouses and trailers where immediate weight verification is advantageous for shipping, receiving, or inventory management. The truck’s dimensions—overall fork width 25 inches and overall fork length 47 inches—support standard pallet handling, while the 3,000 lb capacity provides a conservative working limit for many common loads. With a 3 to 4 hour runtime at full charge and longer intermittent-use runtimes, maintenance planning can be aligned with shift cycles. Typical maintenance considerations include battery charging intervals and keeping drive and lift components clear of debris to preserve performance and safety.
Features:
- Fully-powered pallet truck for quick pallet movement
- Built-in scale to monitor load weight
- Fingertip RAISE and LOWER controls
- Safety belly reverse button for operator safety
- Forward/reverse throttle for easy maneuvering
- Two 12V batteries with 24V drive and 120V charger
- 30-3K capacity with scale integration
- Color:
- Black/Yellow
- Material:
- Steel
- Uniform Capacity (lb.):
- 3000
- Overall Fork Width (in.):
- 25
- Overall Fork Length (in.):
- 47
- Lowered Height (in.):
- 3-3/8
- Raised Height (in.):
- 8
- Battery Type:
- (2) 12 Volt
- DC Motor Voltage:
- 24
- Battery Charger:
- 120V Input, 24V/10 amp
- Turn Radius (in.):
- 52
- Drive KW:
- 0.7
- Lift Motor KW:
- 1.3
- Operation at Full Charge (hours):
- 3 to 4
- Operation When Used Intermittently (hours):
- 8
- Drive Wheel Diameter (in.):
- 10
- Drive Wheel Width (in):
- 3-1/8
- Load Roller Diameter (in.):
- 2-3/4
- Load Roller Width (in.):
- 3
- Stabilizing Roller Diameter (in.):
- 1-1/2
- Stabilizing Roller Width (in.):
- 3
- Wheel & Roller Type:
- Poly on Steel
- Individual Fork Width (in.):
- 6
- Scale Length (in.):
- 6
- Scale Width (in.):
- 8-1/2
- Scale Height (in.):
- 5
- Number of Function Keys:
- 5
- Scale Accuracy of Applied Load (Percent):
- 1
- Package Size:
- Each
