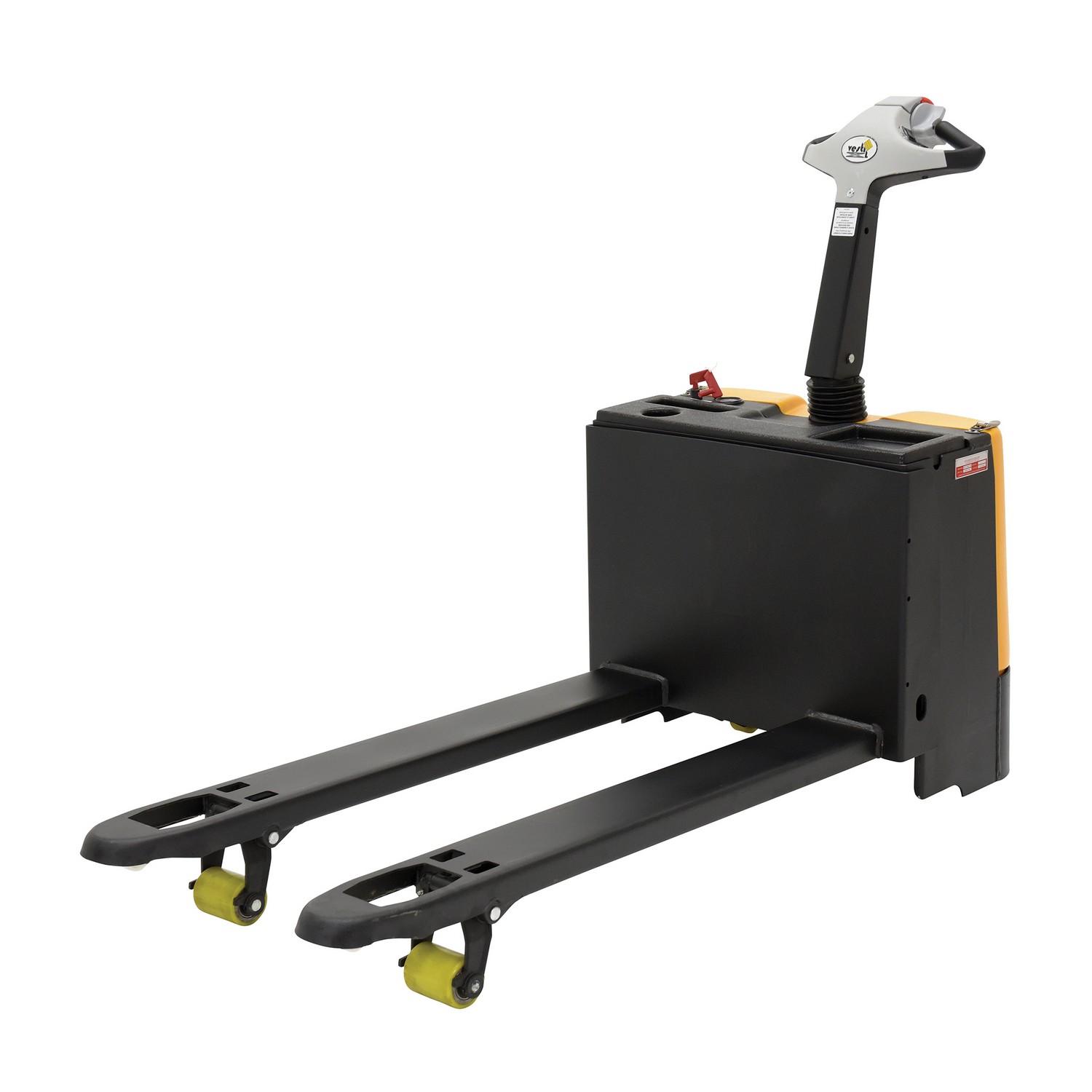

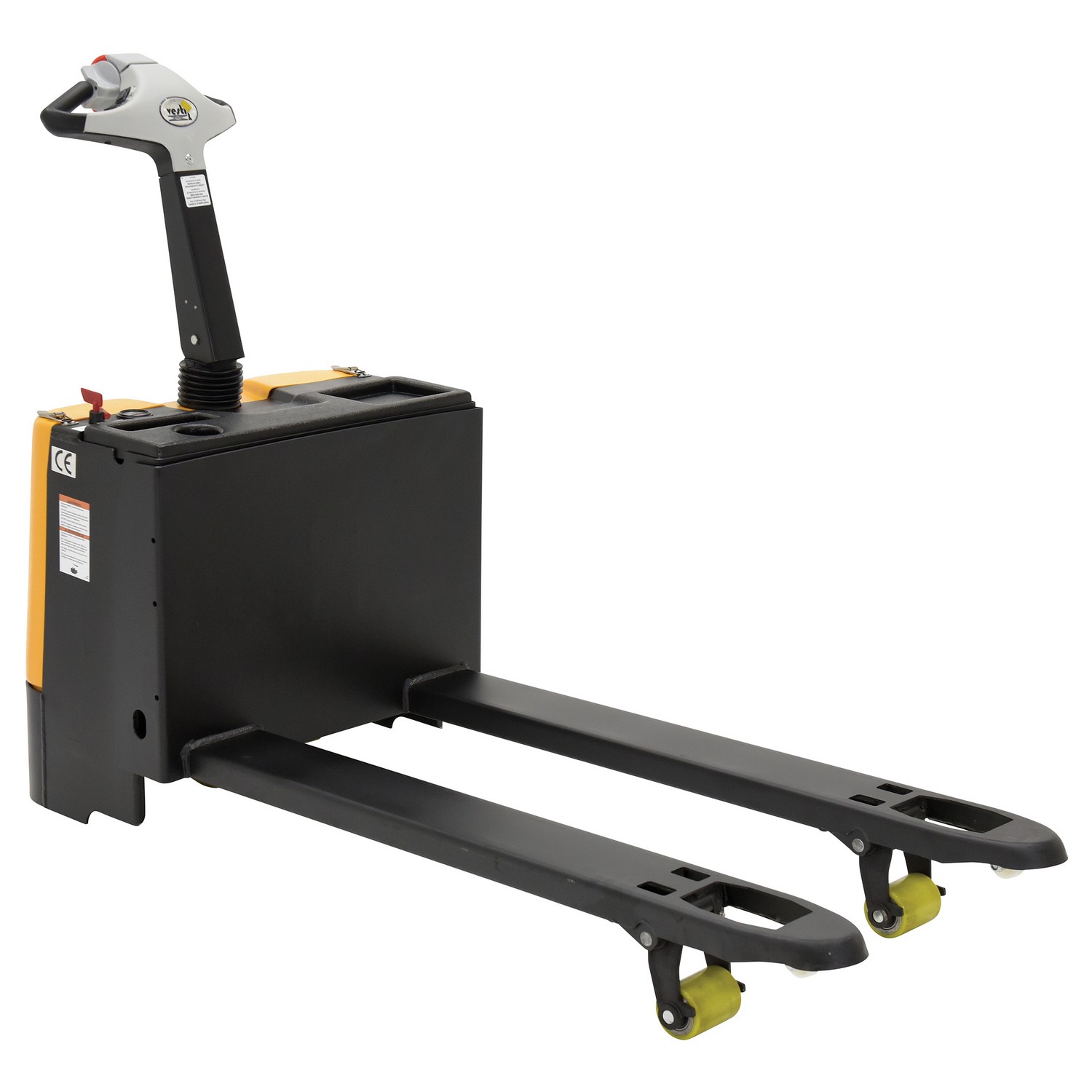

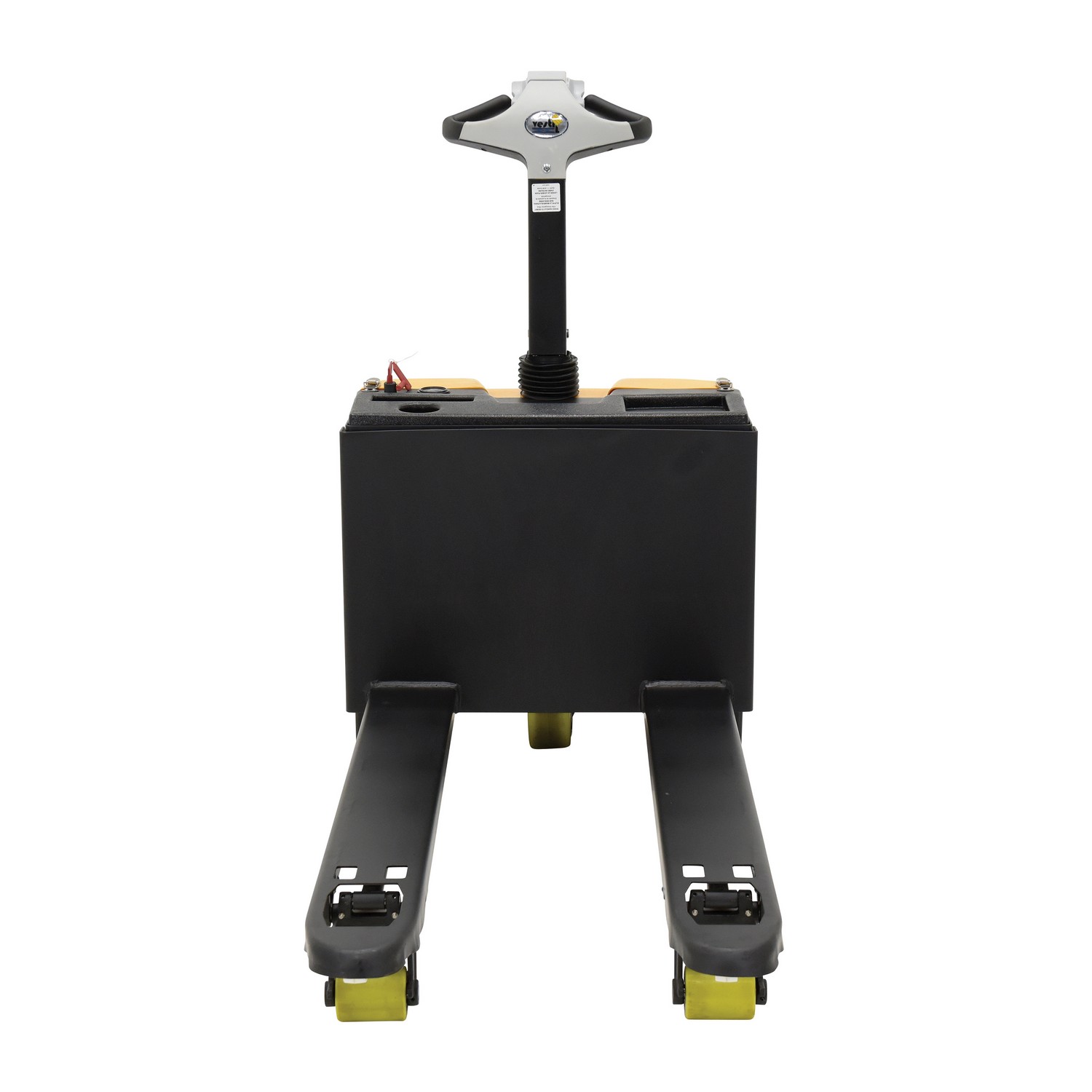

The Vestil EPT-2547-30 is a fully powered electric pallet truck designed to move pallets quickly and with minimal manual effort. Its dual 12-volt batteries provide a 24-volt DC drive system, enabling steady travel and responsive lift operations, making it suitable for routine load handling in warehouses and trailers. The unit features fingertip raise and lower controls and an ergonomic handle with easy throttle operation, allowing operators to adjust direction and lift without shifting grip. A built-in electromagnetic disc brake with an automatic dead-man feature enhances control and helps prevent unintended movement when the operator release the handle.
Constructed with welded steel forks and a 25-inch fork width by 48-inch fork length, the truck can accommodate standard pallet dimensions while maintaining durability through reinforced linkage and adjustable tie-rods for long service life. The design includes poly-on-steel wheels for smoother rolling, an integral battery charger, and a battery level gauge, supporting dependable operation across shifts. An emergency reverse function adds an extra layer of safety by reversing the unit upon activation, prompting reset after use to return to normal operation.
Typical use cases involve quick transport of loaded pallets in warehouses, trailers, or dock areas where space permits a 59.1-inch turning radius. With a 3,300 lb capacity and a lowered height of 3.1 inches up to a raised height of 7.8 inches, this pallet truck balances load stability with compact lifting capability. Operational runtimes vary from 3–4 hours on a full charge under continuous use and longer runtimes under intermittent use, with standard 24V/10A charging ensuring the battery can be maintained between shifts. This model uses standard components compatible with Vestil’s pallet truck line and ships as a single unit per package.
Features:
- Fully-powered pallet truck for quick pallet movement
- Fingertip RAISE and LOWER controls for convenience
- Safety belly reverse button enhances operator safety
- Easy-to-operate throttle for forward/reverse movement
- Sturdy steel construction with 25" fork width and 48" fork length
- 2×12V batteries, 24V drive, 0.7 kW drive, 1.3 kW lift
- Color:
- Yellow
- Material:
- Steel
- Uniform Capacity (lb.):
- 3300
- Overall Fork Width (in.):
- 25
- Overall Fork Length (in.):
- 48
- Lowered Height (in.):
- 3.1
- Raised Height (in.):
- 7.8
- Battery Type:
- (2) 12 Volt
- DC Motor Voltage:
- 24
- Battery Charger:
- 120V Input, 24V/10 amp
- Turn Radius (in.):
- 59.1
- Drive KW:
- 0.7
- Lift Motor KW:
- 1.3
- Operation at Full Charge (hours):
- 3 to 4
- Operation When Used Intermittently (hours):
- 8
- Drive Wheel Diameter (in.):
- 10
- Drive Wheel Width (in):
- 3-1/8
- Load Roller Diameter (in.):
- 2-3/4
- Load Roller Width (in.):
- 3
- Stabilizing Roller Diameter (in.):
- 1-1/2
- Stabilizing Roller Width (in.):
- 3
- Wheel & Roller Type:
- Poly on Steel
- Individual Fork Width (in.):
- 6
- Loaded Travel Speed (mph):
- 3.2
- Unloaded Travel Speed (mph):
- 3.8
- Package Size:
- Each
