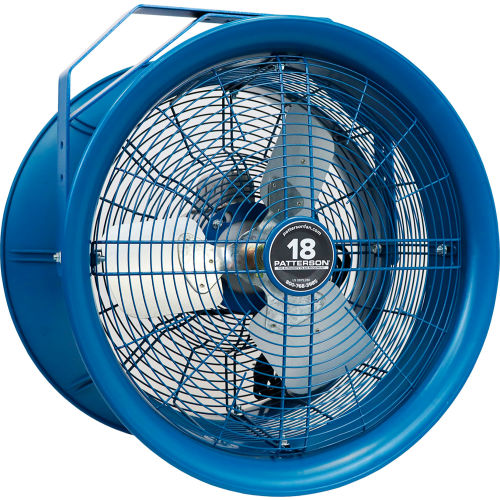

Patterson Fan H18B 18” High-Velocity Industrial Fan w/ Yoke Mount, 230/460V, 3,800 CFM, 1/2 HP, 3-Phase

Customer Reviews
SKU:
PATH18B
Weight:
44.00 LBS



$835.00
/ Each

Description

Patterson's 18 inch fan has a 80 foot air throw and is ideal for pick module, short trailer and multiple work station cooling. Built for performance, superior distance of air throw and durability. The fan is housed in high impact polypropylene with welded steel wire finger guards for enhanced safety.



Save with The Safety Source

At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.

Product Features:

  • Direct drive, maintenance-free motor with Sealed bearings (Totally Enclosed)
  • Side-vented barrel design promotes optimum air flow
  • Fan blades engineered for maximum air velocity and efficiently smooth operation
  • Powder coated, corrosion Resistant OSHA compliant recessed finger guards
  • Deep venturi inlet/ outlet design of barrel creates even column of non-disturbed air flow
  • Limited warranty of 2 years

Product Specifications:

Width 24 in
Depth 16 in
Height 24 in
Weight 44 lbs
Cooling Area 2700 in²
Fan Diameter 18 in
Distance Air Throw 80 ft
Max Ambient Temperature 104 °F
Assembly Required No
Fan Type Industrial
Number of Speeds 1
Number of Blades 3
Motor Type Totally Enclosed Air Over (TEAO)
Mounting Location Column, Free Standing, or Wall
Wattage 380 W
Material High Impact Polypropylene
Phase 3
Manufacturers Part Number H18B
Blade Type Galvanized Aluminum
Brand Patterson Fan
Type High Velocity Fan
RPM 1725 rpm
CFM 3800 CFM
Horsepower 1/2 HP
Color Blue
Drive Type Direct Drive
Hertz 60 Hz
Amperage 1.91 A
Includes Yoke Mount Bracket
Voltage 208-230 / 460 V
Description Industrial High Velocity Fan
Package Quantity 1
Oscillating/Non Oscillating Non-Oscillating
Decibels 71.2
Package Size Each
SKU:
PATH18B
Weight:
44.00 LBS
Width:
24 in
Depth:
16 in
Height:
24 in
Weight:
44 lbs
Cooling Area:
2700 in²
Fan Diameter:
18 in
Distance Air Throw:
80 ft
Max Ambient Temperature:
104 °F
Assembly Required:
No
Fan Type:
Industrial
Number of Speeds:
1
Number of Blades:
3
Motor Type:
Totally Enclosed Air Over (TEAO)
Mounting Location:
Column, Free Standing, or Wall
Wattage:
380 W
Material:
High Impact Polypropylene
Phase:
3
Manufacturers Part Number:
H18B
Blade Type:
Galvanized Aluminum
Brand:
Patterson Fan
Type:
High Velocity Fan
RPM:
1725 rpm
CFM:
3800 CFM
Horsepower:
1/2 HP
Color:
Blue
Drive Type:
Direct Drive
Hertz:
60 Hz
Amperage:
1.91 A
Includes:
Yoke Mount Bracket
Voltage:
208-230 / 460 V
Description:
Industrial High Velocity Fan
Package Quantity:
1
Oscillating/Non Oscillating:
Non-Oscillating
Decibels:
71.2
Package Size:
Each
