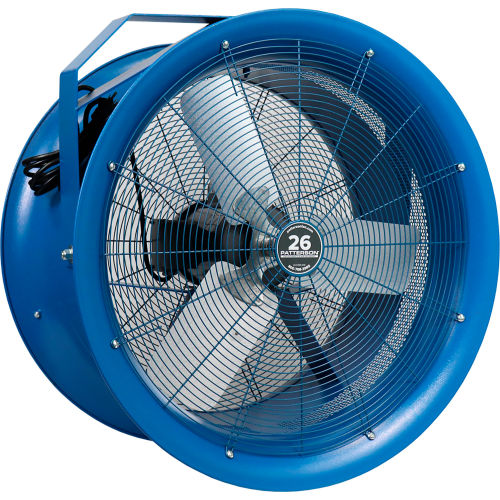

Patterson’s H26B 26-inch high-velocity industrial fan is designed for robust air movement in demanding settings. This unit delivers a substantial air throw, capable of moving large volumes of air up to 150 feet indoors, making it suitable for personnel areas, process cooling, equipment cooling, and general facility circulation. The fan is built for industrial performance with a direct-drive, maintenance-free motor and sealed bearings housed in a Totally Enclosed Air Over (TEAO) configuration, which helps protect internal components in dusty or humid environments.
A key feature is the side-vented barrel design and deep venturi inlet/outlet that promote an even column of non-disturbed air flow, reducing turbulence and increasing efficiency. The blades are engineered to maximize air velocity while maintaining smooth operation, and the galvanized aluminum blades are paired with a galvanized steel body finished in powder-coated blue for corrosion resistance. The unit includes OSHA-compliant recessed finger guards to improve safety without compromising airflow. The fan is supplied with a yoke mount bracket for flexible installation options and supports multiple mounting configurations (column, free-standing, or wall).
Operational details indicate a 1 HP motor running on 208-230/460 V at 60 Hz, 3-phase, with a single speed and a 26-inch diameter wheel rotating at 1,725 RPM. It draws about 3.5 A and consumes roughly 1,394 watts. This high-velocity fan is designed for industrial environments where reliable, high-volume air movement is necessary, and it carries a two-year limited warranty. When planning use, consider its maximum ambient temperature rating of 104°F and its stated airflow of 7,650 CFM to ensure the unit meets your cooling and circulation requirements.
Features:
- Direct-drive, maintenance-free TEAO motor with sealed bearings
- Side-vented barrel design for optimum air flow
- Engineered blades for maximum velocity and smooth operation
- Powder-coated, corrosion-resistant guards with recessed finger protection
- Deep venturi inlet/outlet design for an even air column
- Includes yoke mount bracket and 2-year limited warranty
- 1 HP, 3-phase operation, 26" high-velocity fan
- Width:
- 33 in
- Depth:
- 18-1/2 in
- Height:
- 33 in
- Weight:
- 93 lbs
- Cooling Area:
- 6100 in²
- Fan Diameter:
- 26 in
- Distance Air Throw:
- 150 ft
- Max Ambient Temperature:
- 104 °F
- Assembly Required:
- No
- Fan Type:
- Industrial
- Number of Speeds:
- 1
- Number of Blades:
- 3
- Motor Type:
- Totally Enclosed Air Over (TEAO)
- Mounting Location:
- Column, Free Standing, or Wall
- Wattage:
- 1394 W
- Material:
- Steel
- Phase:
- 3
- Blade Type:
- Galvanized Aluminum
- Manufacturers Part Number:
- H26B
- Brand:
- Patterson Fan
- RPM:
- 1725 rpm
- Type:
- High Velocity Fan
- CFM:
- 7650 CFM
- Horsepower:
- 1 HP
- Color:
- Blue
- Hertz:
- 60 Hz
- Amperage:
- 3.5 A
- Drive Type:
- Direct Drive
- Voltage:
- 208-230 / 460 V
- Includes:
- Yoke Mount Bracket
- Description:
- Industrial High Velocity Fan
- Package Quantity:
- 1
- Oscillating/Non Oscillating:
- Non-Oscillating
- Decibels:
- 80.8
- Package Size:
- Each
