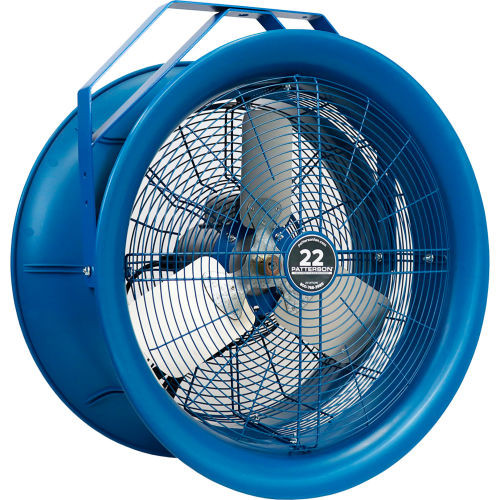

The Patterson PATH22B is a rugged 22-inch high-velocity industrial fan designed to deliver strong, directed air coverage in demanding facility environments. It is a direct-drive, three-phase unit with a TEAO (Totally Enclosed Air Over) motor, offering maintenance-free operation and reliable performance suitable for long runs or challenging spaces like pick modules, trailers, and multiple workstations. The fan is built around a high-impact polypropylene housing with corrosion-resistant, recessed finger guards and a galvanized aluminum blade set, contributing to safe and durable operation in industrial settings.
Key design features include a side-vented barrel to promote optimum airflow, a deep venturi inlet/outlet that helps produce an even, non-disturbed air column, and a 100-foot air throw suitable for distributing cool air across larger work zones. The PATH22B operates at 60 Hz with a single high-velocity speed, drawing approximately 2.3 A at 208–230/460 V, 380 W, and delivering up to 5,570 CFM. The unit is mounted via a yoke bracket and is compatible with column, free-standing, or wall mounting configurations, expanding installation flexibility to fit various facility layouts.
Practical use considerations include the high-velocity airflow designed to refresh occupied work areas quickly and its 73.6 dB acoustic level, which may be a consideration in noise-sensitive environments. The fan’s construction emphasizes durability and safety, with powder-coated finishes and reinforced guards. Maintenance is minimized due to the sealed bearings and direct-drive motor, and Patterson provides a standard two-year limited warranty on this model. Packaging is designed for installation-ready setup with the included yoke mount bracket, enabling straightforward deployment in new or retrofit cooling projects.
Features:
- Direct drive, maintenance-free motor with Sealed bearings (Totally Enclosed)
- Side-vented barrel design promotes optimum air flow
- Fan blades engineered for maximum air velocity and smooth operation
- Powder coated, corrosion resistant recessed finger guards
- Deep venturi inlet/outlet creates an even column of air
- Includes Yoke Mount Bracket for versatile mounting
- 2-year limited warranty
- Width:
- 29 in
- Depth:
- 16 in
- Height:
- 29 in
- Weight:
- 49 lbs
- Cooling Area:
- 3600 in²
- Fan Diameter:
- 22 in
- Distance Air Throw:
- 100 ft
- Max Ambient Temperature:
- 104 °F
- Assembly Required:
- No
- Fan Type:
- Industrial
- Number of Speeds:
- 1
- Number of Blades:
- 3
- Motor Type:
- Totally Enclosed Air Over (TEAO)
- Mounting Location:
- Column, Free Standing, or Wall
- Wattage:
- 380 W
- Material:
- High Impact Polypropylene
- Phase:
- 3
- Blade Type:
- Galvanized Aluminum
- Manufacturers Part Number:
- H22B
- Brand:
- Patterson Fan
- RPM:
- 1725 rpm
- Type:
- High Velocity Fan
- CFM:
- 5570 CFM
- Horsepower:
- 1/2 HP
- Color:
- Blue
- Drive Type:
- Direct Drive
- Hertz:
- 60 Hz
- Amperage:
- 2.3 A
- Includes:
- Yoke Mount Bracket
- Voltage:
- 208-230 / 460 V
- Package Quantity:
- 1
- Oscillating/Non Oscillating:
- Non-Oscillating
- Description:
- Industrial High Velocity Fan
- Decibels:
- 73.6
- Package Size:
- Each
