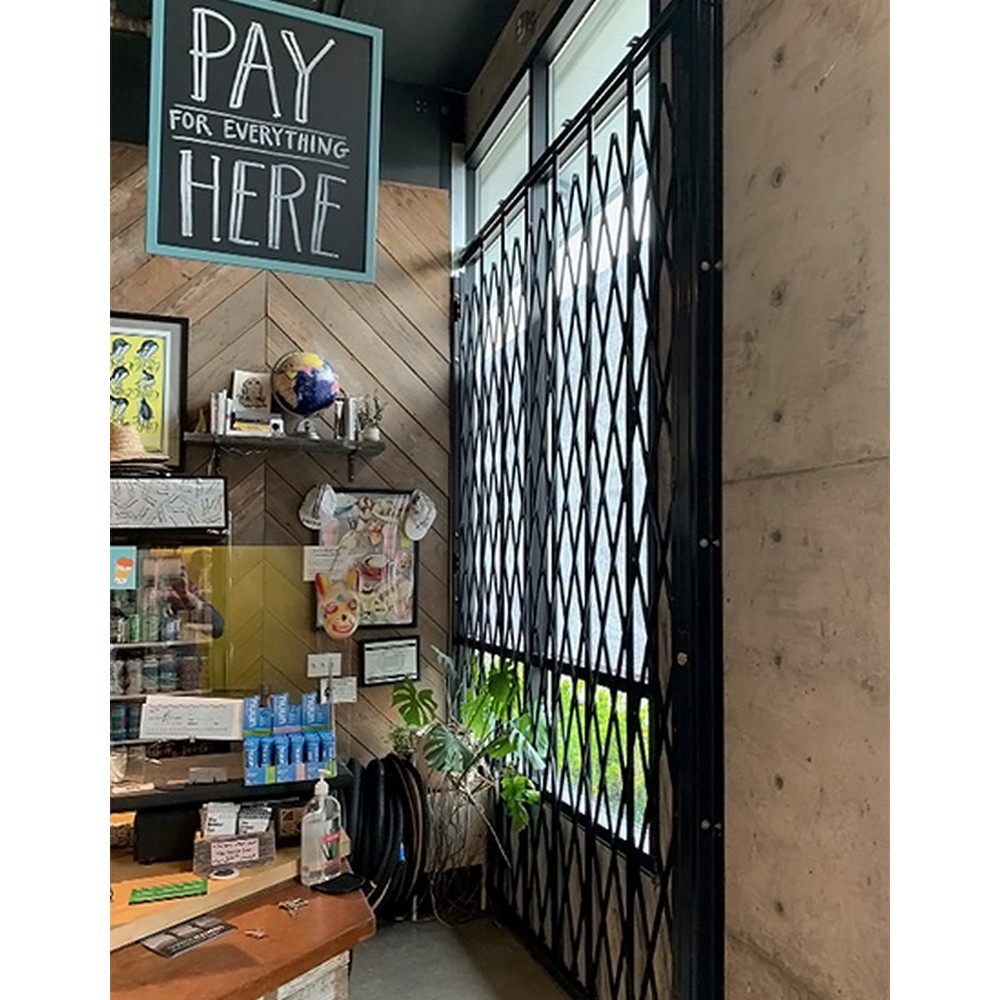

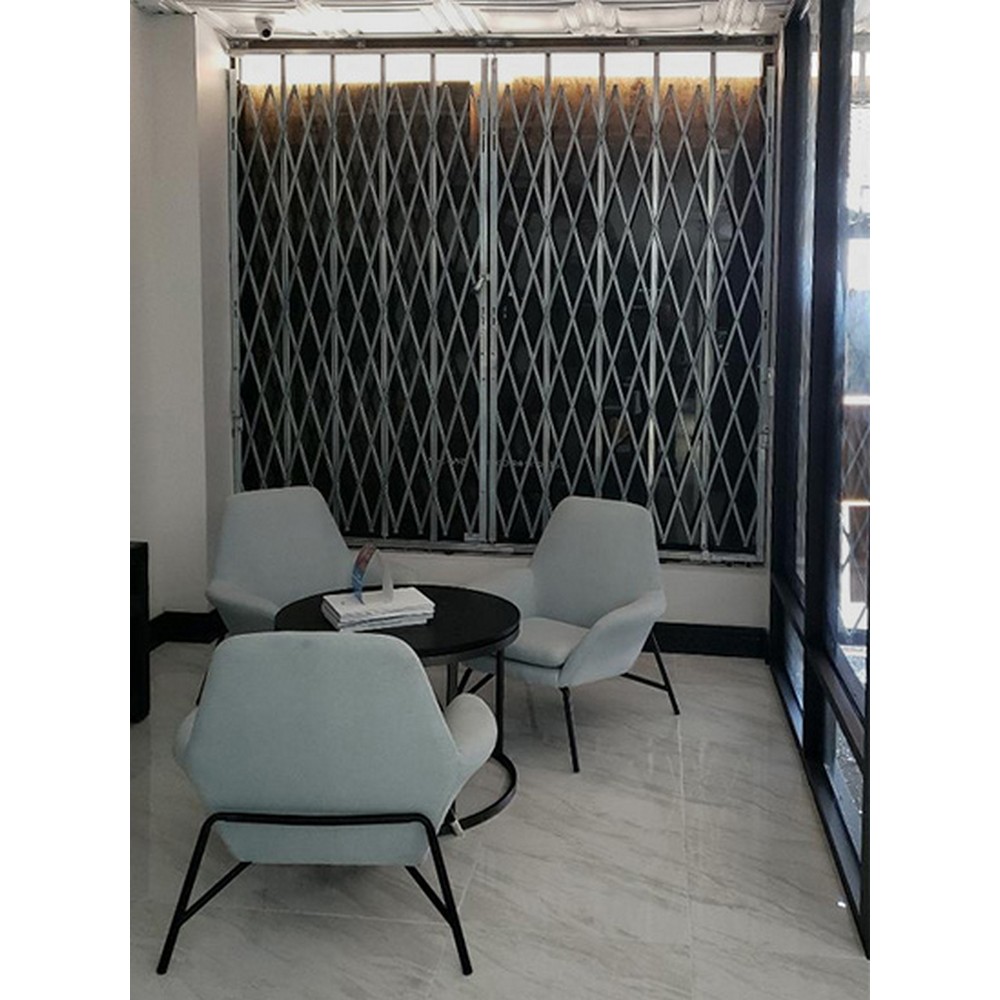

The Illinois Engineered Products HYDS675 storefront security gate provides a full-width, continuous barrier designed to secure storefronts, warehouse entries, or restricted areas within a facility. This single-gate system spans 6 feet in width and stands 7.5 feet tall, delivering a guarded perimeter that can be deployed quickly to section off spaces or shield assets. The assembly is shipped unassembled but ships with a straightforward setup process, allowing installation to be completed without specialized tools or extensive downtime. The gate combines vertical bars riding in tracks with a folding lattice design to create a robust barrier that can expand and retract smoothly as access needs change. The frame is constructed from galvanized steel with a 1-1/4 inch by 5/8 inch 14-gauge C-channel, while the lattice uses 14-gauge U-channel steel and is secured with zinc-plated rivets, providing a sturdy, weather-resistant structure. Standard features include a padlock hasp for basic security, with an integrated cylinder lock available as an optional upgrade. The unit is finished in galvanized steel, with powder coat color options available on request, and is designed to withstand indoor or outdoor conditions, including exposure to heat, rain, snow, and common industrial cleaners or chemicals. This product carries a 1-year manufacturer warranty and weighs approximately 113 pounds per unit, reflecting its substantial, rigid construction. The HYDS675 is sized specifically as a single, full-width storefront gate and includes top and bottom track variations as options for different installation environments. Practical use scenarios include securing storefront entrances, creating controlled access corridors in warehouses, or temporarily delineating restricted zones during maintenance or renovations.
Features:
- Combination of vertical bars and scissor gates for comprehensive coverage and security
- Indoor or outdoor performance; resists heat, rain, snow, and harsh industrial cleaners
- Top and bottom track styles available; other sizes offered
- Standard padlock hasp; optional integrated cylinder lock
- Fabricated from galvanized steel with durable box channel top/bottom tracks
- Ships unassembled for flexible on-site installation
- Width:
- 6'
- Height:
- 7.5'
- Max Width:
- 6'
- Folded Lattice Height:
- 7.5'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 7'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 113.0 lbs. ea.
- Package Size:
- Each
