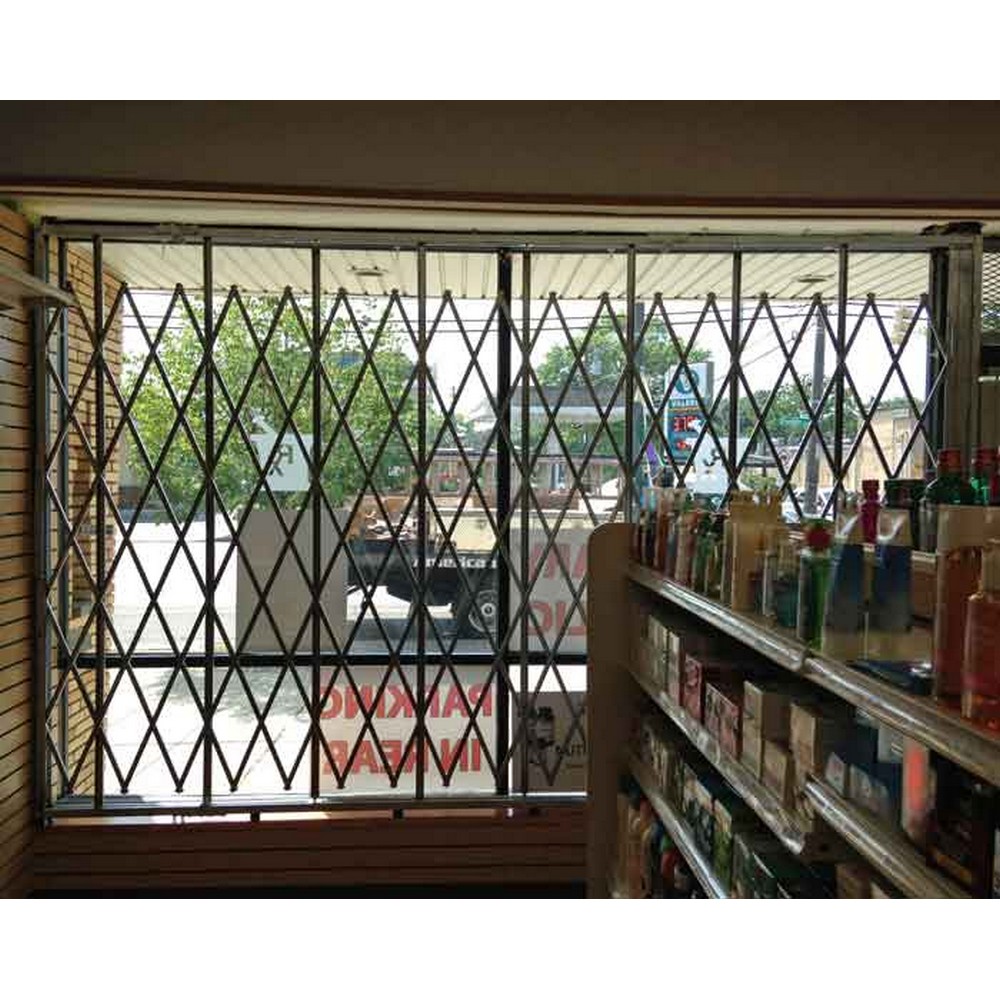

The Illinois Engineered Products HYDP1475 Storefront Security Gate is designed to secure large storefronts, warehouses, or interior work areas by providing a continuous, full-width barrier that can be deployed quickly. This gate combines vertical bars that ride in tracks with a traditional scissor lattice to offer substantial coverage and improved loss prevention across a 14' width and 7.5' height. The folding top feature and bottom track construction facilitate fast setup and smooth expansion or retraction, making it suitable for temporary or semi-permanent installations where access needs to be controlled without complex assembly.
Constructed for durability in demanding environments, the gate uses galvanized steel with 14-gauge and accompanying channel frames for structural strength. The unit ships unassembled and includes a standard padlock hasp, with an integrated cylinder lock available as an option to tailor security to your facility. Finishing options include powder coat colors on request, in addition to a galvanized finish, which helps resist corrosion from outdoor exposure, humidity, or industrial cleaners. The package is sized for a single pairing that forms a full-width barrier and weighs 263 lbs per gate, reflecting a robust, stable assembly when installed in the appropriate track framework.
This storefront gate is suitable for indoor or outdoor use where a wide, discrete barrier is needed to separate spaces, deter unauthorized access, or shield inventory and personnel. Consider compatible configurations with the top and bottom track options and other sizes offered by Illinois Engineered Products to match your doorway or storefront geometry. Assembly is required, and proper installation of tracks and supports is essential to ensure reliable operation and long-term performance.
Features:
- Combination of vertical bars and scissor gates for full coverage
- Versatile for indoor or outdoor use under harsh conditions
- Top and bottom track options with additional sizes available
- Sturdy 1-1/4" x 5/8" 14 gauge C-channel frame with rubber grommet feet
- 14 gauge lattice with reinforced rivets for durability
- Padlock hasp included; integrated cylinder lock optional
- Galvanized steel finish with optional powder coat colors
- Width:
- 14'
- Height:
- 7.5'
- Max Width:
- 14'
- Folded Lattice Height:
- 7.5'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 7'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 263.0 lbs. ea.
- Package Size:
- Each
