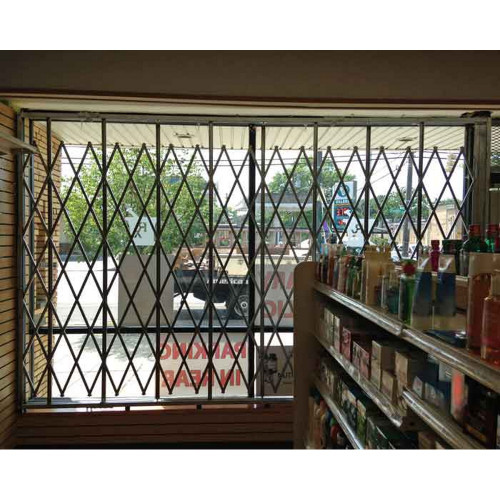

The Illinois Engineered Products HYDP1675 storefront security gate provides a full-width, continuous barrier designed to secure storefronts, warehouse entrances, or off-limit internal areas. This two-way gate configuration combines vertical bars that ride in tracks with a traditional scissor lattice, delivering a broad coverage solution that can be deployed quickly and rolled smoothly as it expands or retracts. The unit is specified at a 16 ft width and 7.5 ft height, creating a substantial physical boundary while maintaining visibility through the lattice design.
Constructed from galvanized steel with a 14 ga frame and 14 ga lattice components, the system uses a 1-1/4 in x 5/8 in 14-gauge C-channel for the frame and 3/8 in x 3/4 in 14-gauge U-channel for the lattice, with zinc-plated rivets and rubber grommet feet to minimize floor wear. The top is a folding track style and the bottom track is similarly configured, offering a flexible setup that can be installed with relative ease and adjusted to fit different storefront configurations. A padlock hasp is included as standard, with an integrated cylinder lock option available, enhancing control over access.
This storefront gate is designed for both indoor and outdoor use, capable of withstanding typical industrial conditions, including exposure to heat, rain, snow, and common cleaners or chemicals encountered in facilities maintenance. It ships unassembled and requires assembly by the purchaser. The system weighs roughly 300 lb per unit and is offered with a one-year manufacturer warranty. Appropriate sizing notes indicate a maximum width of 16 ft and a folded lattice height of 7.5 ft, with expansion up to the specified width, making it suitable for securing larger entryways or passageways in semi-permanent installations.
Features:

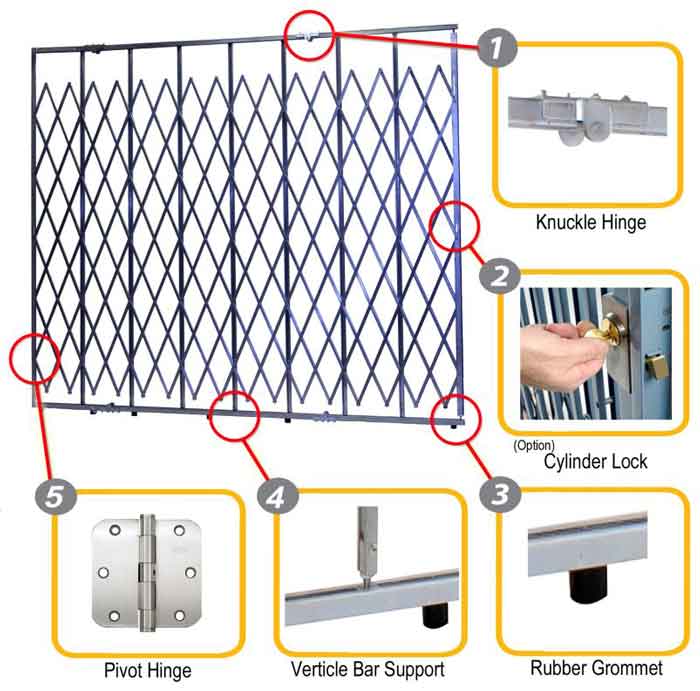

- Combination of vertical bars and scissor gates for full coverage
- Indoor and outdoor durability against weather and chemicals
- Folding top frame style with bottom track option
- Galvanized steel construction with optional powder coat finishes
- Padlock hasp standard; integrated cylinder lock optional
- Ships unassembled for easy transport
- Sturdy 1-1/4" x 5/8" 14 gauge C-channel frame with reinforced lattice
- Width:
- 16'
- Height:
- 7.5'
- Max Width:
- 16'
- Folded Lattice Height:
- 7.5'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 7'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 300.0 lbs. ea.
- Package Size:
- Each
