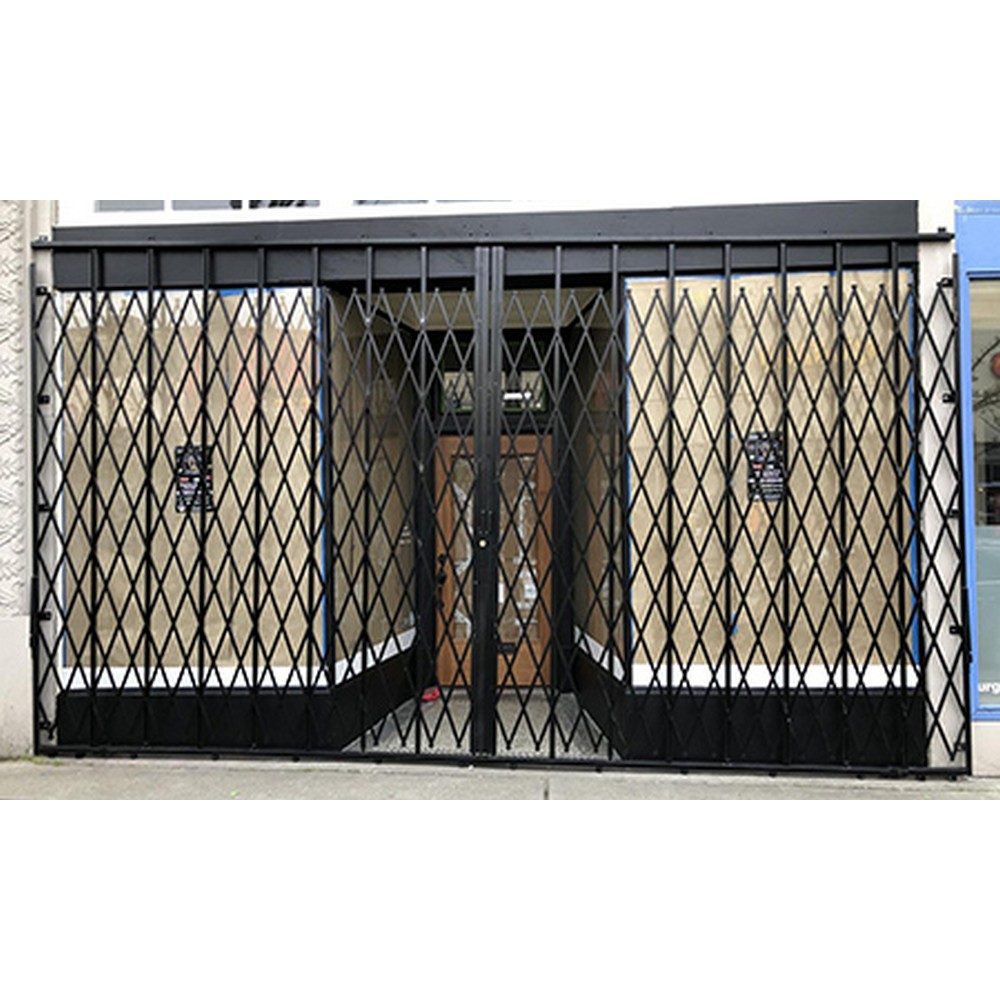

The Illinois Engineered Products HYDS575 Storefront Security Gate is a full-width, single-gate deterrent designed to section off storefronts and warehouse areas quickly and securely. With a width of 5 feet and a height of 7.5 feet, this gate uses a combination of vertical bars that ride in tracks with a folding top and bottom lattice to provide continuous coverage and practical reach for securing open spaces. The unit ships unassembled and weighs 94.0 lbs, reflecting a robust 14-gauge steel construction that’s galvanized and available in powder-coated colors on request. A padlock hasp comes standard, and an integrated cylinder lock is optional, giving you flexibility in how you lock down the entry point.
Construction details emphasize durability in varied conditions: the framework consists of 1-1/4" x 5/8" 14-gauge C-channel steel with rubber grommet feet, while the lattice is formed from 14-gauge U-channel steel with zinc-plated rivets. This combination supports both indoor and outdoor use and is designed to resist heat, rain, snow, and common industrial chemicals or cleaners encountered in facility environments. The HYDS575 is part of a system that can be expanded or retracted, and top and bottom track styles are available in addition to this configuration, offering versatility for different storefront layouts and security requirements.
Intended use cases include securing storefront entries, channeling pedestrian or vehicle traffic in warehouse fronts, and shielding protected areas from unauthorized access. When selecting this gate, consider the need for the standard padlock hasp or the optional integrated cylinder lock, and whether you prefer galvanized finish or a powder coat color for enhanced appearance and corrosion resistance. The product ships as a single gate in its package, ready for installation in a compatible track system and is backed by a 1-year manufacturer warranty to cover manufacturing defects.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Indoor or outdoor suitability; resists heat, rain, snow, and harsh cleaners
- Top & bottom track styles available; compatible with other sizes
- Galvanized steel frame with durable lattice construction
- Padlock hasp standard; integrated cylinder lock optional
- Folding top frame for versatile installation
- Ships unassembled for flexible setup
- Width:
- 5'
- Height:
- 7.5'
- Max Width:
- 5'
- Folded Lattice Height:
- 7.5'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 7'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 94.0 lbs. ea.
- Package Size:
- Each
