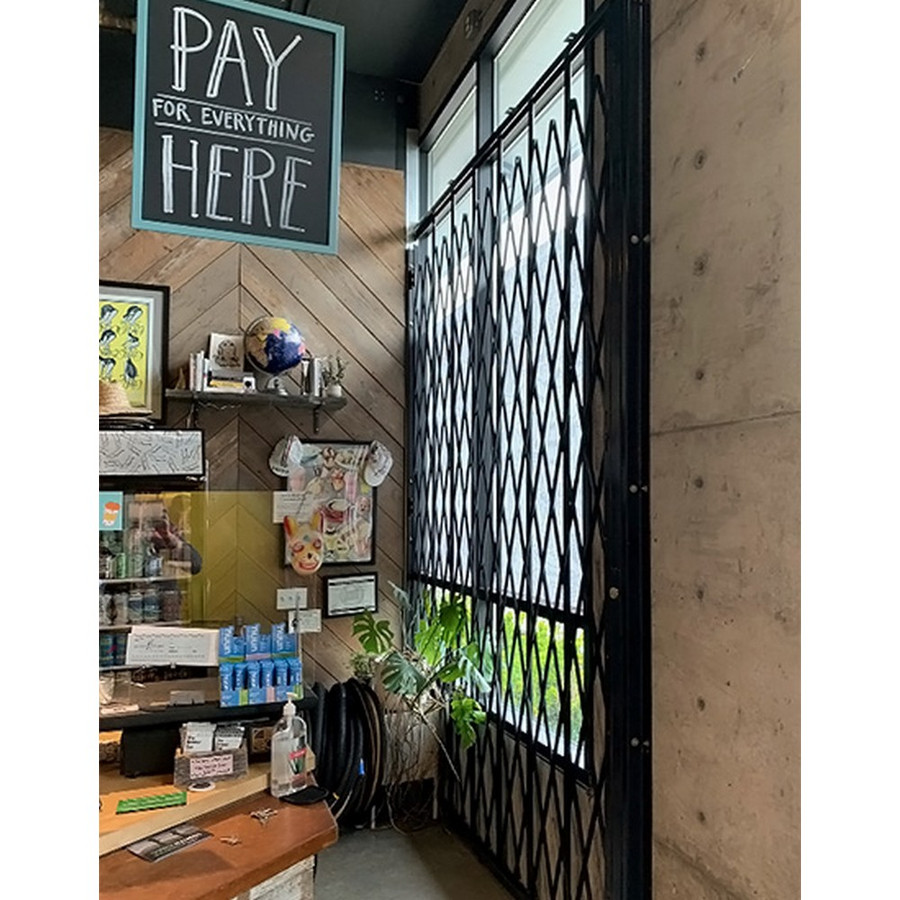

The Illinois Engineered Products HYDS1075 Storefront Security Gate is a full-width, single-gate solution designed to section off storefronts, warehouses, or protected areas quickly and securely. This gate spans 10 feet in width and stands 7.5 feet tall, providing active control over access while preserving visibility. It combines vertical bars that ride in tracks with a traditional scissor lattice, delivering continuous coverage along the opening and improving loss prevention by limiting entry points. The unit ships unassembled and includes a top folding frame style, with a robust 1-1/4 inch by 5/8 inch, 14-gauge C-channel steel frame reinforced by a 3/8 inch by 3/4 inch, 14-gauge lattice in U-channel steel. The lattice is fastened with zinc-plated rivets and features rubber grommet feet for floor protection and stability once installed.
This storefront security gate is constructed to resist harsh conditions, suitable for indoor or outdoor use, and capable of withstanding exposure to heat, rain, snow, and industrial cleaners or chemicals. A padlock hasp is provided as a standard locking option, with an integrated cylinder lock available as an upgrade, offering flexible security controls depending on access needs. Finishes include galvanized steel with optional powder coat colors available on request, allowing some customization to match or blend with surrounding structures. The gate is designed for straightforward installation and smooth operation when expanding or retracting, making it practical for temporary or semi-permanent security needs.
Considerations for buyers include confirming the site’s opening dimensions align with the 10-foot width and 7.5-foot height, understanding that the product ships unassembled, and selecting the preferred lock option and finish. The unit weighs approximately 188 pounds and is sold as a single gate with a top and bottom track configuration available. This differentiated design, combining continuous barrier bars with scissor lattice, supports comprehensive coverage while maintaining ease of use for staff and contractors.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Suitable for indoor and outdoor environments, resistant to weather and chemicals
- Top frame style: Folding; Bottom track style: standard included
- Padlock hasp standard; integrated cylinder lock optional
- Galvanized steel construction with optional powder coat finish
- Sturdy 14 gauge U-channel lattice and 14 gauge C-channel frame
- Ships unassembled with 1-year warranty
- Width:
- 10'
- Height:
- 7.5'
- Max Width:
- 10'
- Folded Lattice Height:
- 7.5'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 7'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Single Gate
- Weight:
- 188.0 lbs. ea.
- Package Size:
- Each
