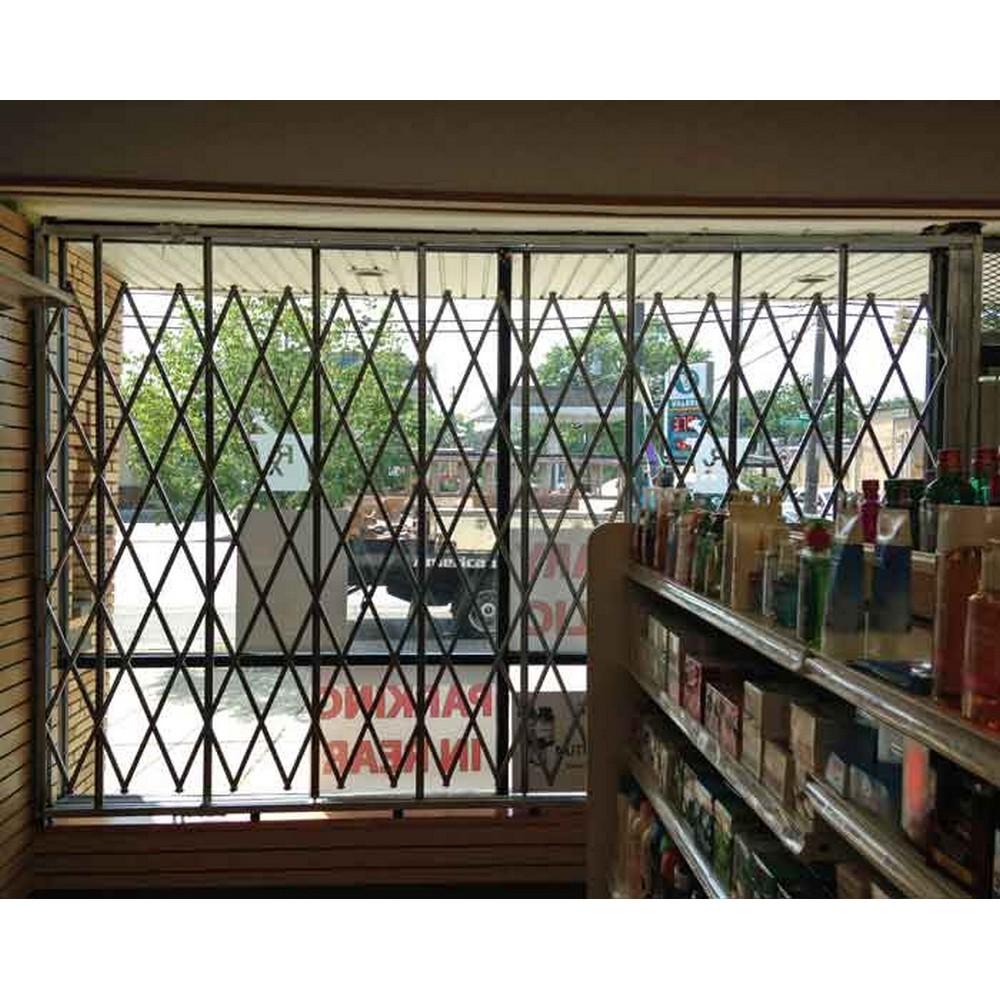

The Illinois Engineered Products HYDP1275 storefront security gate provides a full-width barrier designed to secure storefronts, warehouse entrances, or interior sections by combining vertical bars riding in tracks with a traditional scissor lattice. It ships as a pair gate that expands to a 12-foot width and 7.5-foot height, creating a continuous, high-coverage enclosure that can be positioned quickly and deployed or retracted as needed. The system is built to accommodate demanding environments, with galvanized steel construction and a folding top frame option that supports versatile installation scenarios where a fixed frame is not feasible.
Features:

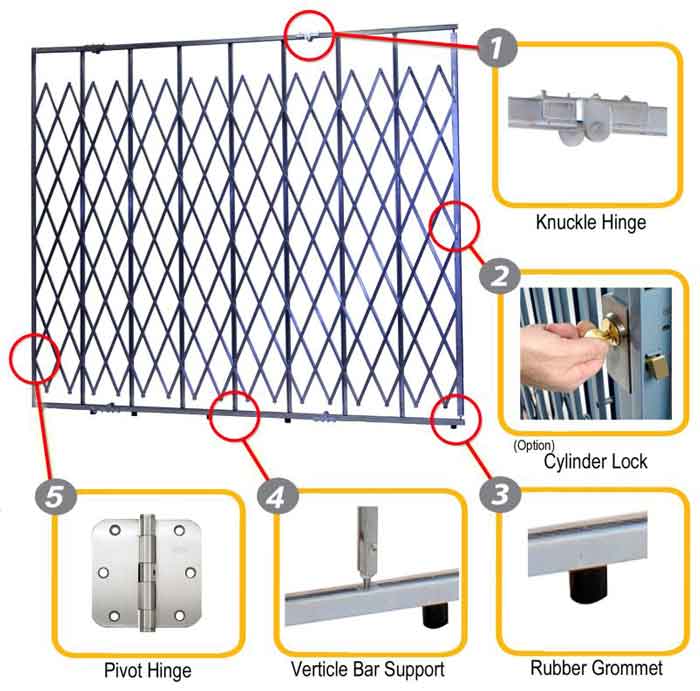

- Combination of vertical bars and scissor gates for comprehensive coverage
- Durable against heat, rain, snow, and harsh chemicals
- Top and bottom track styles available in multiple configurations
- Galvanized steel construction with optional powder coat finish
- Ships unassembled; includes standard padlock hasp (integrated cylinder lock optional)
- Sturdy frame and lattice construction with durable fasteners
- Width:
- 12'
- Height:
- 7.5'
- Max Width:
- 12'
- Folded Lattice Height:
- 7.5'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 7'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 225.0 lbs. ea.
- Package Size:
- Each
