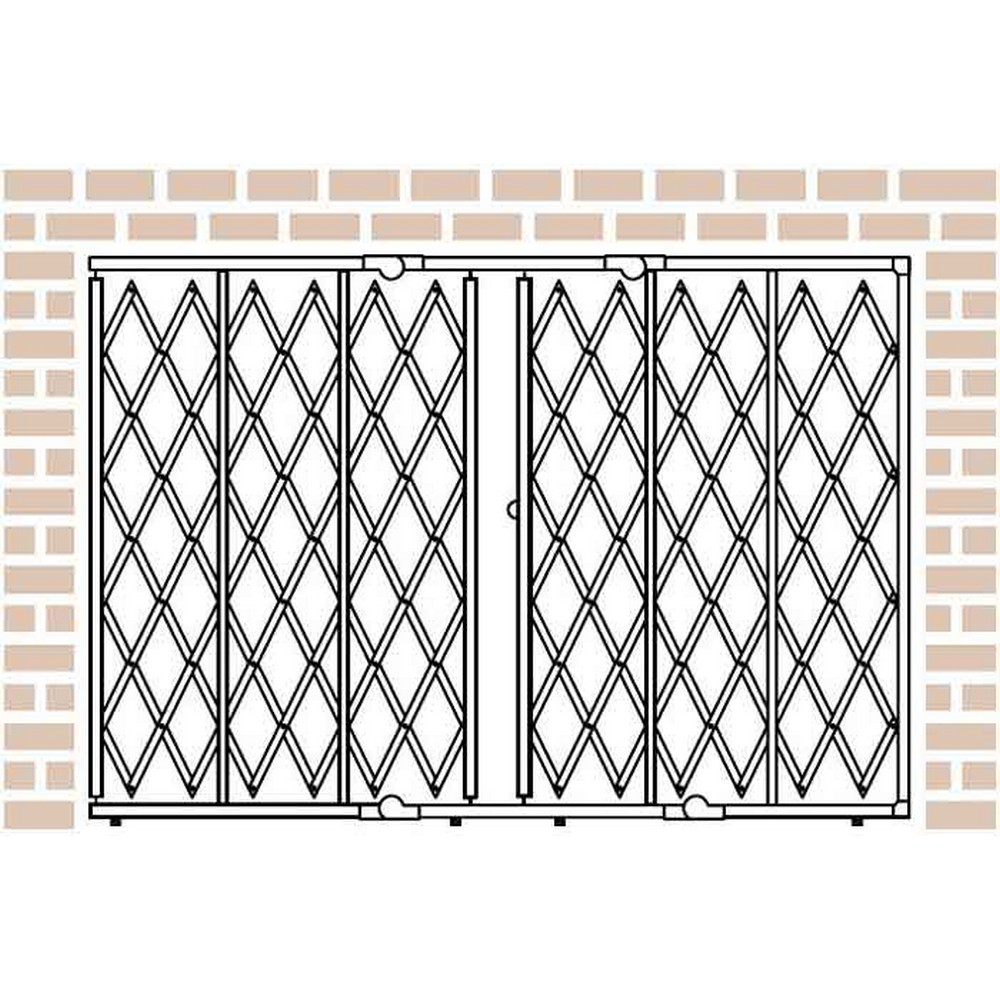

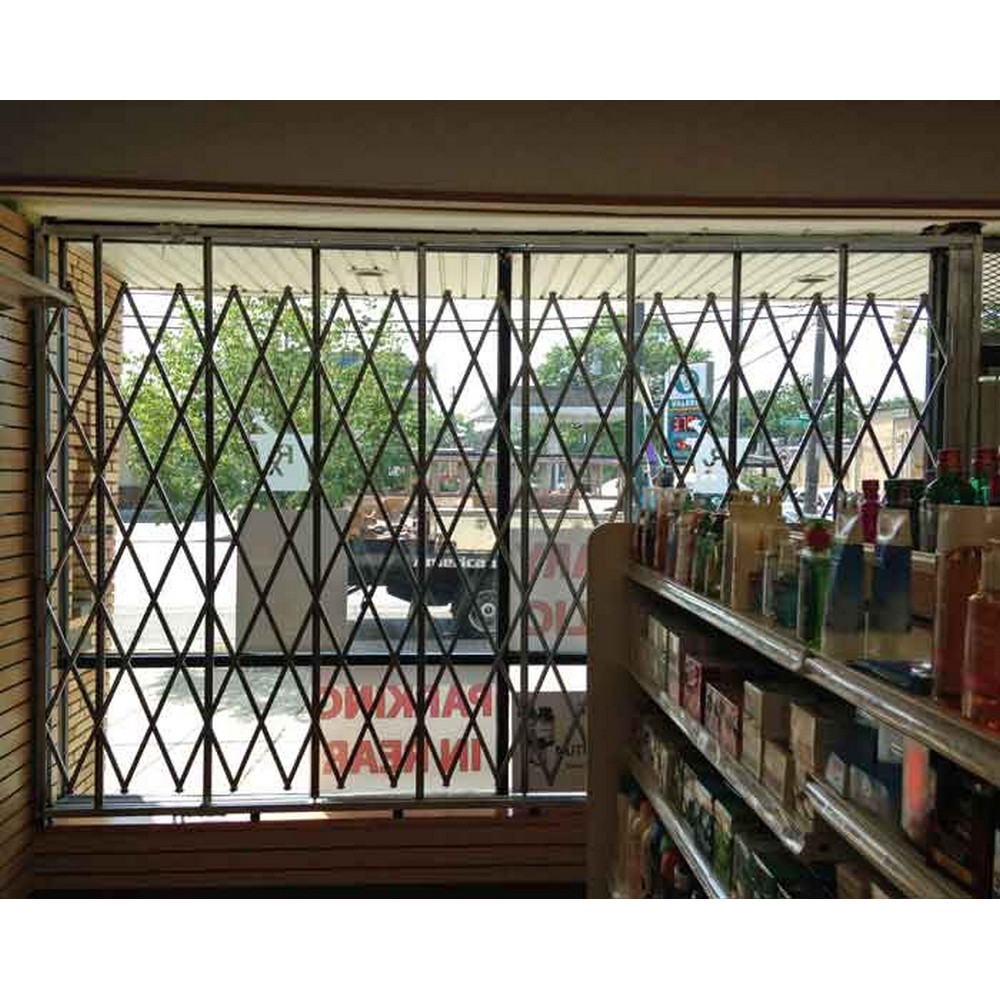

The Illinois Engineered Products HYDP1175 storefront security gate provides a full-width barrier designed to secure storefronts or warehouse areas quickly and effectively. This pair gate features a combination of vertical bars riding in tracks with scissor lattice, delivering continuous coverage to deter unauthorised access while allowing smooth expansion or retraction as needs change. The gate is built to withstand indoor or outdoor use and exposure to heat, rain, snow, and harsh industrial cleaners, making it suitable for a variety of operating environments.
Construction details include a 1-1/4" x 5/8" 14-gauge C-channel steel frame with rubber grommet feet and 3/8" x 3/4" 14-gauge U-channel steel lattice, reinforced with 1/4" x 1-1/2" zinc-plated steel rivets. The top frame is a folding style, with a 1-7/8" x 1-3/8" 11-gauge box channel steel bottom track, enabling stable operation and reliable installation. The unit ships unassembled and weighs 206 lbs per gate, with a standard padlock hasp and an optional integrated cylinder lock for added security. Finishing options include galvanized steel with powder coat colors available on request to suit site aesthetics.
This model is specified for a width of 11 feet and a height of 7.5 feet, with compatibility for top and bottom track configurations and additional size variants. It is sold as a storefront security gate—pair gate—intended for partitioning spaces or shielding storefront access, and is backed by a 1-year manufacturer warranty. When planning installation, consider that assembly is required and ensure the available mounting surface can support the track and gating assembly for reliable operation.
Features:
- Combination of vertical bars and scissor gates for total coverage
- Versatile for indoor or outdoor use under harsh conditions
- Top and bottom track styles available
- Padlock hasp standard; integrated cylinder lock optional
- Galvanized steel construction with powder coat colors available on request
- Ships unassembled
- Width:
- 11'
- Height:
- 7.5'
- Max Width:
- 11'
- Folded Lattice Height:
- 7.5'
- Top Frame Style:
- Folding
- Expanded Lattice Height:
- 7'
- Frame:
- 1-1/4 x 5/8 14 gauge C-channel steel with rubber grommet feet
- Lattice:
- 3/8 x 3/4 14 gauge U-channel steel with 1/4 x 1-1/2 zinc plated steel rivets
- Locking Options:
- Padlock hasp comes standard, integrated cylinder lock is optional
- Finish:
- Galvanized steel, powder coat colors available on request
- Top Bottom Track:
- 1-7/8 x 1-3/8 11 gauge box channel steel
- Warranty:
- 1-year manufacturer warranty
- Assembly:
- Ships unassembled
- Type:
- Storefront Security Gate - Pair Gate
- Weight:
- 206.0 lbs. ea.
- Package Size:
- Each
