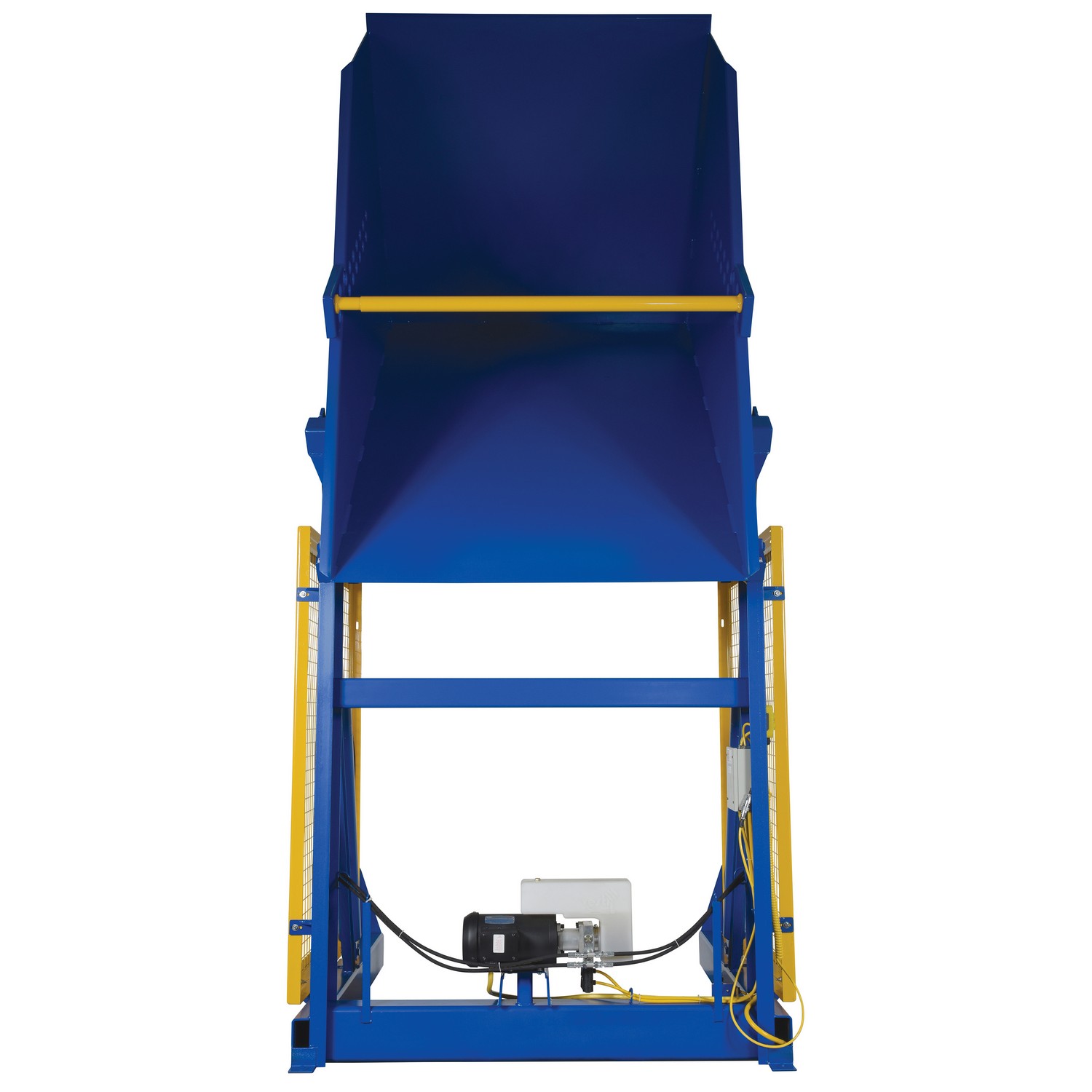

The Vestil Electric/Hydraulic Box Dumper is a heavy-duty material handling solution designed to safely and efficiently empty contents from boxes, crates, and similar containers. Built for pallet truck loading and unloading environments, it combines an electric/hydraulic power unit with a controlled dumping mechanism to rotate a chute at the push of a button, aiding material transfer and reducing manual handling. The unit supports a wide range of container sizes, with an adjustable hold-down range to accommodate different heights, and a 135° maximum dump angle that can be halted at any point during the cycle for precise control.

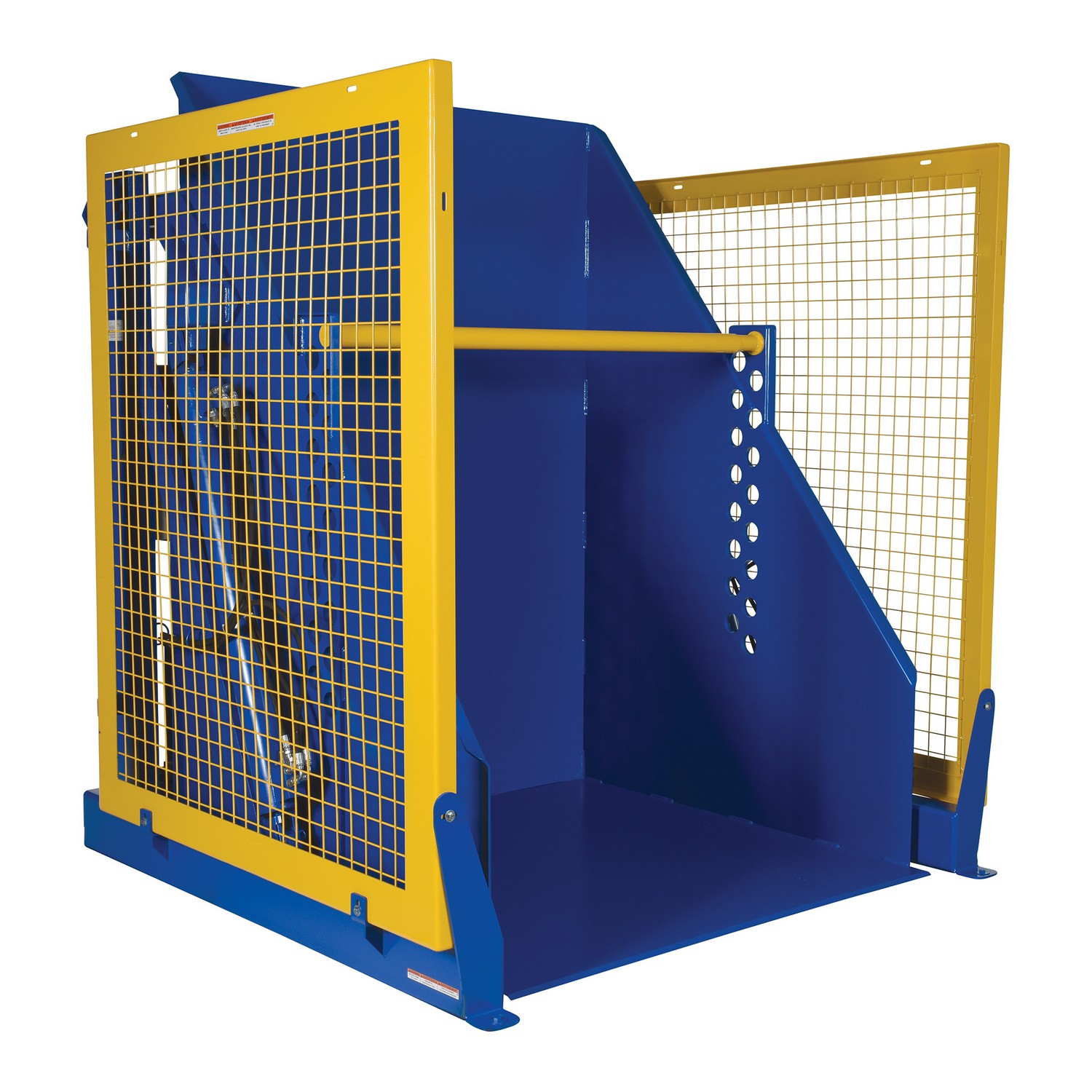

Constructed from welded steel and equipped with protective mesh side screens, the dumper provides a sturdy yet safer operating enclosure during dumping operations. The design includes a universal dumping capability, allowing various container types and sizes to be discharged through the chute, which is oriented and rotated to facilitate direct deposition into receptacles or processing lines. The system is powered by a 460/3-phase electrical supply with a 24-volt hand-held control, enabling remote operation from up to an 8-foot corded control, and it is intended for facilities that require repeated dump cycles without manual tipping.
When considering use, users should account for the unit’s 60-inch dump height, 149.5-inch rotated height, and the 52 by 50 inch usable chute area, ensuring adequate clearance for containers and overhead structures. The equipment is specified with a 6,000 lb uniform capacity and a maximum of about 15 starts per hour, highlighting its suitability for intermittent but robust dumping tasks. Packaging is listed as per each unit, and the described controls provide straightforward operation for maintenance and safety oversight in production or material-recovery workflows.
Features:
- Universal design to dump contents from many container types and sizes
- 135° maximum dump rotation with stop-anywhere capability
- Complete electric/hydraulic power unit to rotate the chute at the push of a button
- Safety mesh screens included on both sides for operator protection
- 60-inch dump height for versatile unloading needs
- 6000 lb uniform capacity
- Handheld control provides convenient operation from a distance
- Color:
- Blue / Yellow
- Material:
- Steel
- Uniform Capacity (lb.):
- 6000
- Dump Height (in.):
- 60
- Rotated Height (in.):
- 149-1/2
- Lowered Height (in.):
- 3/8
- Usable Chute Width/Length (in.):
- 52 x 50
- Chute Reach at Full Rotation (in.):
- 10
- Hold Downs (in.):
- 18 to 50
- Maximum Rotation Travel (degree):
- 135
- Dump Angle (degree):
- 45
- Motor Horsepower:
- 5.5
- Voltage:
- 460/3 Phase
- Maximum Duty Cycle Starts Per Hour:
- 15
- Hand Held Control (volts):
- 24
- Hand Held Control Length (ft.):
- 8
- Standard Output:
- AC
- Cord Length (ft.):
- 2
- Package Size:
- Each
