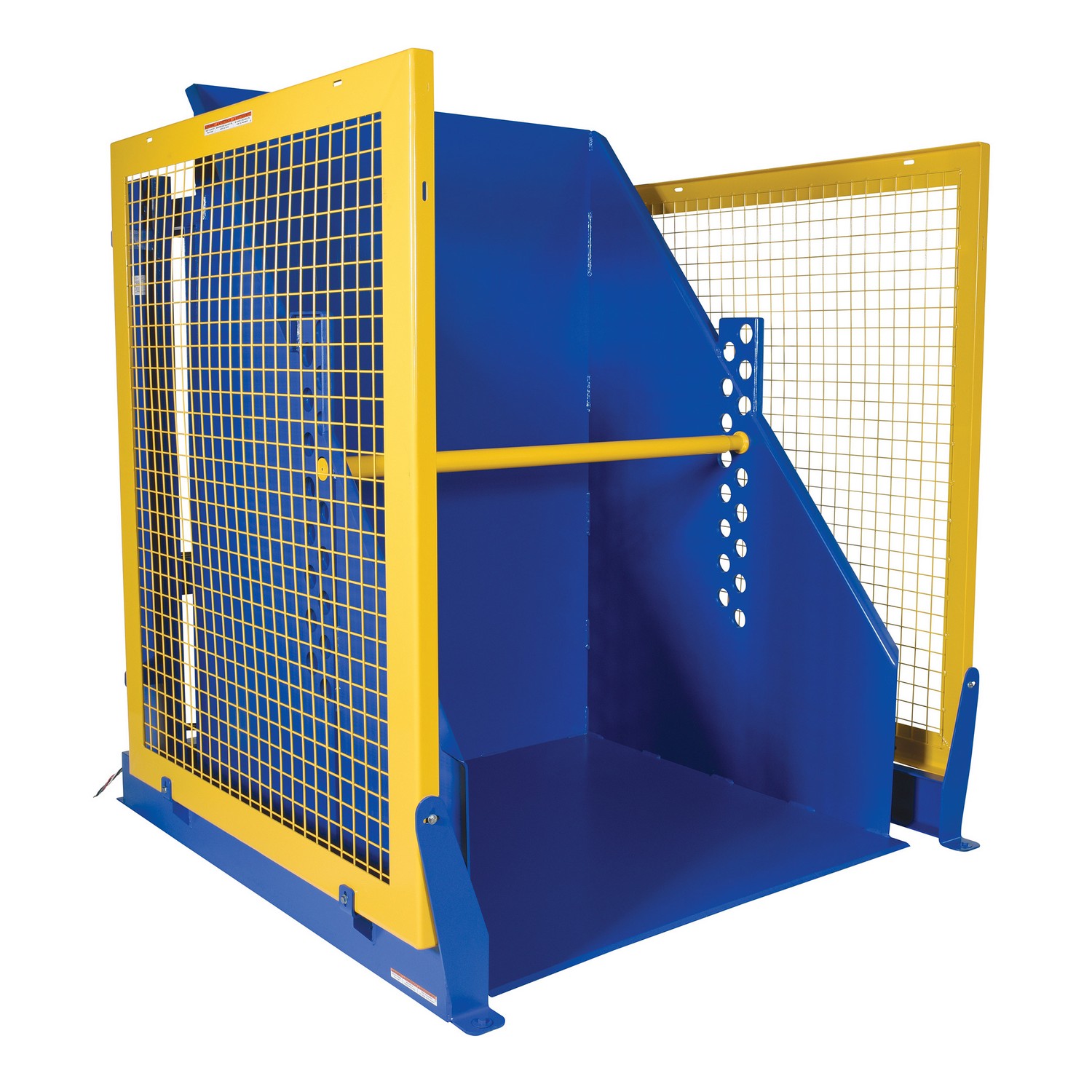

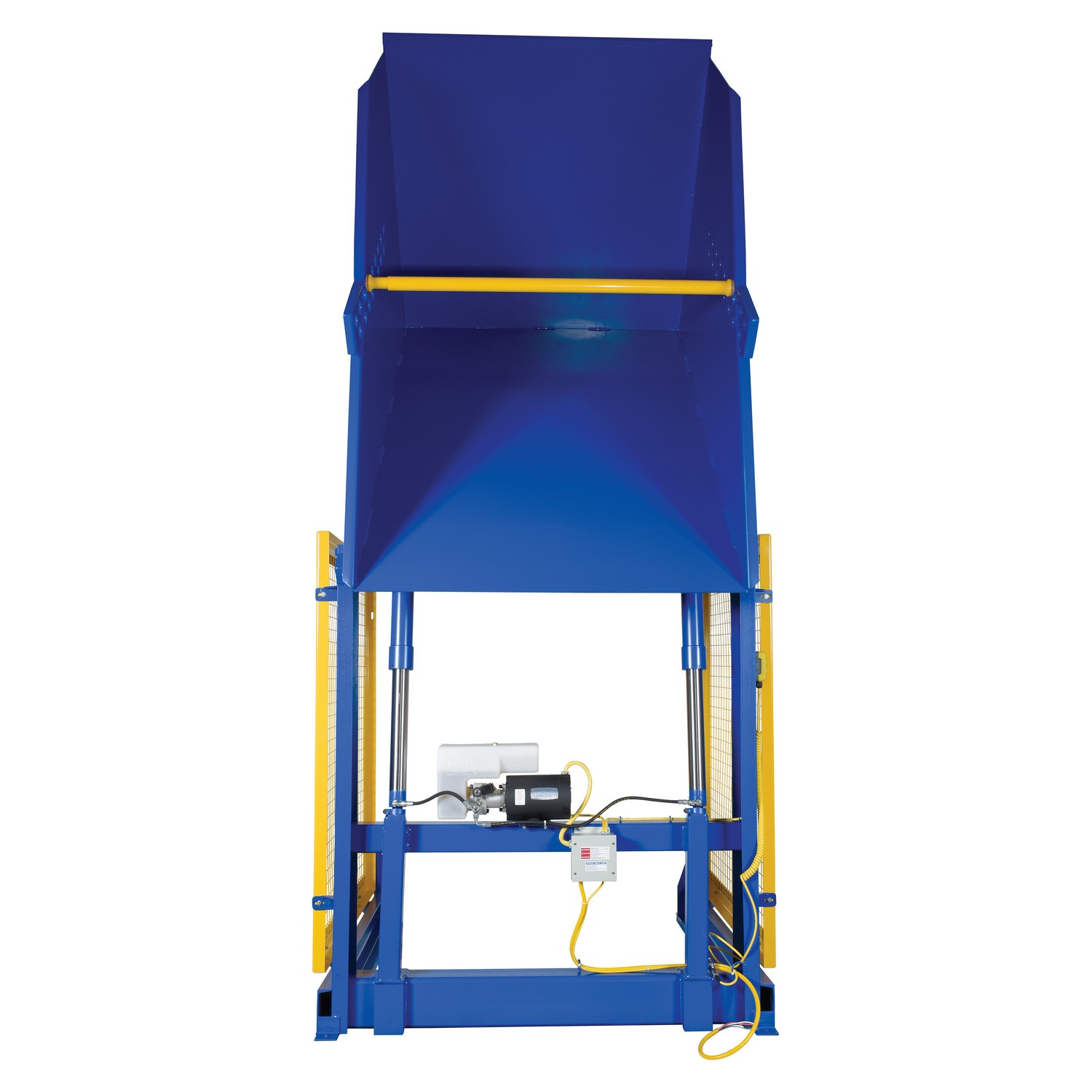

The Vestil HBD-2-60 Electric/Hydraulic Box Dumper is a heavy-duty material handling unit designed to safely dump contents from containers such as boxes and crates. Its 60-inch dump height and 2,000 lb capacity enable controlled emptying of sizable loads, supporting pallet truck loading and unloading workflows. A universal design accommodates a variety of container shapes and sizes, with a 135-degree maximum rotation that can be halted at any point during the dump cycle to match specific process needs. The unit integrates a complete electric/hydraulic power system that rotates the chute at the push of a button, simplifying handling and reducing manual labor. Protective mesh side screens are included on both sides of the structure to help enhance operator safety during operation.
Constructed from welded steel, the dumper emphasizes durability in demanding material-handling environments. The hold-down range (18–50 inches) allows the unit to accommodate containers of varying heights, while the chute dimensions (52 x 50 inches) and a 10-inch reach at full rotation support precise placement of dumped material. The system operates on 460/3-phase power with a 24-volt handheld control and an 8-foot control cord, giving operators the flexibility to manage dumps from a safe distance. A 2-foot power cord and straightforward package configuration further support quick installation and integration into existing material-handling lines.
This model is intended for applications involving bulk dumping from cartons, crates, or similar containers and is particularly suitable where controlled, height-adjustable dumping is required at the loading dock or within warehouse/production lines. When considering use, verify compatibility with your current pallet truck workflow, ensure adequate space for the 149.5-inch rotated height, and plan for the unit’s 15 starts-per-hour duty cycle to match your throughput needs. Safety and maintenance considerations include keeping the protective mesh screens in place and following standard electrical and hydraulic maintenance practices for 460V systems.
Features:
- Universal design for dumping multiple container types
- 135° rotation, adjustable stop points during dump
- Electric/hydraulic power unit to rotate chute at the push of a button
- Safety mesh screens on both sides for enhanced safety
- High dump height and substantial capacity for heavy loads
- Handheld control with 24V, 8 ft cord for easy operation
- Color:
- Blue / Yellow
- Material:
- Steel
- Uniform Capacity (lb.):
- 2000
- Dump Height (in.):
- 60
- Rotated Height (in.):
- 149-1/2
- Lowered Height (in.):
- 3/8
- Usable Chute Width/Length (in.):
- 52 x 50
- Chute Reach at Full Rotation (in.):
- 10
- Hold Downs (in.):
- 18 to 50
- Maximum Rotation Travel (degree):
- 135
- Dump Angle (degree):
- 45
- Motor Horsepower:
- 2
- Voltage:
- 460/3 Phase
- Maximum Duty Cycle Starts Per Hour:
- 15
- Hand Held Control (volts):
- 24
- Hand Held Control Length (ft.):
- 8
- Standard Output:
- AC
- Cord Length (ft.):
- 2
- Package Size:
- Each
