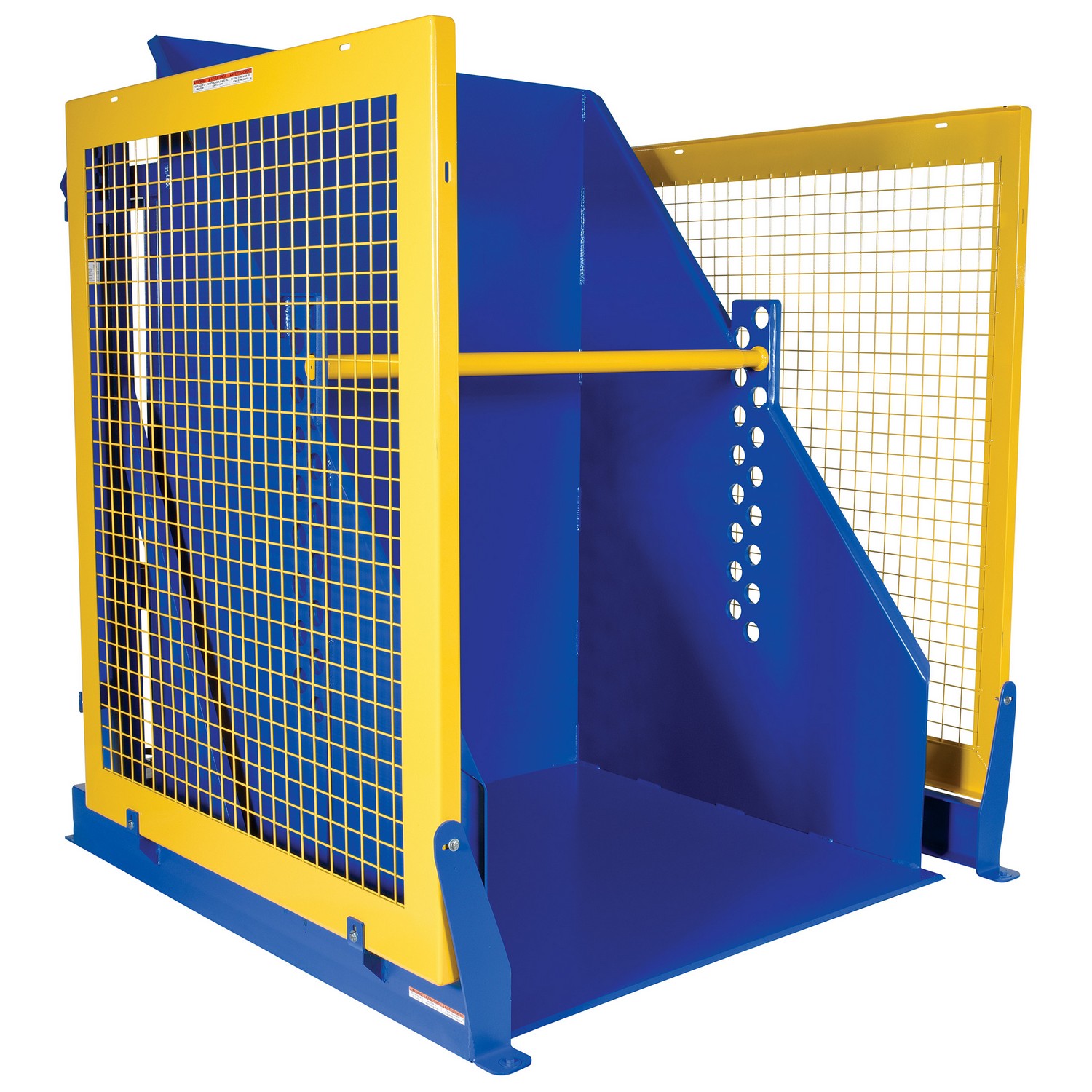

The Vestil HBD-4-48 Electric/Hydraulic Box Dumper is designed to safely and efficiently empty contents from various containers, including boxes and crates, by lifting and tilting them to a controlled 135° dump angle. This unit is intended for pallet truck loading and unloading workflows, enabling material handling personnel to discharge contents without manual tipping. The dumper features a heavy-duty welded steel frame and protective mesh side screens, which help contain material and provide added operator protection during operation. The integrated electric/hydraulic power unit allows the chute to rotate at the push of a button, facilitating a versatile dump cycle and simplifying discharge for different container sizes.
Key construction details include a 48-inch dump height and a maximum rotation travel of 135 degrees, with a hold-down range of 18 to 42 inches to accommodate a variety of container heights. The unit is built to handle a uniform capacity of 4000 lb, powered by a 2 HP motor operating on 460V/3-phase power, and is supplied with a 24V handheld control and an 8-foot control cord for convenient operation from a safe distance. The output chute measures 52 by 50 inches, providing ample clearance for larger loads, while the chute reach at full rotation is 10 inches, helping to position material into receptacles or trailers accurately.
This product is suitable for industrial settings where controlled dumping from pallets or large containers is needed as part of a material-handling or packaging line. It should be integrated into appropriate electrical provisioning and safety practices, and operators should rely on the handheld control to manage the dump cycle. Compatibility and fit should be verified against the support surfaces, container dimensions, and surrounding equipment in your facility to ensure safe and effective use.
Features:
- Universal design dumps many container types and sizes
- 135° maximum rotation with adjustable stop during dump
- Complete electric/hydraulic power unit to rotate chute at the push of a button
- Safety mesh screens on both sides for added protection
- 4,000 lb uniform capacity and 48 in dump height
- 460V/3-Phase power with 2 HP motor
- Handheld control (24V) with 8 ft cable
- Color:
- Blue / Yellow
- Material:
- Steel
- Uniform Capacity (lb.):
- 4000
- Dump Height (in.):
- 48
- Rotated Height (in.):
- 129-1/2
- Lowered Height (in.):
- 3/8
- Usable Chute Width/Length (in.):
- 52 x 50
- Chute Reach at Full Rotation (in.):
- 10
- Hold Downs (in.):
- 18 to 42
- Maximum Rotation Travel (degree):
- 135
- Dump Angle (degree):
- 45
- Motor Horsepower:
- 2
- Voltage:
- 460/3 Phase
- Maximum Duty Cycle Starts Per Hour:
- 15
- Hand Held Control (volts):
- 24
- Hand Held Control Length (ft.):
- 8
- Standard Output:
- AC
- Cord Length (ft.):
- 2
- Package Size:
- Each
