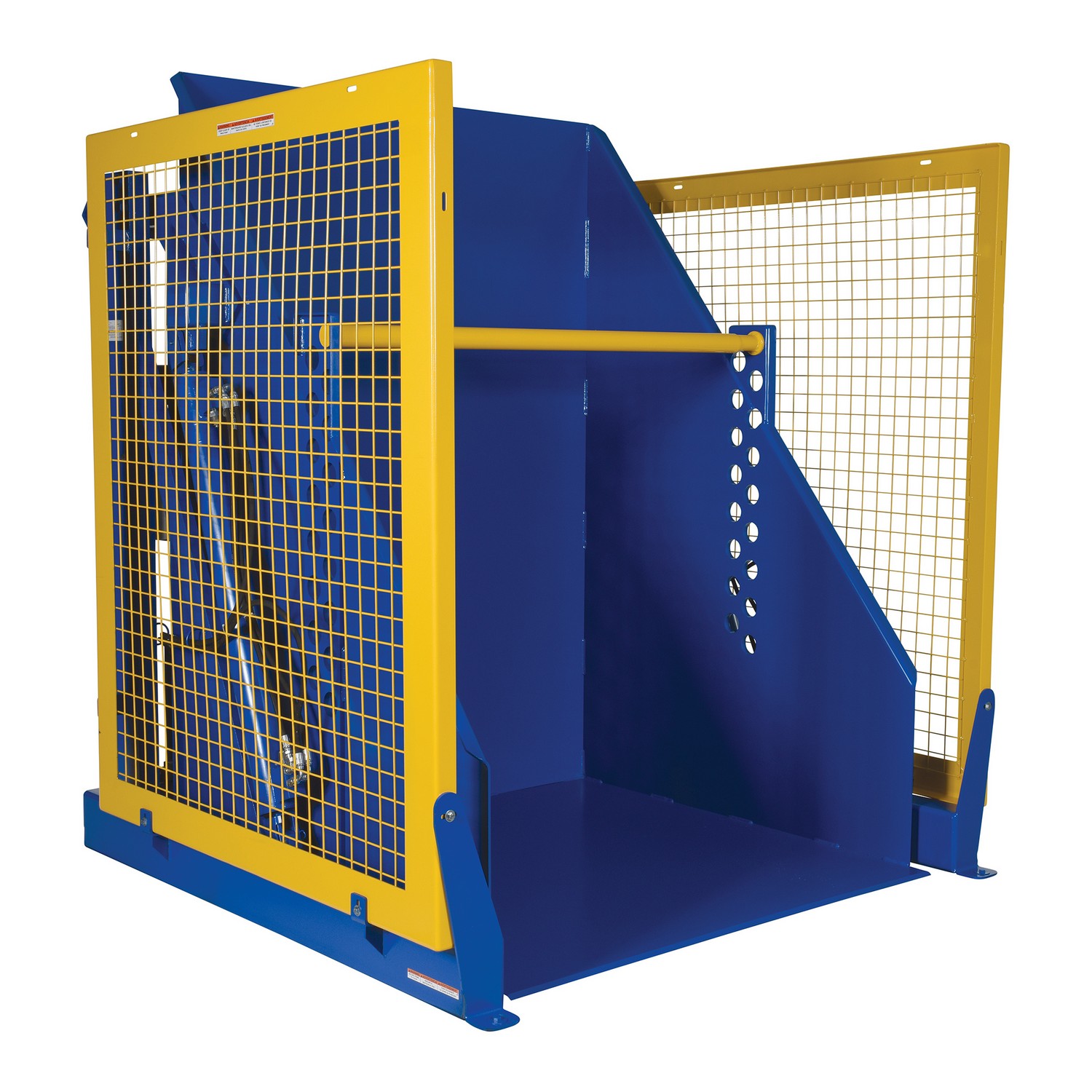

The Vestil VESHBD-6-48 is an electric/hydraulic box dumper designed for controlled dumping of materials from various containers, including boxes and crates, with pallet truck loading and unloading in mind. Its universal design accommodates a wide range of container sizes, and the unit features a 48-inch dump height with a 135-degree maximum rotation that can be halted at any point during the cycle to suit different operations. A complete electric/hydraulic power unit rotates the chute at the push of a button, improving handling efficiency in tight or elevated workspaces. Protective mesh side screens provide an added layer of safety during operation.
Constructed from heavy-duty welded steel, the dumper supports demanding material-handling tasks while retaining a relatively compact footprint for forklift or pallet truck environments. The system uses a 460/3-phase power supply with a 24-volt handheld control and an 8-foot control cord, enabling remote operation from a safe distance. The unit includes hold-downs adjustable across an 18 to 42-inch range to secure containers during the dump process, and it offers a 52-by-50-inch usable chute area with a 10-inch chute reach at full rotation. These features help tailor the dumping action to different container geometries and line speeds.
When evaluating suitability, consider the required electrical supply (high voltage three-phase) and the need for a dedicated space that can accommodate the 129-1/2 inch rotated height and 3/8 inch lowered height. The package is listed as a single unit, and maintenance should focus on the hydraulic system, electrical connections, and the safety screens. This model is intended for industrial material handling scenarios where controlled dumping from large containers is essential, particularly in settings that rely on pallet jacks or forklifts for loading and unloading operations.
Features:
- Universal design dumps many container types and sizes
- 135° maximum dump angle, adjustable during cycle
- Electric/hydraulic power unit rotates chute at push of a button
- Safety mesh screens included on both sides
- 6,000 lb uniform capacity
- 48 inch dump height
- Foldable path and stable base for safe handling
- Color:
- Blue / Yellow
- Material:
- Steel
- Uniform Capacity (lb.):
- 6000
- Dump Height (in.):
- 48
- Rotated Height (in.):
- 129-1/2
- Lowered Height (in.):
- 3/8
- Usable Chute Width/Length (in.):
- 52 x 50
- Chute Reach at Full Rotation (in.):
- 10
- Hold Downs (in.):
- 18 to 42
- Maximum Rotation Travel (degree):
- 135
- Dump Angle (degree):
- 45
- Motor Horsepower:
- 5.5
- Voltage:
- 460/3 Phase
- Maximum Duty Cycle Starts Per Hour:
- 15
- Hand Held Control (volts):
- 24
- Hand Held Control Length (ft.):
- 8
- Standard Output:
- AC
- Cord Length (ft.):
- 2
- Package Size:
- Each
