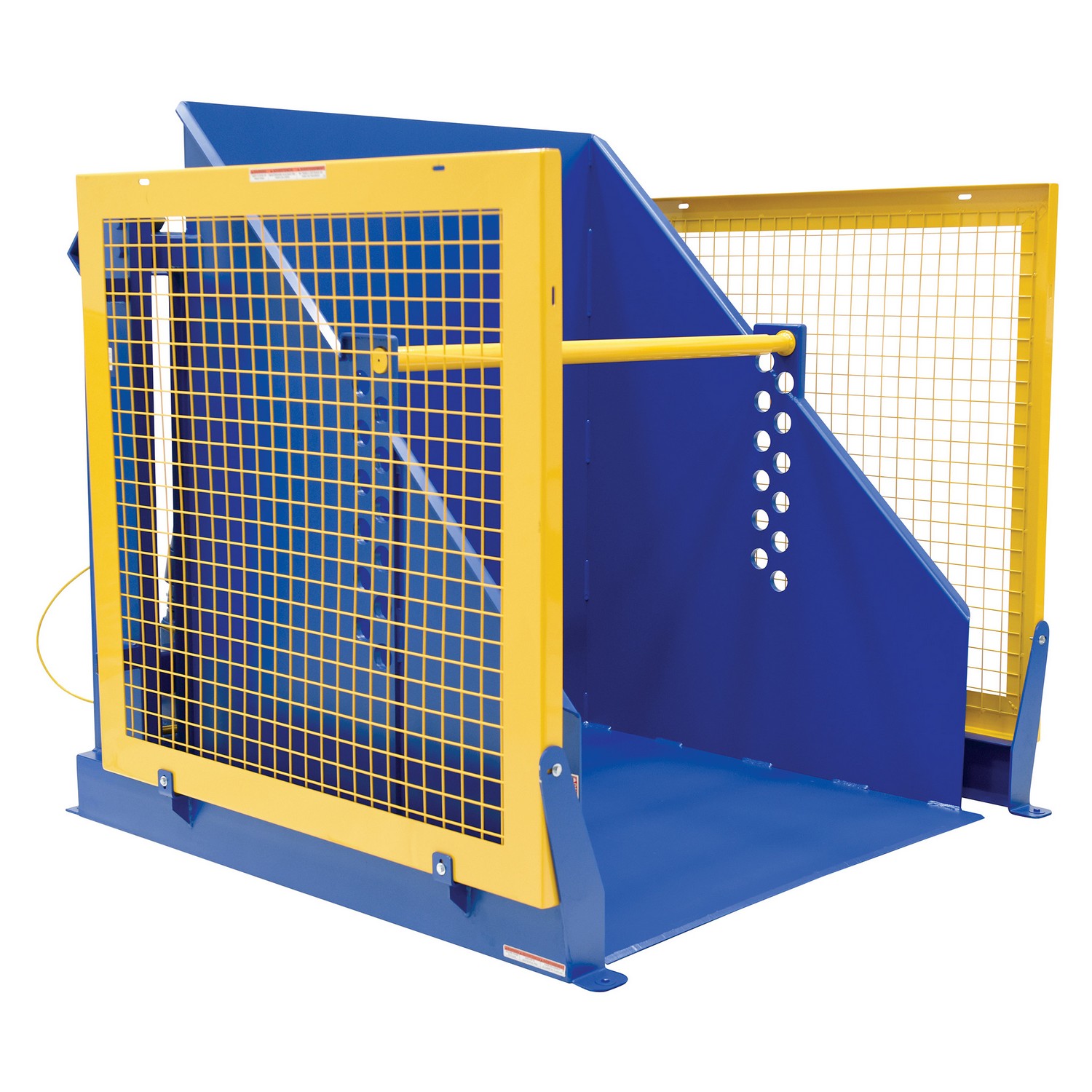

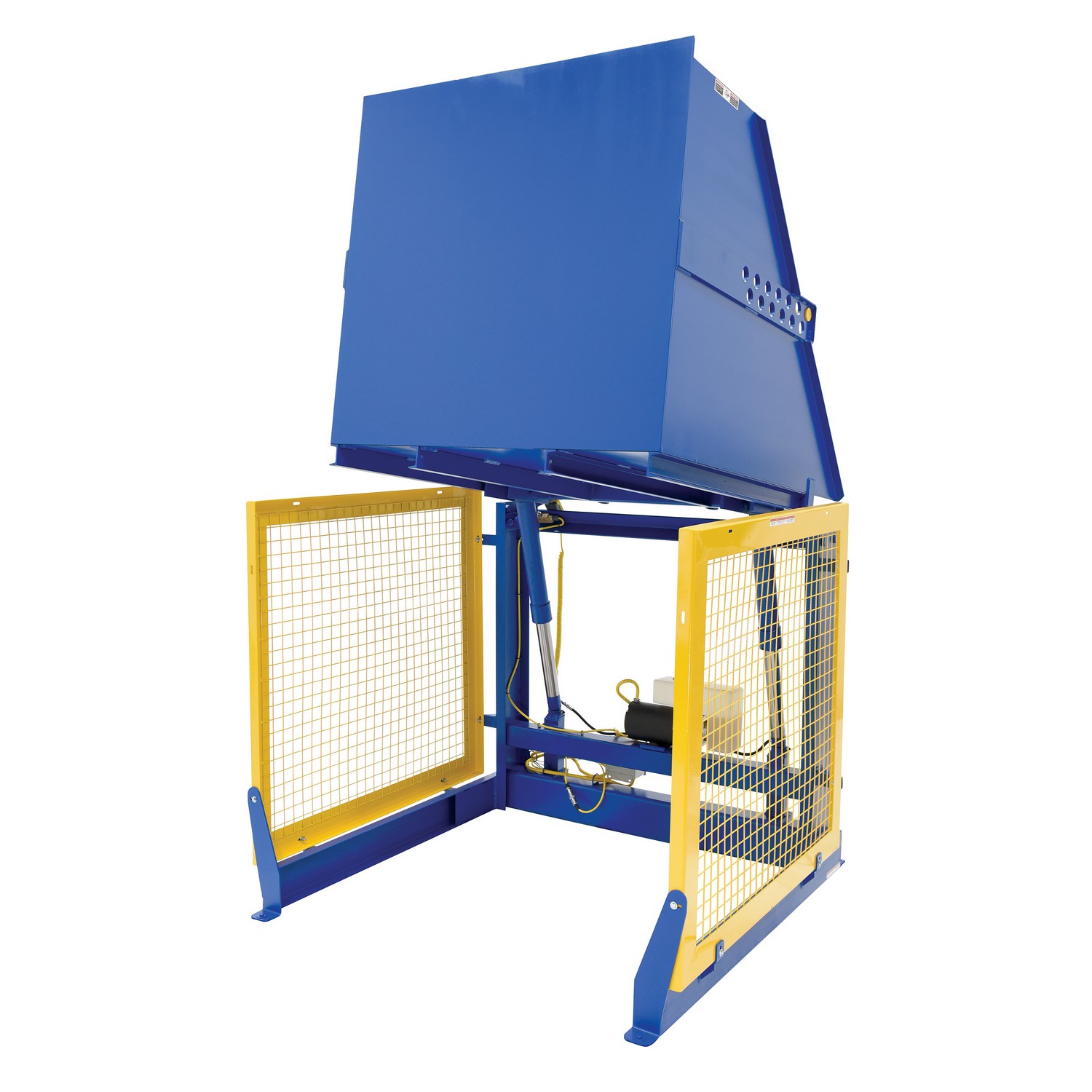

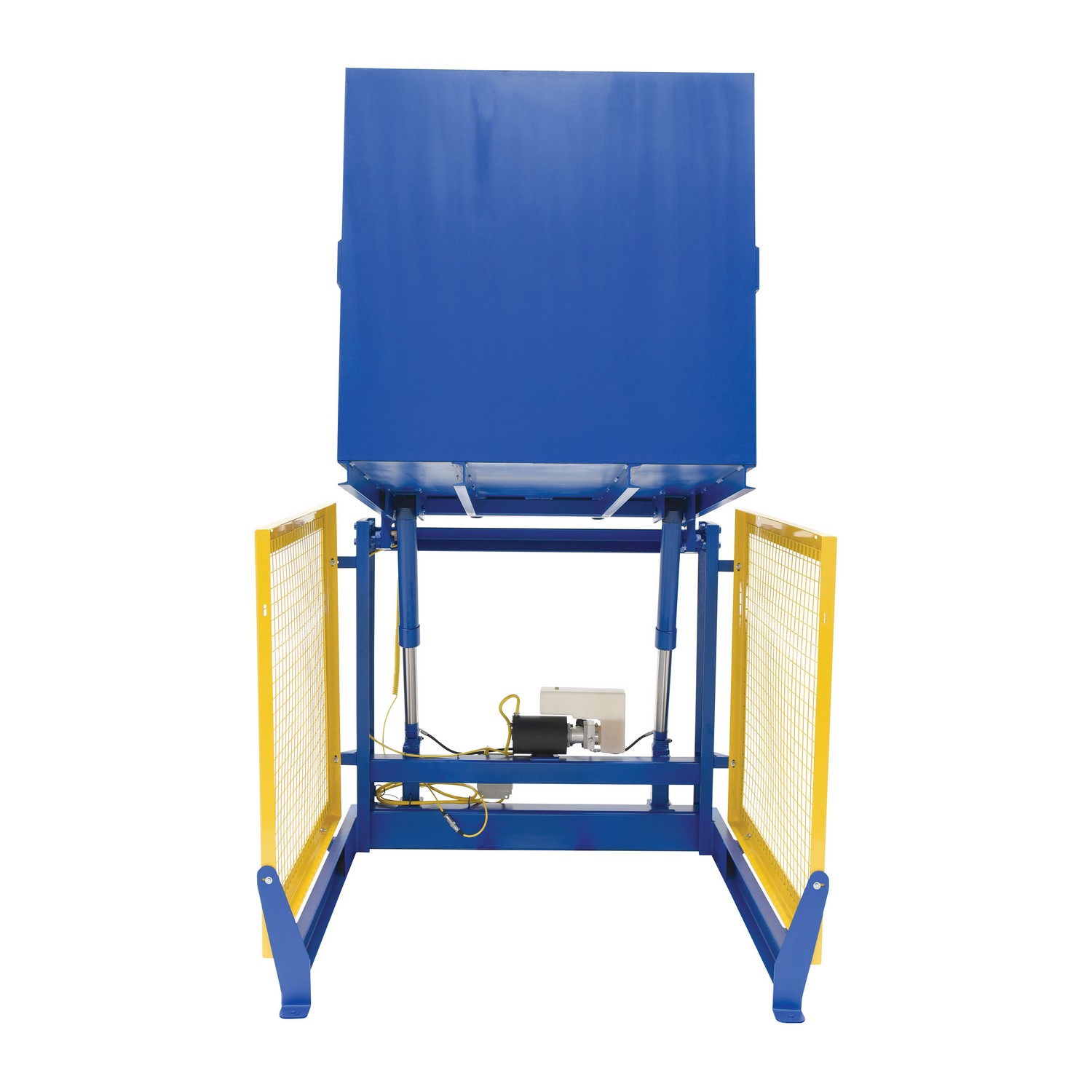

The Vestil Electric/Hydraulic Box Dumper is a heavy-duty material handling solution designed to safely empty contents from boxes, crates, and other containers. Operated by a complete electric/hydraulic power unit, the unit rotates a chute to dump material on demand with the push of a button, offering controlled release within a 135-degree maximum rotation travel. The system includes a hold-down range that accommodates a variety of container heights, and protective mesh side screens are provided on both sides to enhance operator safety during operation. The dumper is built with welded steel construction and features a durable blue/yellow finish typical of Vestil equipment, suitable for demanding industrial environments where reliable dump cycles are needed.
Key construction and distinguishing features include a robust steel frame and integrated safety mesh screens that help shield the operator from material while the contents are being dumped. The dump height reaches up to 48 inches, with a usable chute area measuring 52 by 50 inches, and a 10-inch chute reach at full rotation. The unit is powered by a 2 horsepower motor running on 460/3-phase power, and it incorporates a 24-volt handheld control corded at 8 feet for convenient, remote operation. The system is designed for pallet truck loading and unloading, enabling efficient handling of contents from various container types and sizes without manual tipping.
Practical considerations include a maximum duty cycle of 15 starts per hour, which reflects its use in intermittent dump cycles typical of warehouse or distribution center workflows. The device weighs in with a substantial footprint and requires appropriate electrical access and space to accommodate the full 129.5-inch rotated height and 3/8-inch lowered height in staging. For installation and use, ensure compatibility with your container dimensions and loading equipment, and plan for maintenance of the hydraulic system, motor, and control wiring as part of standard facility upkeep.
Features:
- Universal design dumps contents from many container types
- 135° maximum rotation travel with stop-anytime capability
- Complete electric/hydraulic power unit to rotate chute at the push of a button
- Safety mesh screens included on both sides for added protection
- 2,000 lb uniform capacity with 48 in. dump height
- 2,000 lb capacity at 46.8 in. rotation height options via 135° travel
- Color:
- Blue / Yellow
- Material:
- Steel
- Uniform Capacity (lb.):
- 2000
- Dump Height (in.):
- 48
- Rotated Height (in.):
- 129-1/2
- Lowered Height (in.):
- 3/8
- Usable Chute Width/Length (in.):
- 52 x 50
- Chute Reach at Full Rotation (in.):
- 10
- Hold Downs (in.):
- 18 to 42
- Maximum Rotation Travel (degree):
- 135
- Dump Angle (degree):
- 45
- Motor Horsepower:
- 2
- Voltage:
- 460/3 Phase
- Maximum Duty Cycle Starts Per Hour:
- 15
- Hand Held Control (volts):
- 24
- Hand Held Control Length (ft.):
- 8
- Standard Output:
- AC
- Cord Length (ft.):
- 2
- Package Size:
- Each
