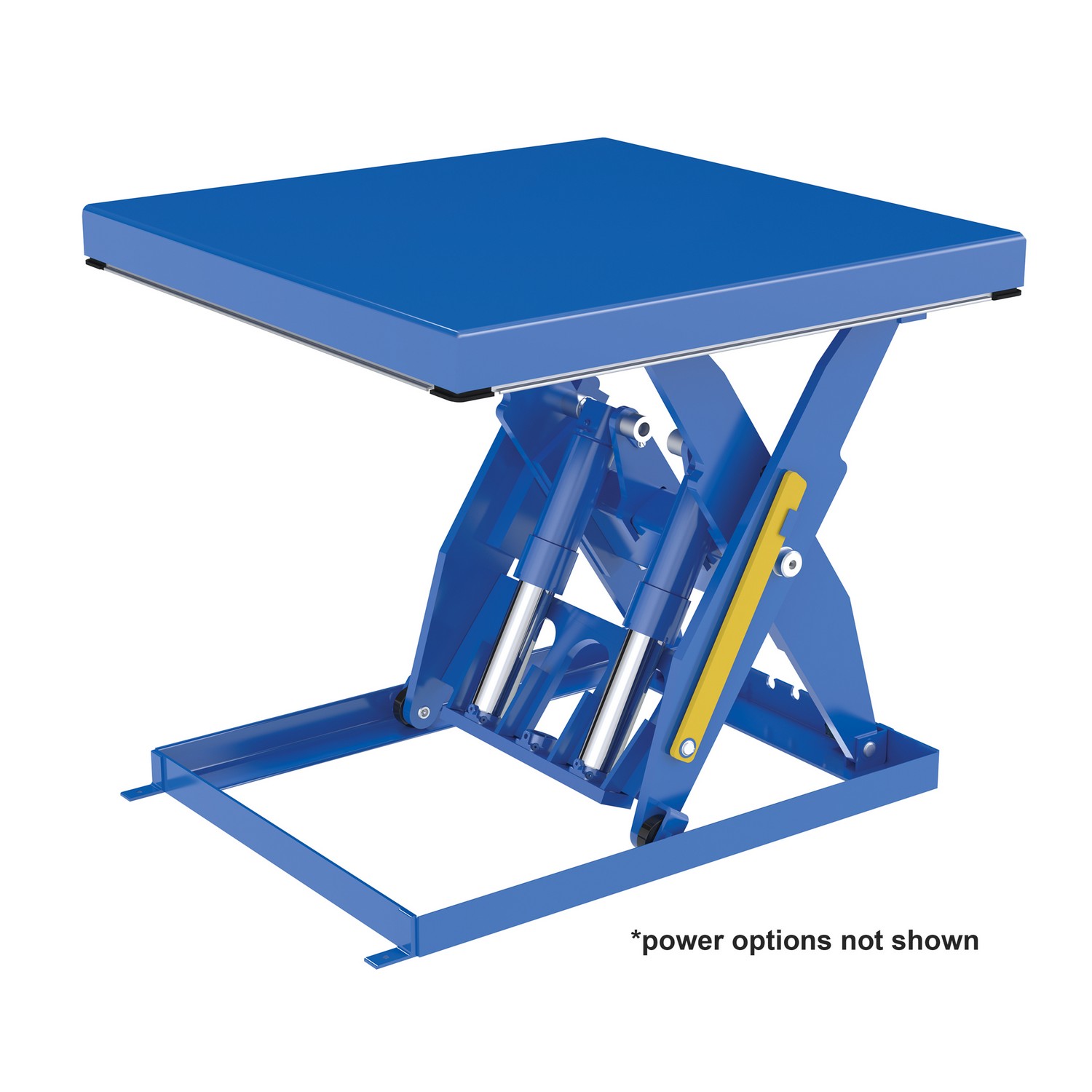

The Vestil Electric Hydraulic Lift Table VESEHLT-4848-6-44 is a heavy-duty material handling platform designed to raise and lower loads in warehouse and manufacturing environments. With a rated capacity of 6,000 lb and a compact 48-3/8 by 48-3/8 inch platform, this lift table balances substantial lifting capability with a relatively compact footprint for work cell or dock applications. The unit uses a displacement-style hydraulic cylinder paired with a pressure-plated pump and a welded steel frame, delivering robust vertical movement and dependable service in demanding settings. Its 36 inches of vertical travel and a 44-inch raised height provide a substantial lift range for positioning pallets or containers at ergonomic working heights, reducing repetitive bending or reaching for operators. The design includes safety features such as a four-sided electric toe-guard that meets OSHA pinch-point expectations, an integral maintenance prop, and an internal safety velocity fuse to help maintain platform height in the event of hydraulic hose or fitting failure.
The lift table is powered by a 460V three-phase motor (2 HP) and utilizes a standard 96-inch cord with a 24V AC push-button hand control, supporting reliable operation from a controlled power source. Construction emphasizes durable all-steel components with a blue finish, while the aluminum-displacement pump and high-quality bearings improve efficiency and longevity in daily use. The unit’s configuration supports factory and warehouse workflows that require precise elevation changes and stable load support, including pallet handling, assembly line feeds, and shift-change tasks where repeated height adjustments are common. If platform dimensions are critical for your application, this model’s platform size and raised height should be verified against workstation layouts prior to purchase.
Features:
- Four-sided electric toe-guard meets OSHA pinch point specification
- Durable aluminum pressure-plated hydraulic pump for maximum efficiency
- Displacement-style hydraulic cylinders for strong lifting power
- Welded steel construction for reliable heavy-duty use
- Platform: 48-3/8 x 48-3/8 inches with 6,000 lb capacity
- Vertical travel of 36 inches; raised height 44 inches
- Voltage/Phase: 460V / 3-phase; 60 Hz; 2 HP motor
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 6000
- Travel Time (sec.):
- 32
- Vertical Travel (in.):
- 36
- Voltage/Phase:
- 460/3
- Hertz:
- 60
- Motor Horsepower:
- 2
- Hydraulic Component Rating (psi):
- 3000
- Cord Length (in.):
- 96
- Push Button Hand Control:
- 24V AC
- Raised Height (in.):
- 44
- Lowered Height (in.):
- 8
- Platform Width/Length (in.):
- 48-3/8 x 48-3/8
- Package Size:
- Each
