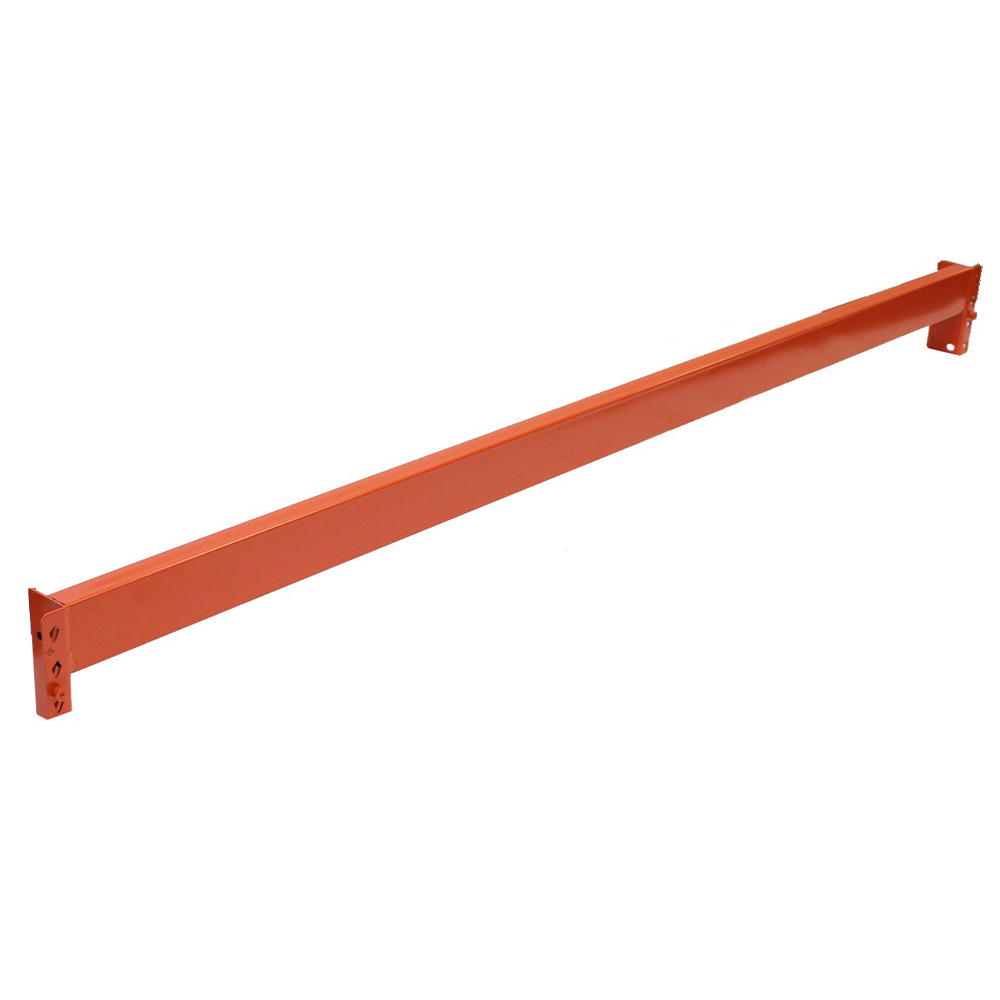

The Interlake Mecalux IB65ET14400RSA2000 144" orange heavy-duty non-slotted pallet rack beam is a key component for creating a robust pallet storage system in demanding industrial settings. Designed to integrate with Interlake Mecalux tear drop upright frames (bolted or welded), this beam is fabricated from roll-formed steel with welded end plates and a tear drop profile that accommodates cross bars and decking. Its 16-gauge construction and continuous seam weld along the base contribute to a stable, load-bearing span, while the end plates slot into the uprights to establish a secure, reliable connection within the rack frame. The beam features two safety, sprung-loaded locking devices per beam, and a piston lock mechanism that seats and locks automatically, helping to protect against accidental displacement of loads and beam disengagement during operation.
This beam is finished in orange powder-coated baked enamel, providing durable surface protection suitable for industrial environments and clear visibility in storage areas. It carries a stated shelf capacity of 7,110 lbs, aligning with the typical expectations for heavy-duty pallet storage applications where frequent loading and unloading occur. Note that this item is not stocked in our warehouse, so processing, transit times, and stock availability will vary. If you require delivery by a specific date, please contact us before ordering; expedited shipping may be possible, but cancellations or returns on this item may not be feasible after an order is placed.
Potential users should ensure compatibility with their existing Interlake Mecalux tear drop pallet rack frames, whether bolted or welded upright configurations, and confirm precise frame spacing and assembly requirements. This beam is intended for non-seismic areas and is certified by Rack Manufacturers Institute (RMI), supporting its use in compliant storage installations when paired with appropriate uprights and safety standards. When planning installation, consider the whole rack system layout, including uprights, decking, and cross-bars, to achieve the intended load distribution and aisle access.
Features:
- 144" wide, 6.56" high tear drop beam for pallet rack systems
- Single roll-formed steel beam with continuous seam weld
- End plates slot into tear drop uprights with two safety locking devices per beam
- Piston lock connection seats and locks automatically
- 2-3/4" W x 1-5/8" tear drop step beams for cross bars/decking
- Orange finish; non-seismic area use only
- RMI certified
- Beam Width:
- 144"
- Beam Height:
- 6.56"
- Shelf Capacity:
- 7,110 lbs
- Color:
- Orange
- Package Size:
- Each
