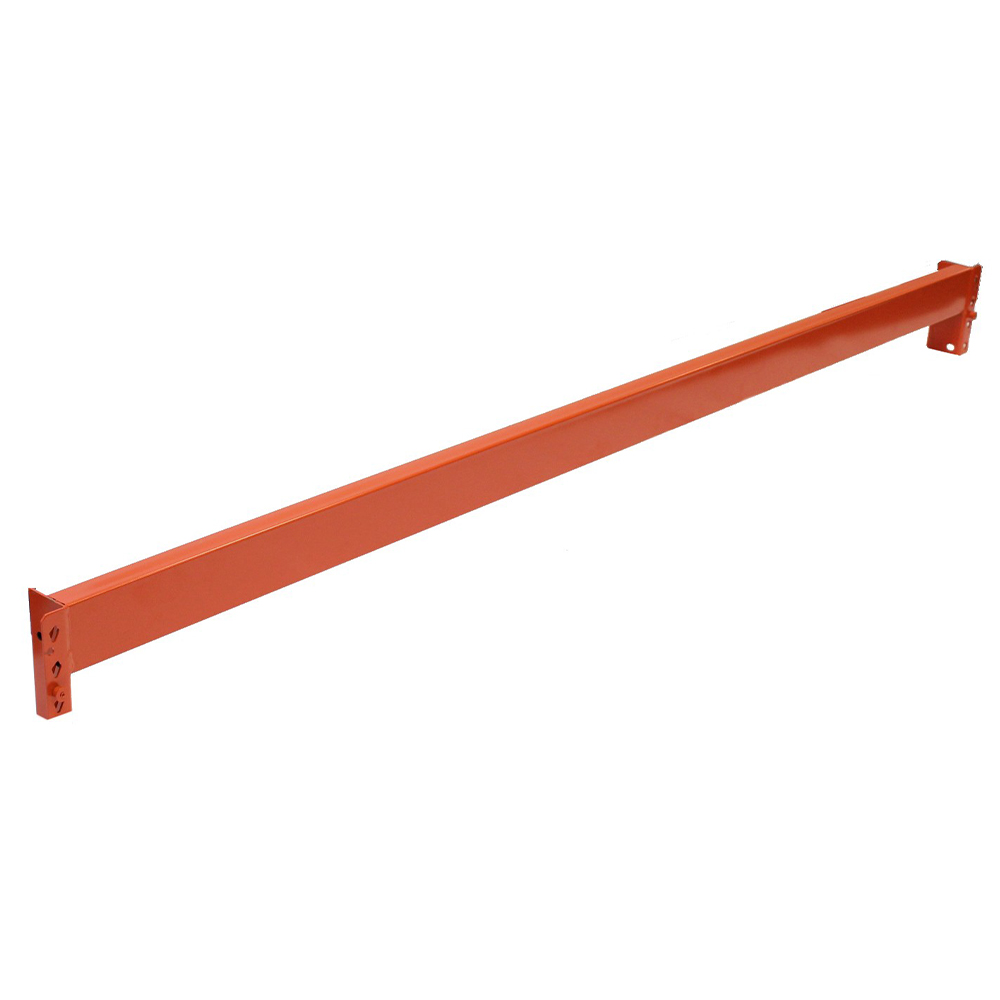

The Interlake Mecalux IB50ET10800RRA2000 is a heavy-duty, orange pallet rack beam designed to support deep industrial storage applications. Built as a single roll-formed steel member with a continuous seam weld along its base, this 108-inch long beam serves as the horizontal element that carries pallet loads within a compatible Interlake Mecalux pallet rack system. It features end plates that slot into tear-drop uprights and uses a secure two-safety locking mechanism to seat and lock the beam into the frame, helping to prevent accidental displacement and damage in demanding environments.
Features:
- 108" wide, 5.0" high tear drop non-slotted beam
- 16 GA roll-formed with welded end plates
- End plates slot into tear drop uprights
- Two safety, sprung-loaded locking devices per beam
- Piston lock frame-to-beam connection for automatic locking
- Supports cross bars and decking via 2-3/4" W x 1-5/8" tear drop step beams
- RMI certified for non-seismic areas
- Beam Width:
- 108"
- Beam Height:
- 5.0"
- Shelf Capacity:
- 6,150 lbs
- Color:
- Orange
- Package Size:
- Each
