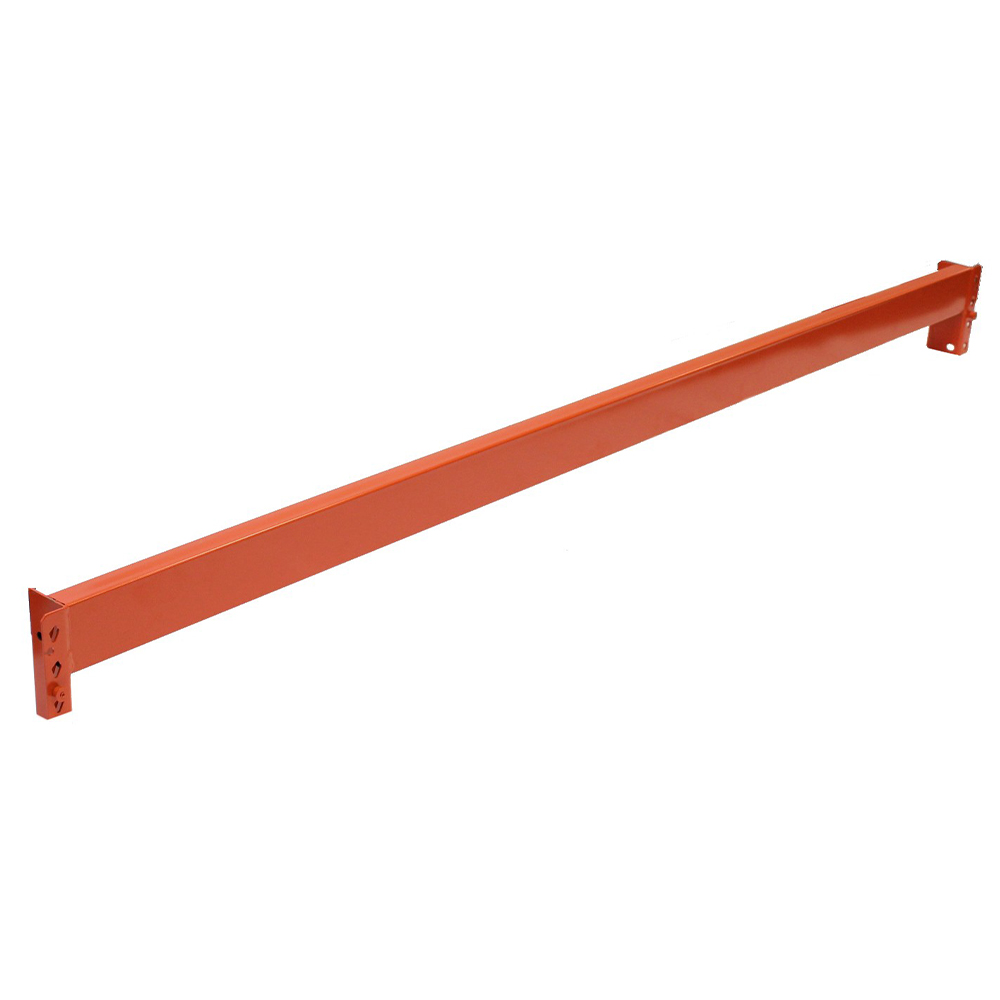

Interlake Mecalux IB50ET12000RRA2000 120" - Orange Pallet Rack Non-Slotted Beam

The Interlake Mecalux 120-inch orange heavy-duty non-slotted pallet rack beam is designed to be used with Interlake Mecalux pallet racking systems. This beam provides a solid, single-piece steel construction with a powder-coated baked enamel finish for durability in demanding storage environments. It features a tear drop end plate and a secure frame-to-beam connection, including two safety, sprung-loaded locking devices per beam to help prevent accidental displacement and tampering, contributing to reliable load containment when paired with compatible uprights.

Constructed as roll-formed steel with welded end plates, the beam supports pallet loads across a standard 120" width and a 5.0" height profile. The system is suitable for non-seismic area applications and is compatible with tear drop bolted or welded upright frames from the same family. The rated shelf capacity of 5,610 lbs per load level indicates each level’s capability when properly installed with appropriate uprights and cross members. As noted by the vendor, this item is not stocked in our warehouse, so processing times and availability can vary; customers should confirm expected delivery timelines and possible expedited options before placing an order.

This beam is intended for use within industrial storage configurations that rely on durable, bolted or welded tear drop uprights and requires proper assembly with the matching Interlake Mecalux components. When ordering, verify compatibility with your existing frame type and ensure that the specific uprights, end connectors, and decking are suitable for your storage plan and local loading requirements.

Features:

• 16 GA roll formed beam with welded end plates
• Two beams per load level for each shelf
• Piston lock frame-to-beam connection for automatic locking
• Two safety, sprung loaded locking devices per beam
• End plates slot into tear drop upright frames
• Non-seismic area use only
• RMI certified
