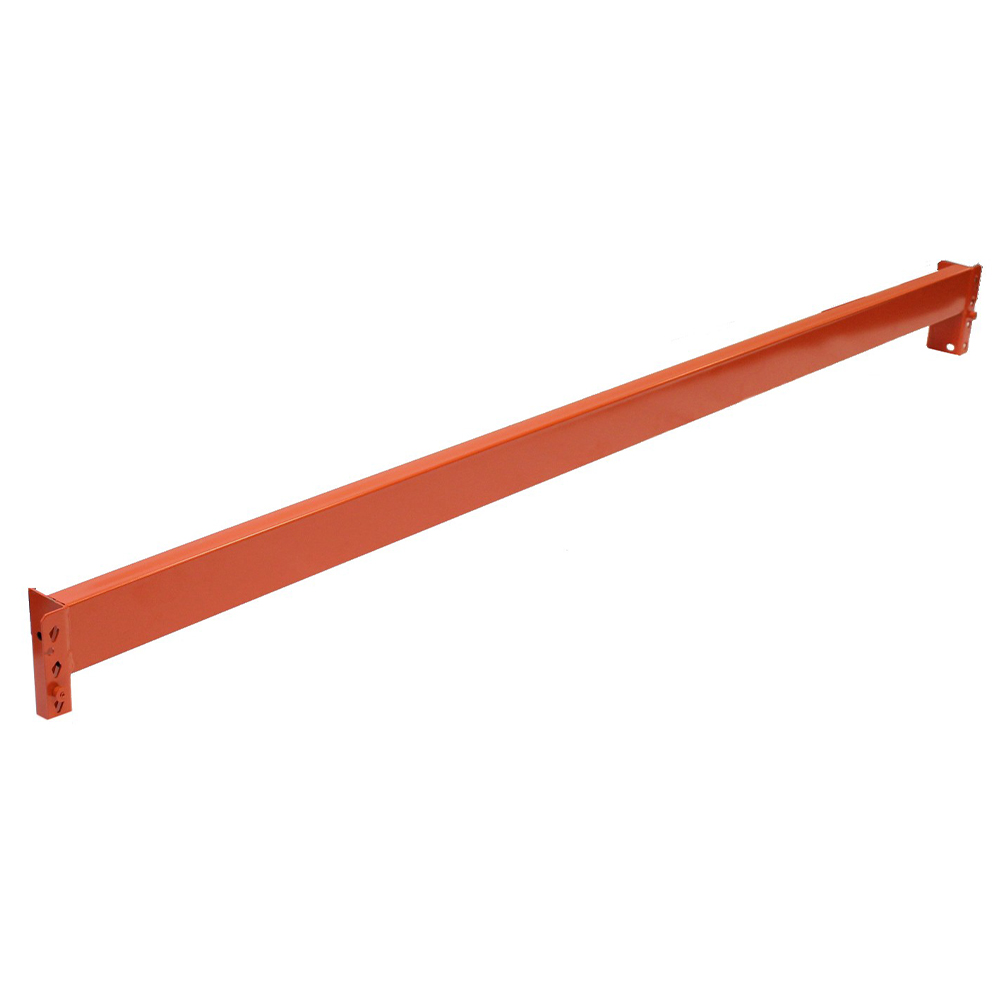

The Interlake Mecalux 96" heavy-duty orange non-slotted pallet rack beam is a key horizontal element used to construct a safe, load-bearing pallet storage system compatible with Interlake Mecalux tear drop uprights (frames sold separately). Formed from a single piece of steel with a welded base seam, this beam works in pairs to create load levels and features end plates that slot into the tear drop upright frames. A two-safety, sprung-loaded locking mechanism secures the beam to the frame, and the piston lock design helps prevent unintended displacement, contributing to rack integrity in demanding environments.
Constructed as a 16-gauge roll-formed beam with welded end plates, it is designed for use with non-seismic installations and is compatible with Interlake Mecalux tear drop bolted or welded upright pallet rack frames. The beam is finished in a durable orange powder-coated baked enamel, providing resistance to corrosion and wear while aiding visibility in busy facilities. Each beam measures 96 inches in width and 5.0 inches high, with a rated shelf capacity of 6,820 lbs, making it suitable for mid-to-heavy pallet load levels when paired with the appropriate uprights and decking.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need delivery by a specific date, please contact us prior to ordering. Expedited shipping options may be available, but order cancellation or returns may be restricted after placement.
Features:
- 96" long tear drop non-slotted pallet rack beam
- 16 GA roll-formed steel with welded end plates
- Two safety, sprung-loaded locking devices per beam
- Piston lock ensures automatic seating and locking
- Face-end plates slot into tear drop uprights
- Two beams per load level on each frame
- RMI certified; suitable for non-seismic areas
- Beam Width:
- 96"
- Beam Height:
- 5.0"
- Shelf Capacity:
- 6,820 lbs
- Color:
- Orange
- Package Size:
- Each
