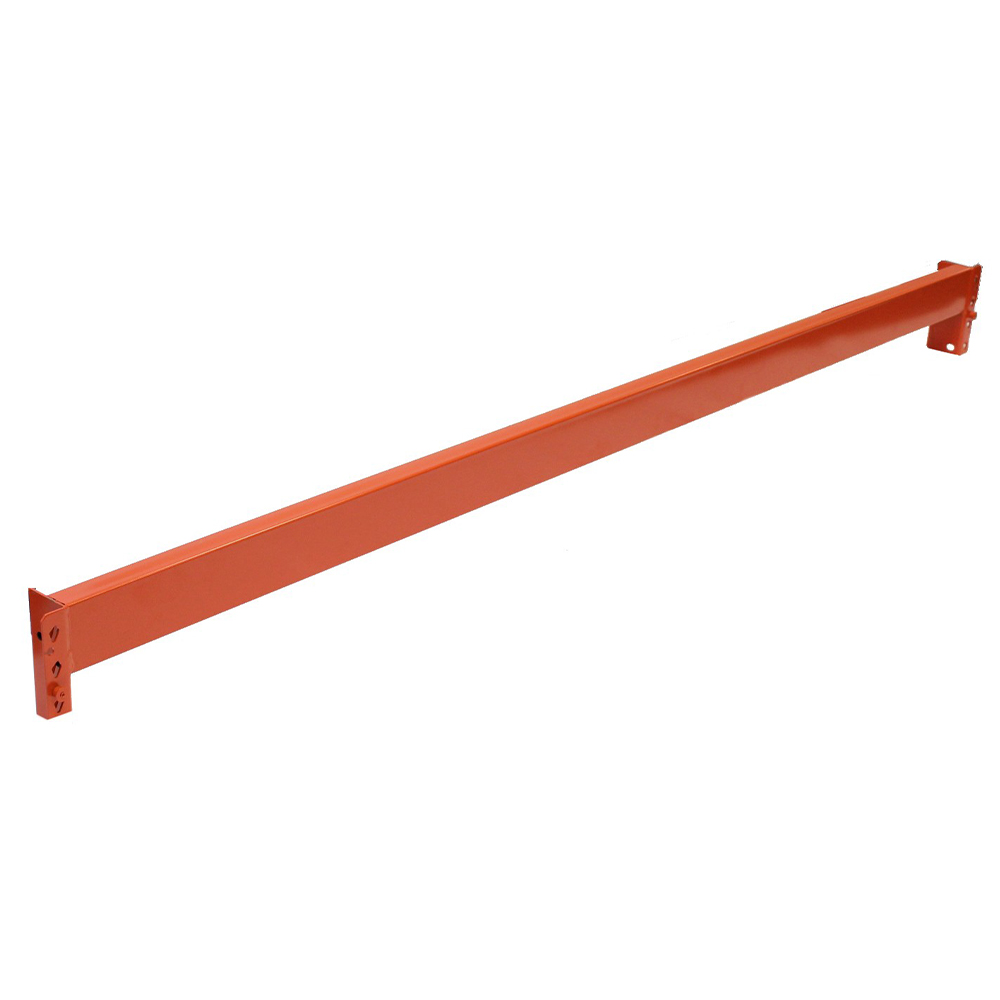

The Interlake Mecalux 96-inch orange non-slotted pallet rack beam is a heavy-duty component designed to support palletized loads within a compatible Interlake Mecalux rack system. Constructed from high-strength steel and finished with a durable powder-coated baked enamel, this beam provides a reliable, long-lasting connection for storage configurations in demanding industrial environments. The design incorporates a secure beam-to-frame connection to deter damage, tampering, and unintended disengagement, helping to maintain rack integrity during frequent use.
Each beam is formed from a single roll-formed piece of steel with a welded end plate and a tear drop profile that fits into standard Interlake Mecalux tear drop uprights. The system uses two safety, sprung-loaded locking devices per beam to seat and lock the beam automatically in the frame, reducing the risk of accidental displacement. The 2-3/4 inch wide by 1-5/8 inch tear drop step beam accommodates cross bars and decking, supporting a listed shelf capacity of 5,370 pounds per level under appropriate, compliant loading conditions. This product is specified for non-seismic area use and is RMI certified, reflecting adherence to established industry standards for pallet rack components.
Compatibility and practical considerations are important when planning a storage solution. This beam is intended for use with Interlake Mecalux tear drop bolted or welded upright pallet rack frames and is sold as a single beam with the appropriate end plates and locking hardware as part of a larger rack system. Note that this item is not stocked in our warehouse, so processing times, availability, and delivery options may vary. If you have a target delivery date, contact us before ordering to confirm options; expedited shipping may be available, but cancellations or returns after order placement may be limited.
Features:
- 96" long non-slotted pallet rack beam
- 4.0" beam height with 16 GA roll-formed construction
- Welded end plates and tear drop compatibility
- Two safety, sprung-loaded locking devices per beam
- Piston lock connection for automatic seating and security
- Color: Orange; suitable for tear drop bolted or welded uprights
- RMI certified for non-seismic areas
- Beam Width:
- 96"
- Beam Height:
- 4.0"
- Shelf Capacity:
- 5,370 lbs
- Color:
- Orange
- Package Size:
- Each
