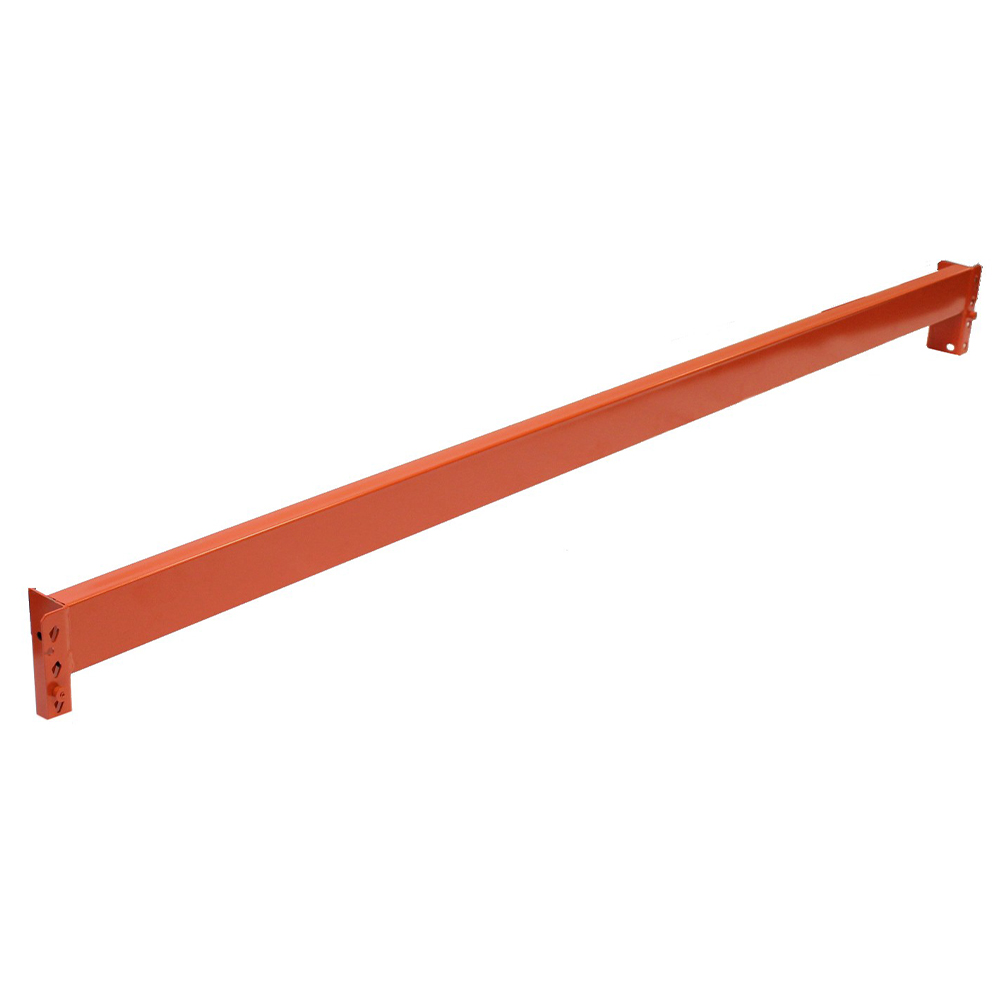

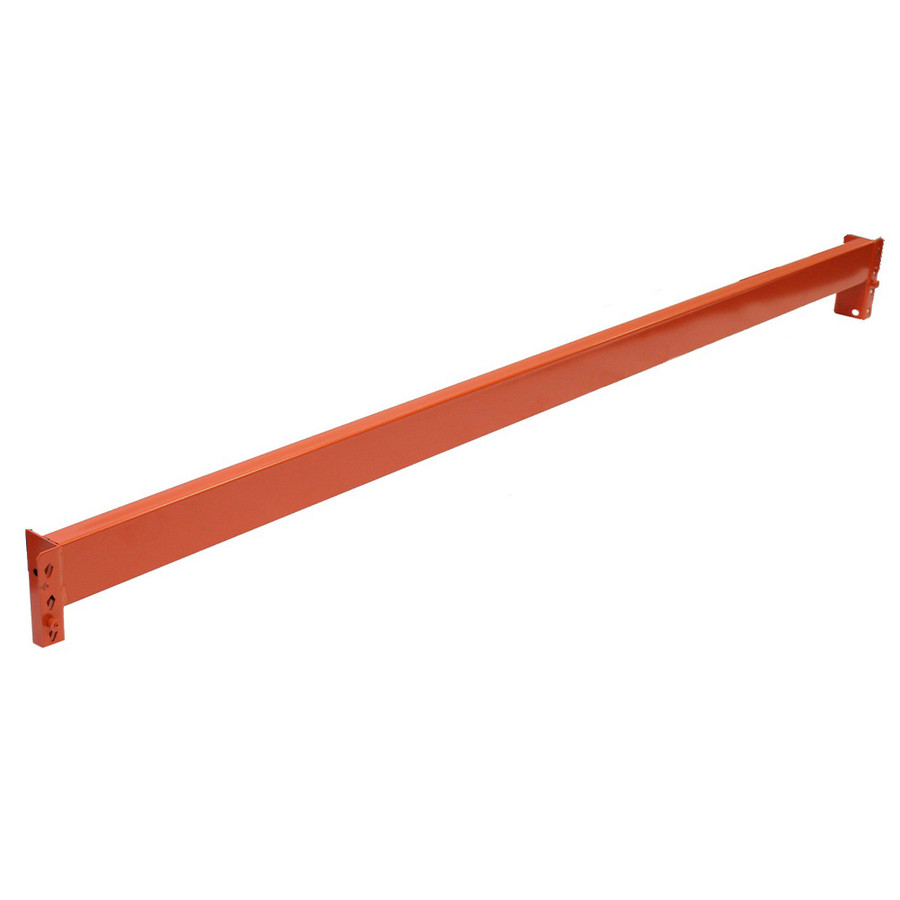

The Interlake Mecalux 108-inch orange non-slotted pallet rack beam is a key component for building a durable pallet storage system. Designed to work with Interlake Mecalux pallet rack frames, this beam supports loads across one level and is constructed as a single roll-formed piece of steel with a welded base and end plates. Its tear drop end plates slot into the face of tear drop uprights and, when paired with the appropriate frames, provides a secure beam-to-frame connection to help prevent accidental displacement during use.
Measuring 108 inches in length and 4.5 inches in height, the beam accommodates typical pallet loads with a rated shelf capacity of 5,380 lbs, making it suitable for demanding industrial storage environments. The assembly includes two safety, sprung-loaded locking devices per beam and utilizes a piston lock mechanism that seats and locks automatically, contributing to a straightforward, reliable installation while reducing the risk of beam disengagement. The finish is a powder-coated, baked enamel in a visible orange color, chosen for visibility and durability in busy facilities.
Considerations for use include compatibility with non-seismic installations and the need to confirm stock availability since this item is not stocked in the warehouse, which can affect processing and transit times. It’s important to verify delivery timing with the supplier prior to ordering; expedited shipping may be available but cancellations or returns may be restricted once the order is placed. This product is RMI-certified and intended for use with Interlake Mecalux tear drop upright frames or bolted/welded frames designed for tear drop connection.
Features:
- Non-slotted tear drop pallet rack beams for tear drop uprights
- One roll-formed piece of steel with continuous seam weld
- Welded end plates; end plates slot into tear drop upright frame
- Two safety sprung-loaded locking devices per beam
- Piston lock frame-to-beam connection seats and locks automatically
- 2-3/4" W x 1-5/8" tear drop step beams for cross bars and decking
- Rated for use in non-seismic areas; RMI certified
- Beam Width:
- 108"
- Beam Height:
- 4.5"
- Shelf Capacity:
- 5,380 lbs
- Color:
- Orange
- Package Size:
- Each
