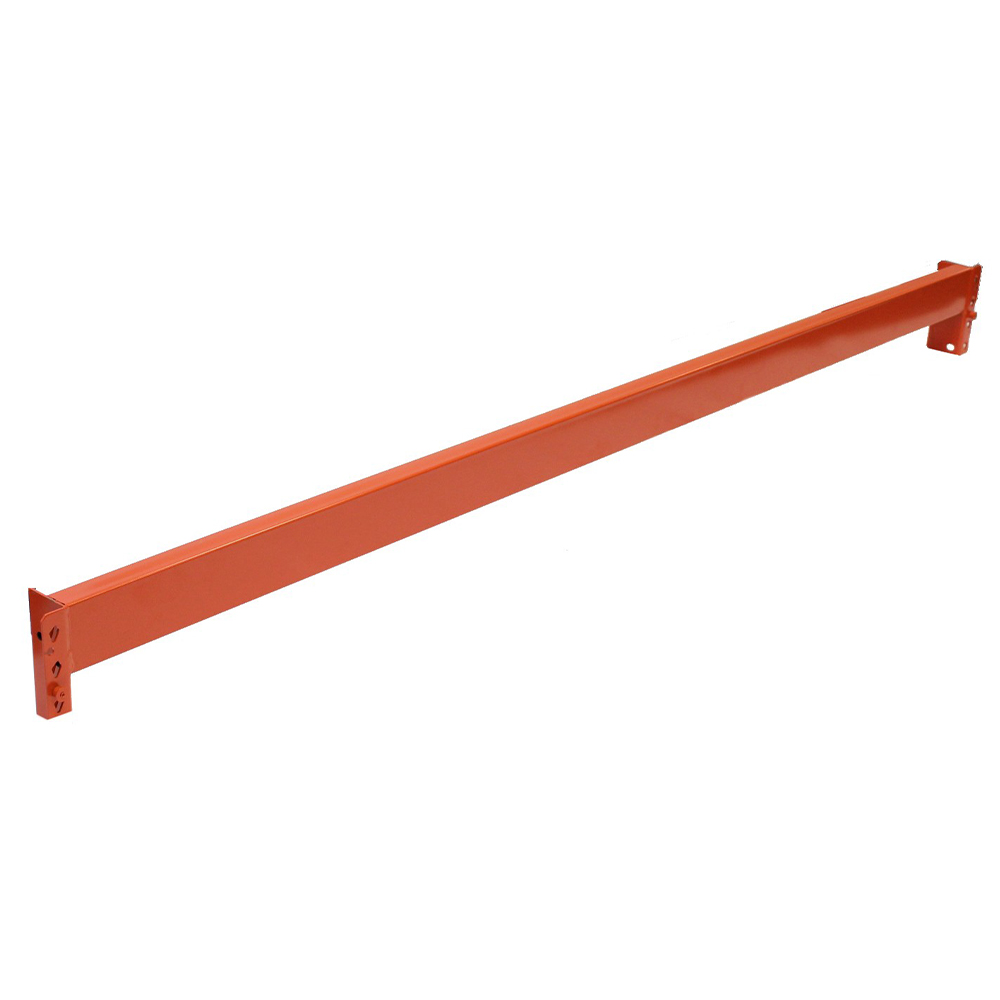

The INTIB27ET04800RCA2000 is an Interlake Mecalux 48-inch long non-slotted pallet rack beam designed to be used with compatible Interlake Mecalux tear-drop upright frames. This beam is a single-piece, roll-formed steel component with a welded end plate and a continuous seam weld at the base, delivering a strong, secure connection for rack systems. Its tear-drop end plates slot into the upright frame and are retained by two safety, sprung-loaded locking devices per beam, providing a piston-style frame-to-beam connection that helps resist unintended displacement in demanding storage environments. The beam features a 2.75-inch height, and a 2-3/4 inch wide tear-drop profile that accommodates cross bars and decking, with a rated shelf capacity of 5,610 lbs per level in appropriate, non-seismic applications. The color is orange, and the beam is manufactured to comply with industry standards for pallet rack construction. As with all Interlake Mecalux components, this beam is intended to integrate with compatible frames and uprights sold separately, ensuring a stable and modular storage solution. Please note this item is not stocked in our warehouse, so processing times and availability can vary; if you have a required delivery date, contact us before ordering to discuss options. Expedited shipping may be available, but order cancellations or returns may not be feasible once placed.
Features:
- 48" beam width for pallet rack systems
- 2-3/4" W x 1-5/8" tear drop profile
- 16 GA roll-formed beam with welded end plates
- Two safety, sprung-loaded locking devices per beam
- Piston lock frame-to-beam connection for automatic seating and locking
- Designed for use with tear drop upright frames (bolted or welded)
- RMI certified; non-seismic area use only
- Beam Width:
- 48"
- Beam Height:
- 2.75"
- Shelf Capacity:
- 5,610 lbs
- Color:
- Orange
- Package Size:
- Each
