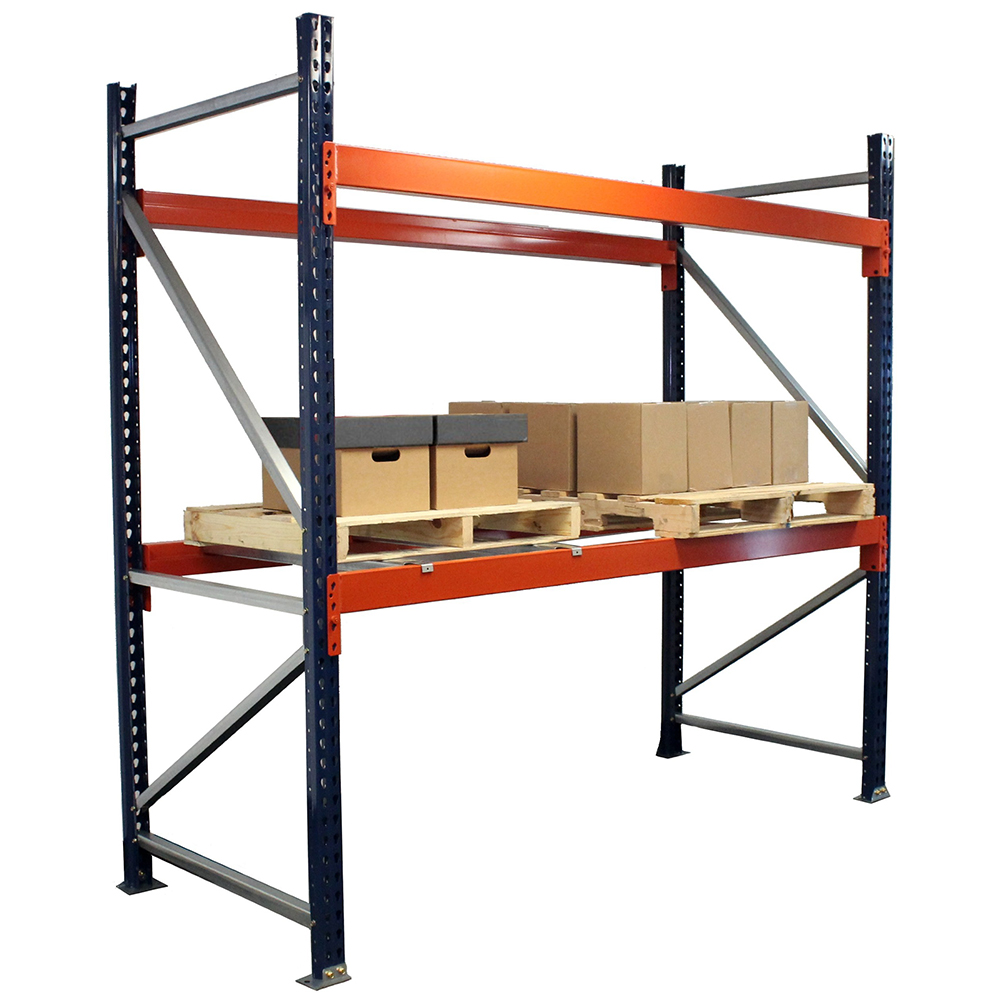

The Interlake Mecalux 3141444259E144S blue bolted teardrop pallet rack starter is a pre-configured storage solution designed for flexible, accessible pallet handling in demanding warehouses. This starter unit combines two upright frames with two pairs of shelf beams, creating a ready-to-install foundation for selective pallet storage. Built from high-strength bolt-together steel, the system uses tear-drop perforations on the uprights to allow shelf adjustments at 2-inch increments, enabling quick resizing as product mixes change. The orange beams feature a piston-lock connection that automatically seats and locks, helping prevent accidental beam displacement and enhancing on-site stability during routine handling and stock movement.
A notable construction detail is the use of a cataphoresis-based electro-chemical coating applied to the uprights and components, which provides corrosion resistance and uniform coverage across surfaces. This treatment supports long-term durability in environments where moisture, salt, or humidity may affect metal rack systems. The package is offered as a kit, with standard pre-punched footplates for straightforward anchoring to the floor, and it accommodates wire decking and other accessories in the 1-5/8 inch beam spacing, expanding its versatility to suit a variety of product geometries.
Before purchasing, note that this item is not stocked in our warehouse, so processing times and stock availability may vary. It is designed for non-seismic areas and is intended as an assembled bolted starter unit that can be expanded with additional Interlake Mecalux racking components. If you require a specific delivery date, contact us prior to placing the order to discuss options and potential lead times.
Features:
- Versatile bolted pallet rack starter unit with two uprights and two beam levels
- Tear drop uprights for 2" shelf adjustments
- Cataphoresis coating provides anti-corrosion protection

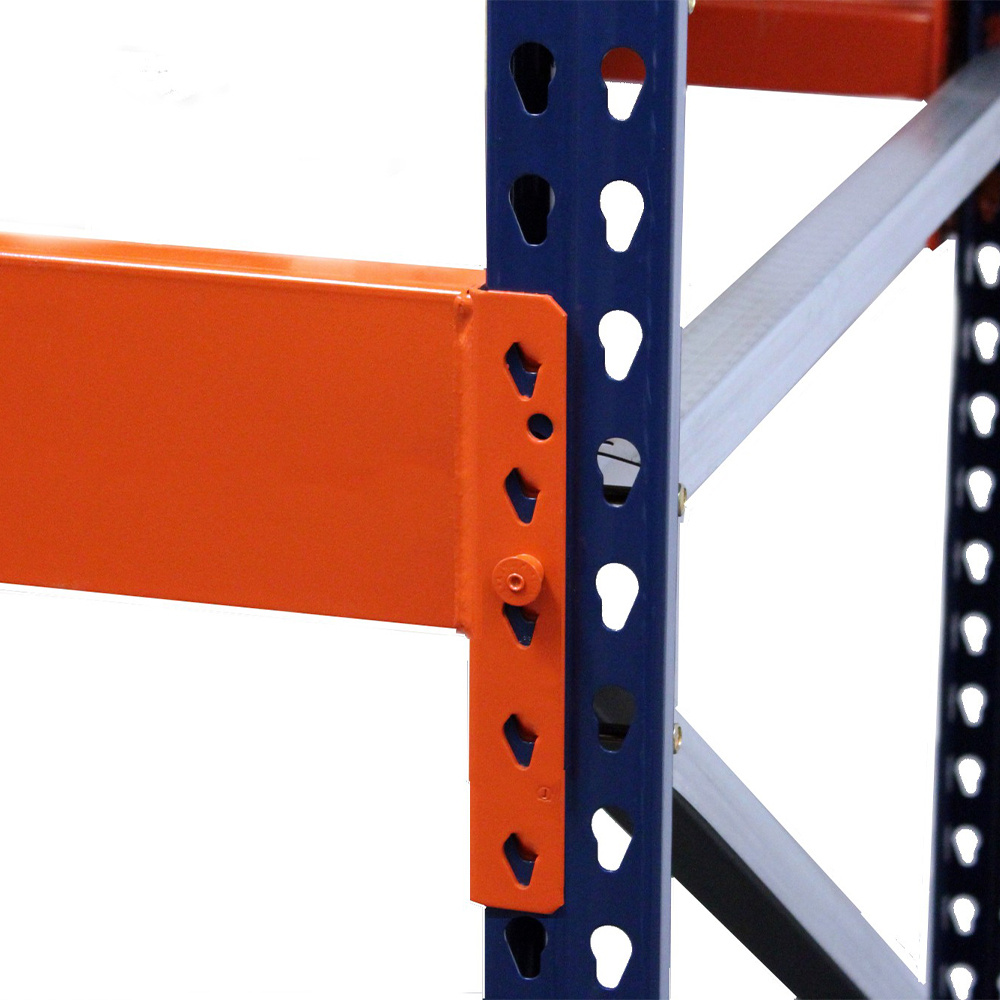

- Orange beams with piston lock connection to prevent displacement
- Tamper-resistant, secure beam-to-frame interface
- 1-5/8" beam step accommodates decking and accessories
- RMI-certified bolted pallet rack starter unit
- Depth:
- 42"
- Height:
- 144"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 144"
- Beam Height:
- 5.93"
- Shelf Capacity:
- 6,250 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
