The Interlake Mecalux 314964259E144S is a blue/orange bolted teardrop pallet rack starter designed for heavy-duty warehouse storage. This assembled starter unit provides direct-access pallet racking with two upright frames and two pairs of shelf beams, enabling straightforward stock management in busy industrial environments. The design supports wide-span beams and a piston-lock frame-to-beam connection, which helps stabilize the configuration and reduces the risk of beam displacement during handling and shifting loads.
Constructed from high-strength steel with a cataphoresis coating and powder finish, the upright columns feature tear-drop perforations that allow shelf adjustments in 2-inch increments, while standard pre-punched footplates ease anchoring to a solid floor foundation. The orange beams accommodate wire decking and accessories through a 1-5/8 inch step, expanding the rack’s versatility to fit different product sizes and handling needs. The system is RMI-certified, reflecting adherence to industry-acknowledged rack standards and engineering practices.
This starter unit is intended for non-seismic contexts and requires additional components to expand capacity or adapt to varying inventory. Because the item is not stocked in the warehouse, processing and transit times may vary, and availability or cancellation terms may apply. When planning a project, confirm lead times and compatibility with other Interlake Mecalux racking elements to ensure a seamless, scalable storage solution for wide assortments of pallets and case goods.
Features:

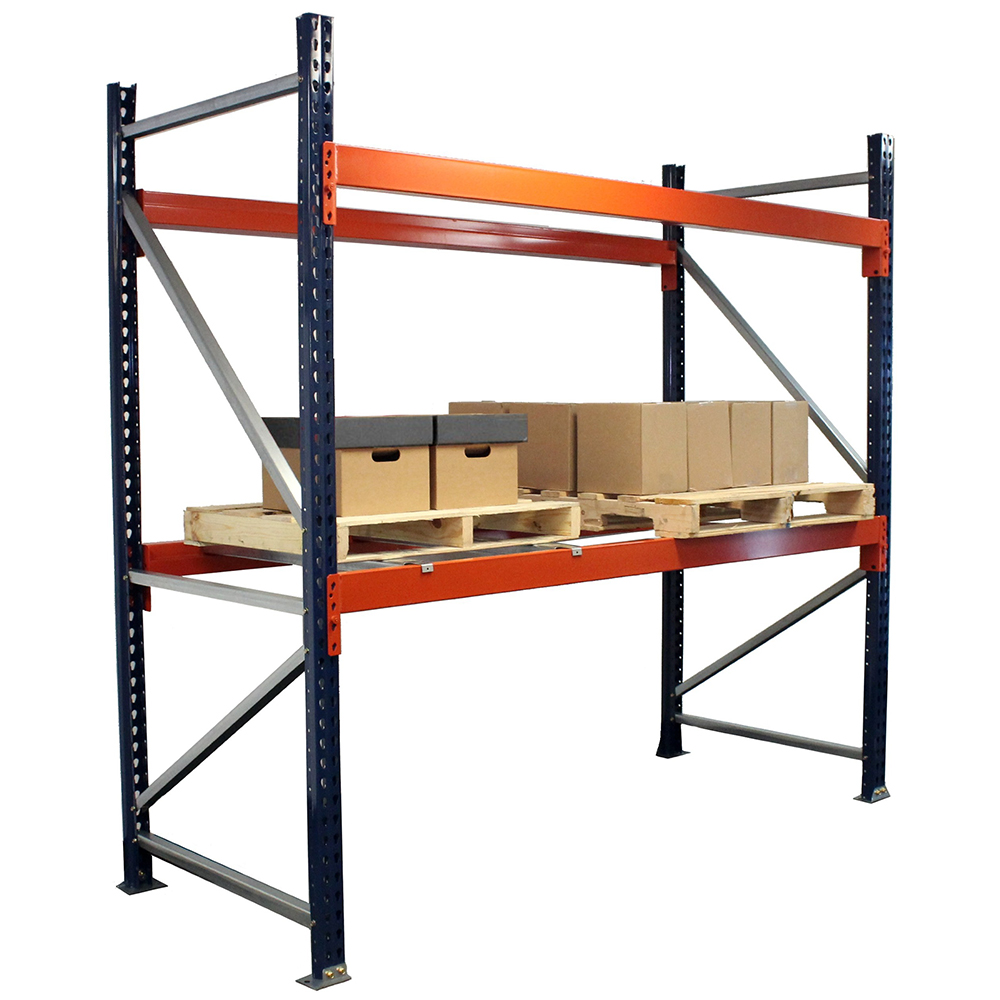

- Assembled bolted pallet rack starter with two uprights and two beam levels
- Tear drop uprights for 2" adjustable shelf spacing
- Cataphoresis coating provides anti‑corrosion protection and uniform thickness

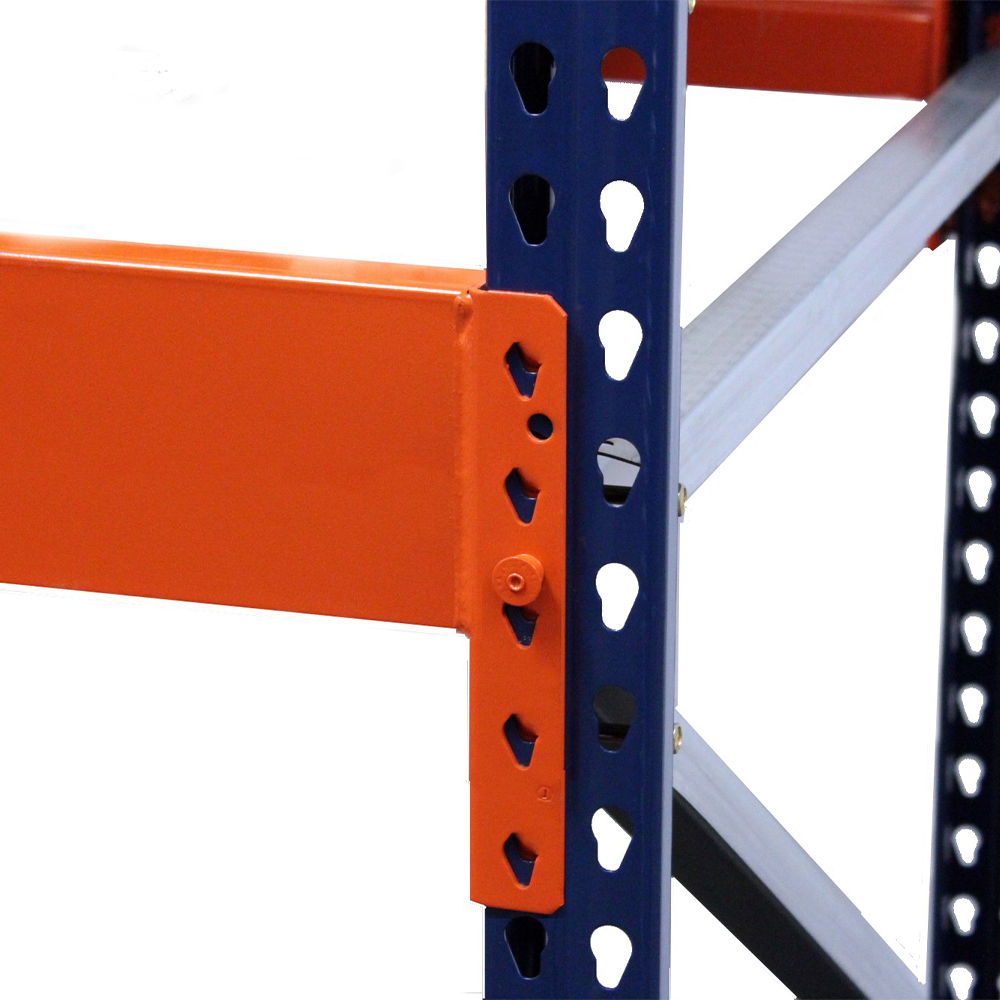

- Orange beams with piston lock for secure, automatic frame‑to‑beam connection
- Tamper‑proof, damage‑resistant locking system
- 1-5/8" step on beams accommodates wire decking and accessories
- RMI certified; non‑seismic area use only
- Depth:
- 42"
- Height:
- 96"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 144"
- Beam Height:
- 5.93"
- Shelf Capacity:
- 6,250 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
