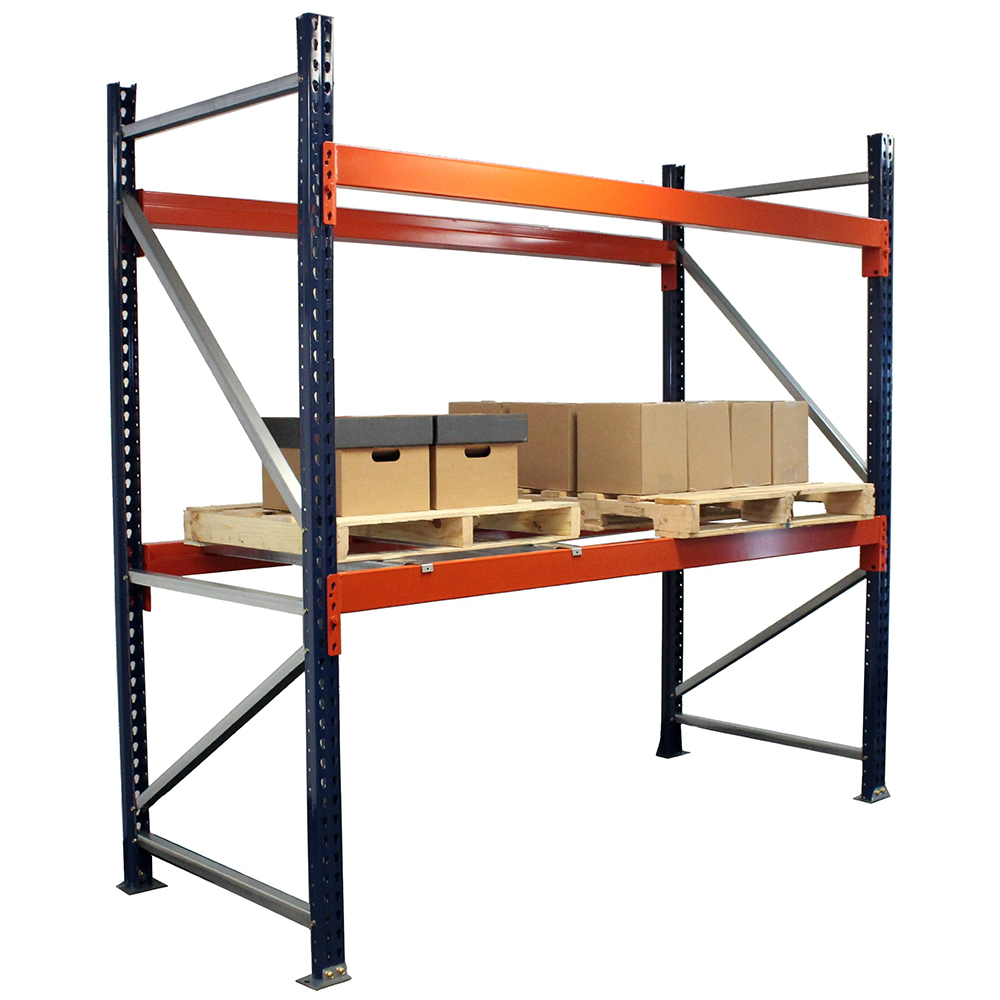

The Interlake Mecalux 3141444859E144S Blue/Orange Bolted Teardrop Starter is a heavy-duty, selective pallet rack solution designed to provide direct access to pallets in active storage areas. This starter unit includes two upright frames and two pairs of shelf beams, forming a ready-to-assemble system that can be expanded with additional racking to accommodate a wide variety of product sizes. The teardrop column perforations enable 2-inch beam-height adjustments, allowing you to tailor the setup as your inventory changes. The color combination and engineered beam-to-frame connections help promote alignment and reduce the risk of accidental displacement during daily warehouse operations.
Features:
- Versatile bolted pallet rack starter with two uprights and two beam levels
- High-strength steel uprights and beams with tear drop adjustment at 2" increments
- Cataphoresis coating for anti-corrosion protection and uniform finish

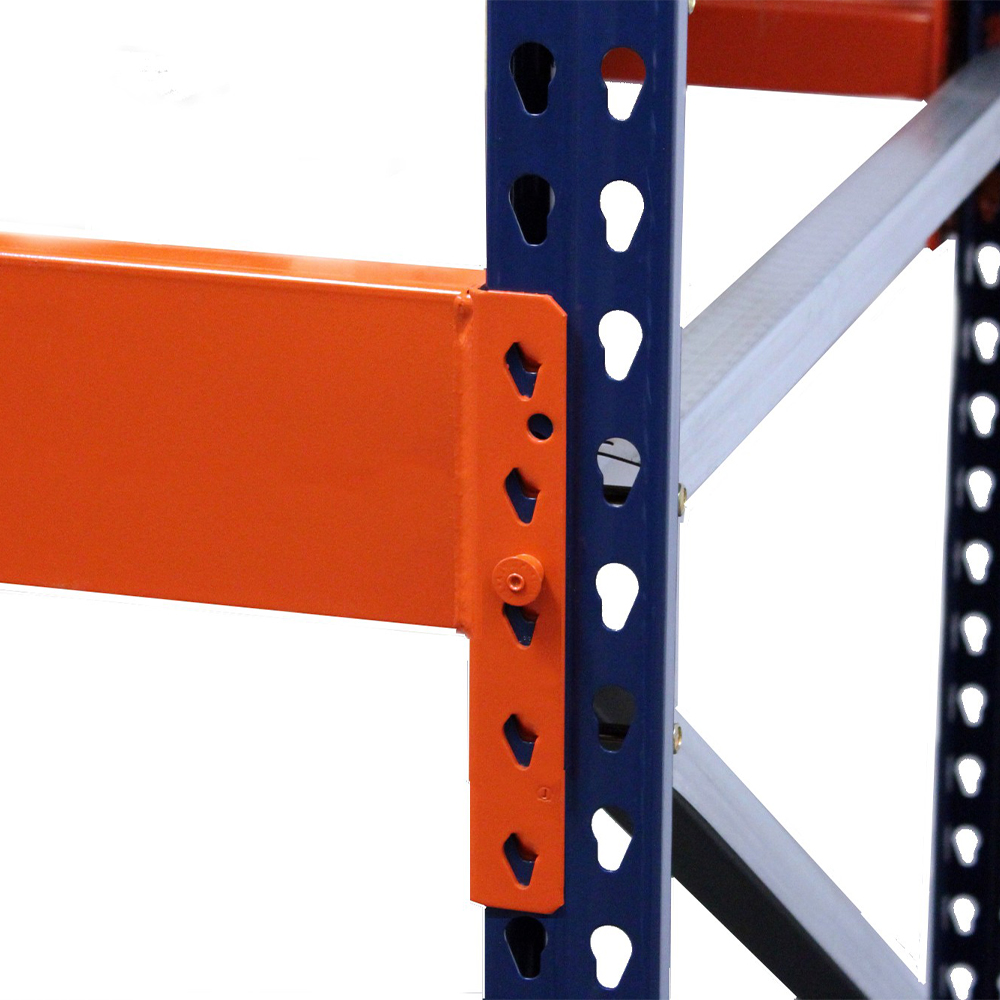

- Orange beams with piston lock for secure, tamper-proof connections
- 1-5/8" beam step accommodates wire decking and accessories
- Non-seismic use only
- RMI-certified bolted rack starter
- Depth:
- 48"
- Height:
- 144"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 144"
- Beam Height:
- 5.93"
- Shelf Capacity:
- 6,250 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
