The Interlake Mecalux 3141444245E108S blue/orange bolted teardrop pallet rack starter is a ready-to-install storage solution designed to optimize industrial warehouse space. This starter unit features two upright frames and two pairs of shelf beams, offering direct access to each pallet for efficient stock management. Constructed from high-strength steel, the components undergo a cataphoresis-based coating process that provides anti-corrosion protection and even finish, helping the system endure daily warehouse wear and tear. The orange beams employ a piston lock connection that seats and locks automatically to the frame, reducing the risk of beam displacement and simplifying assembly while maintaining a tamper-resistant connection.

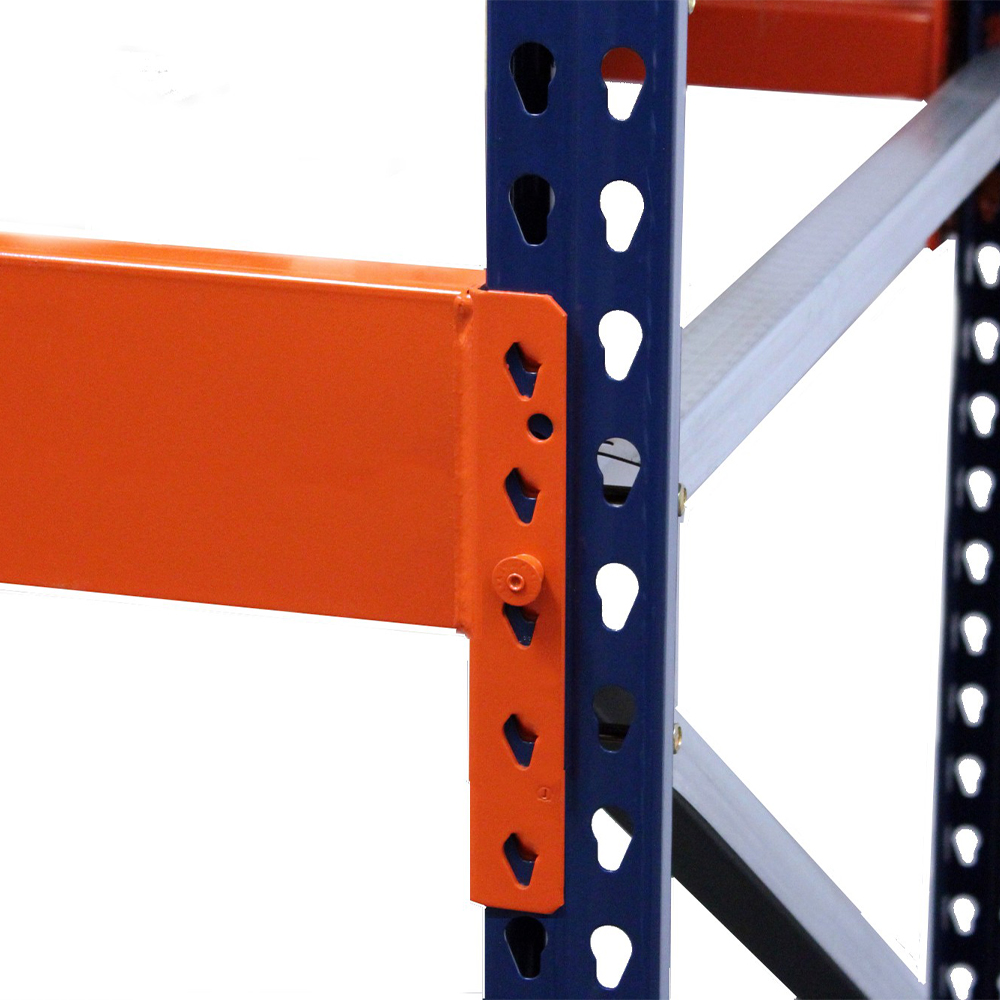

The teardrop upright columns with face perforations enable shelf adjustment in 2-inch increments, allowing you to adapt the rack configuration as product mixes change. The kit is designed for non-seismic area use and is compatible with additional Interlake Mecalux racking (sold separately) to extend storage depth and reach, making it suitable for warehouses handling a variety of product sizes. Standard, pre-punched footplates aid anchoring for a secure installation. Note that this item is not stocked in our warehouse, so processing and transit times may vary, and cancellation or return options may be limited once the order is placed.
With a total depth of 42 inches, width of 108 inches, and a height of 144 inches, the starter unit is rated for a substantial load, and the shelf capacity is 5,380 lbs per beam while the overall system can support up to 20,807 lbs at 48-inch beam spacing. This makes it a practical choice for selective access pallet storage and adaptable configurations in active warehousing environments.
Features:
- Assembled selective bolted pallet rack starter with two uprights and two beam levels
- Cathodic/cataphoresis finish provides anti-corrosion protection and uniform coating
- Tear drop uprights allow 2" incremental shelf adjustment
- Piston-lock beams prevent accidental displacement and are tamper-resistant
- 1-5/8" beam step accommodates wire decking and accessories
- pre-punched footplates for easy anchoring
- RMI certified
- Depth:
- 42"
- Height:
- 144"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 108"
- Beam Height:
- 4.50"
- Shelf Capacity:
- 5,380 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
