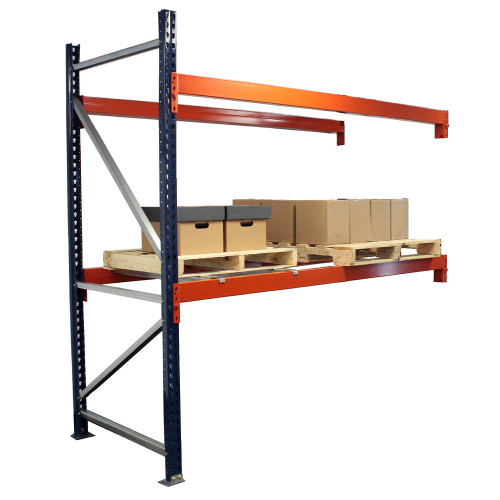

The Interlake Mecalux 3141444259E144A Blue Bolted Pallet Rack Tear Drop Add-on is a heavy-duty, ready-to-assemble storage solution designed to expand existing pallet rack systems. This tear drop starter-compatible add-on uses high-strength steel uprights and beams with a blue/orange finish, providing a robust vertical storage framework that accommodates full pallet loads with direct access for efficient stock management. The unit is built to support demanding industrial environments and features a derailment-resistant, piston-lock connection between beam and frame to minimize accidental disengagement and beam movement during operation.
Constructed through a cataphoresis electrochemical coating process, the components benefit from enhanced anti-corrosion protection and consistent coating thickness across all surfaces, helping parts withstand daily warehouse wear. The orange beams are designed with a piston-lock mechanism and 1-5/8 inch step spacing to accommodate wire decking and accessories, enabling flexible configuration as product mixes and storage needs evolve. The uprights feature tear-drop perforations for precise 2-inch beam adjustments, which simplifies height and depth changes without disassembly.
This kit includes two upright frames and two sets of beam shelf levels, making it suitable as a modular expansion to established Interlake Mecalux rack systems. It’s important to note that, per the supplier, stock levels and transit times may vary since the item is not always stocked in the warehouse, and cancellations or returns after order placement may be restricted. Confirm availability and delivery expectations prior to purchase if you have a strict deadline. Compatibility with existing systems should be verified, and installation should follow standard assembly practices for bolted pallet rack systems to ensure safe, level operation.
Features:
- Pre-configured starter unit with two uprights and two beams for quick warehouse setup
- High-strength steel construction with tear drop perforations for 2" shelf adjustments
- Cataphoresis electro-chemical coating provides anti-corrosion protection
- Piston-lock beam connections prevent accidental displacement
- 1-5/8" step accommodates wire decking and accessories
- Non-seismic area use only
- RMI certified for added reliability
- Depth:
- 42"
- Height:
- 144"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 144"
- Beam Height:
- 5.93"
- Shelf Capacity:
- 6,250 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
