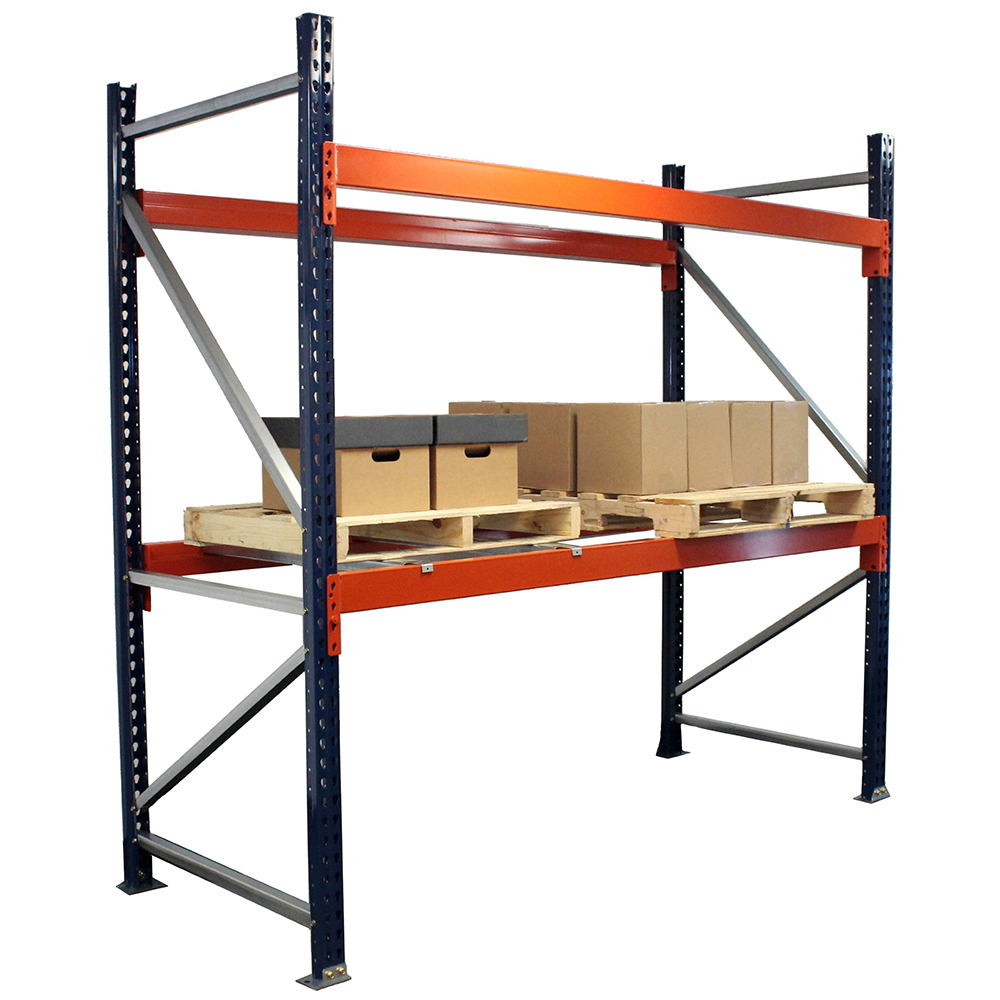

The Interlake Mecalux 3141444240E96S Blue Bolted Pallet Rack Starter is a ready-to-order storage solution designed for warehouses needing flexible, high-capacity pallet handling. This starter unit includes two uprights and two pairs of shelf beams, forming a selective bolted pallet rack configuration that supports direct access to pallets for efficient stock management. Built to operate in demanding environments, the components are fabricated from high-strength steel and finished with a cataphoresis-based coating process to provide corrosion resistance and even layer thickness across surfaces.
The orange beams feature a piston lock connection that automatically seats and locks to the frame, helping prevent accidental beam displacement and tampering. This design enhances stability while allowing for adjustable shelving at 2-inch increments to accommodate different palletized products. The teardrop upright perforations enable easy beam height adjustments, contributing to a versatile storage footprint that can be tailored as inventory needs evolve. Standard footplates simplify anchoring during installation, and the assembly is described as straightforward, making it feasible to configure within a warehouse environment that requires reliable, modular racking.
Applications for this starter unit span a range of bulk storage scenarios where wide-span beam configurations and accessible pallet handling are advantageous. The stated specifications indicate a depth of 42 inches, a height of 144 inches, a beam length of 96 inches, and a shelf capacity of 5,370 pounds with a total system weight capacity of 20,807 pounds at 48-inch beam spacing, though exact performance will depend on site installation and load distribution. Note that item availability and delivery timelines can vary since this item is not stocked in all warehouses; confirm lead times and delivery options before ordering. The unit is intended for non-seismic areas and is RMI-certified, reflecting adherence to recognized rack safety standards.
Features:
- Includes two uprights and two beam levels for easy configuration
- Tear drop perforations enable 2" shelf adjustments
- Cataphoresis coating provides anti-corrosion protection

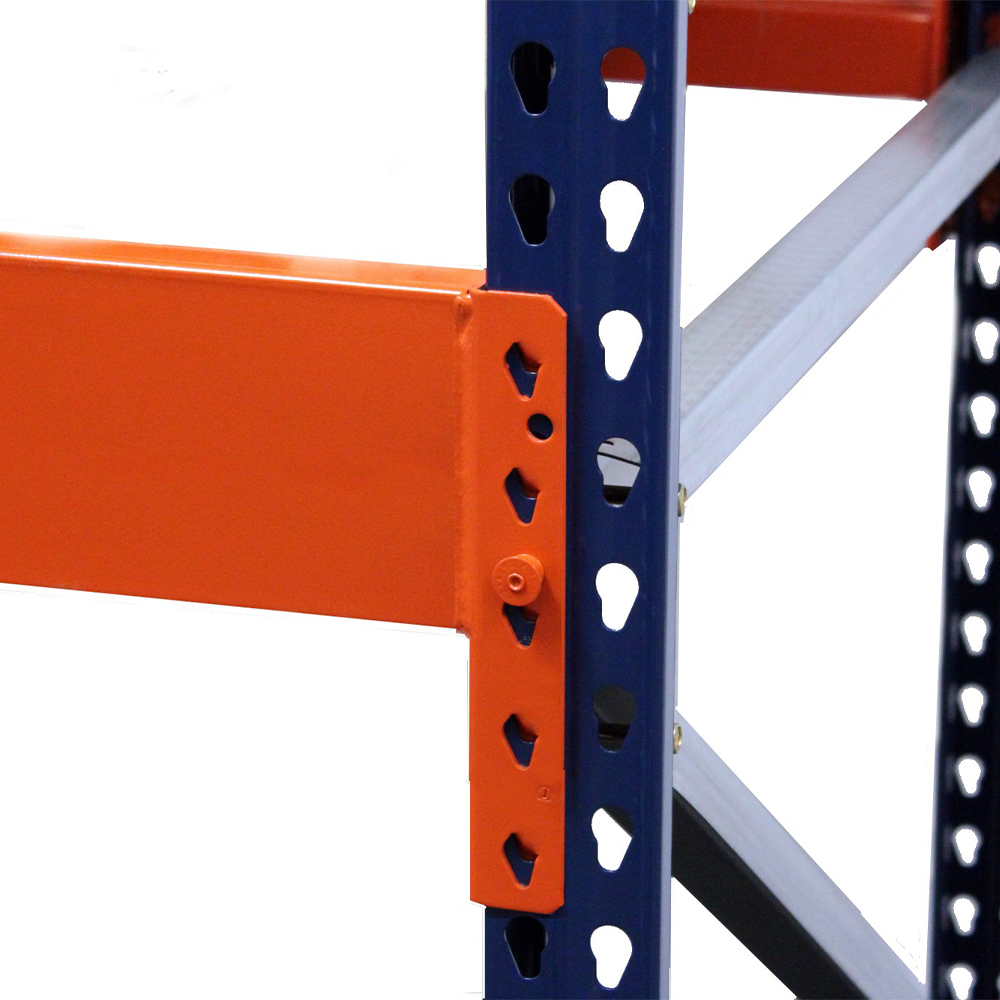

- Orange beams with piston lock connection for automatic seating and safety
- Damper- and tamper-proof piston lock system
- 1-5/8" beam step accommodates wire decking and accessories
- RMI certified and easy assembly
- Depth:
- 42"
- Height:
- 144"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 96"
- Beam Height:
- 4.00"
- Shelf Capacity:
- 5,370 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
