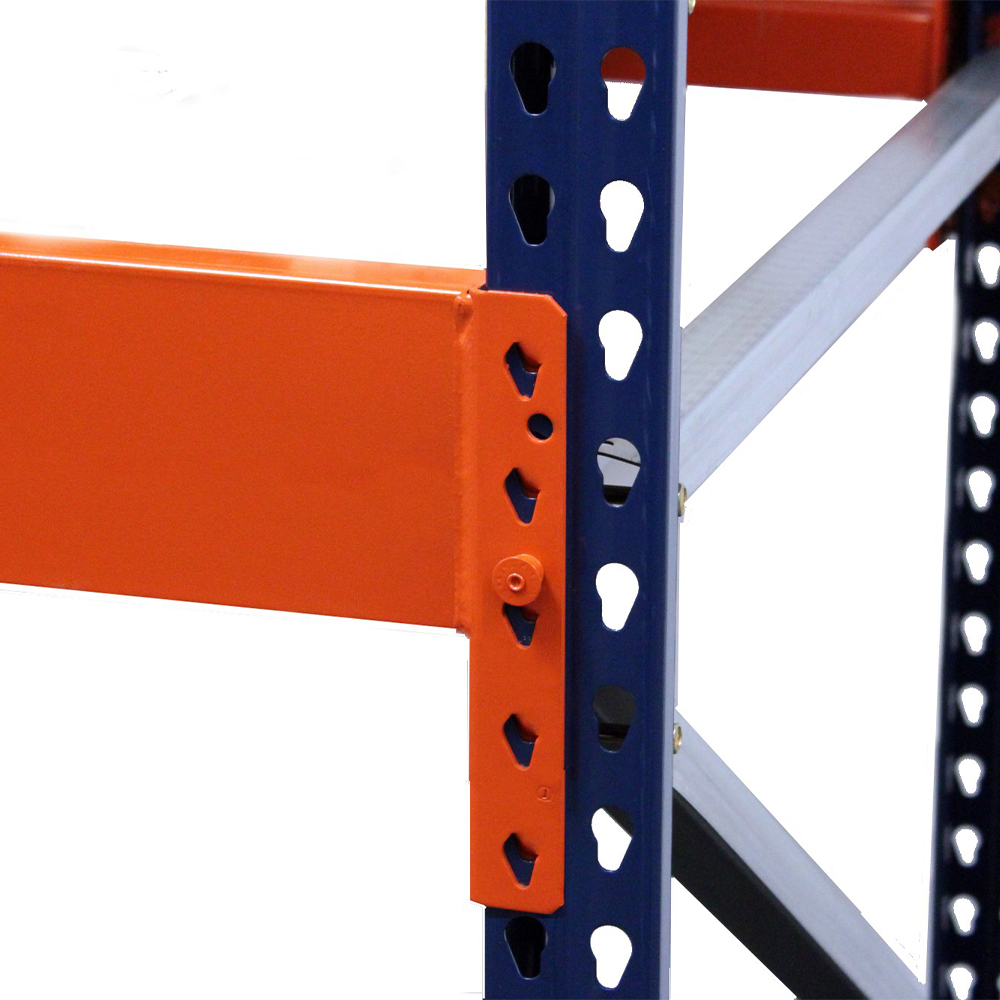

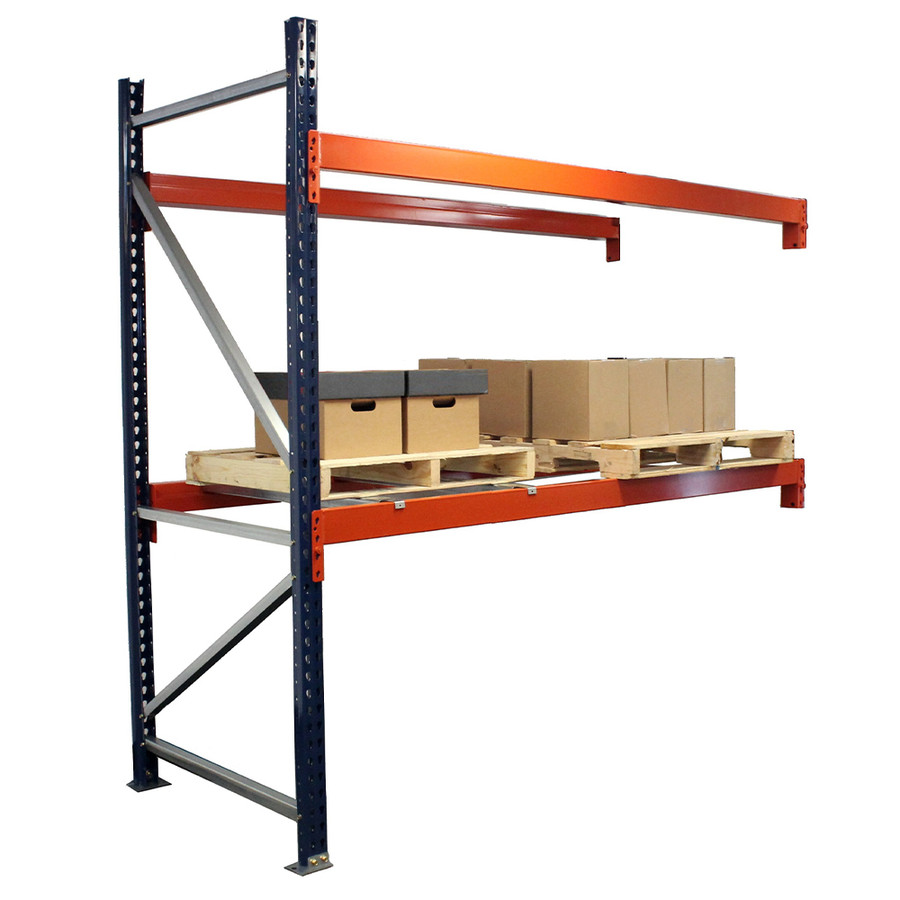

The Interlake Mecalux 3141204845E108A Blue Bolted Pallet Rack Tear Drop Add-on is a heavy-duty, bolted storage solution designed to expand a warehouse’s selective pallet rack system. This add-on unit features two upright frames and two pairs of shelf beams in a blue/orange color scheme, enabling direct access to pallets for straightforward stock management. The tear drop uprights and high-strength steel beams are assembled with a piston lock frame-to-beam connection that engages automatically, helping reduce the risk of beam displacement and tampering. The assembly uses a cataphoresis electro-chemical coating process, which provides corrosion resistance and consistent maintenance of finish in demanding industrial environments. Beams include a 1-5/8 inch step to accommodate wire decking or other accessories, expanding its versatility for different pallet configurations.
Constructed for flexibility and durability, this starter unit supports wide-span configurations with adjustable shelf positions at 2-inch increments, thanks to tear drop face perforations on the upright columns. The unit is designed as a bolted rack starter, which means it ships as a pre-configured set that can be integrated with additional Interlake Mecalux racking (sold separately) to fit a variety of inventory profiles. For users planning cross-docking, high-throughput receiving, or multi-item storage, this unit provides accessible pallet handling while maintaining a stable footprint under load. It is specified for non-seismic areas and emphasizes straightforward assembly for installation teams.
Key sizing and load characteristics include a 108-inch beam width, 48-inch depth, and 120-inch height frame, with a documented total weight capacity of 20,807 pounds at 48-inch beam spacing and a shelf capacity of 5,380 pounds. This item is not stocked in all warehouses, so processing times and stock availability may vary; customers should confirm delivery timelines and explore expedited options if critical. The package is a kit, aligning with the intended add-on role to extend existing racking configurations.
Features:
- Assembled bolted pallet rack starter unit with two uprights and two beam levels
- Tear drop perforations enable 2" shelf adjustments
- Cataphoresis coating provides anti-corrosion protection and uniform coating
- Orange beams with piston-lock connection for secure, auto-locking operation
- 1-5/8" step on beams for wire decking and accessories
- Non-seismic use only
- RMI certified pallet rack components
- Depth:
- 48"
- Height:
- 120"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 108"
- Beam Height:
- 4.50"
- Shelf Capacity:
- 5,380 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
