The Interlake Mecalux 3141204840E96A Blue Bolted Pallet Rack Tear Drop Add-on is a pre-configured starter unit designed to extend and organize industrial storage with strong, selectable pallet rack components. This kit includes two upright frames and two pairs of shelf beams, forming a complete bolted tear-drop pallet rack starter for easy assembly and immediate use when paired with additional Interlake Mecalux racking (sold separately).

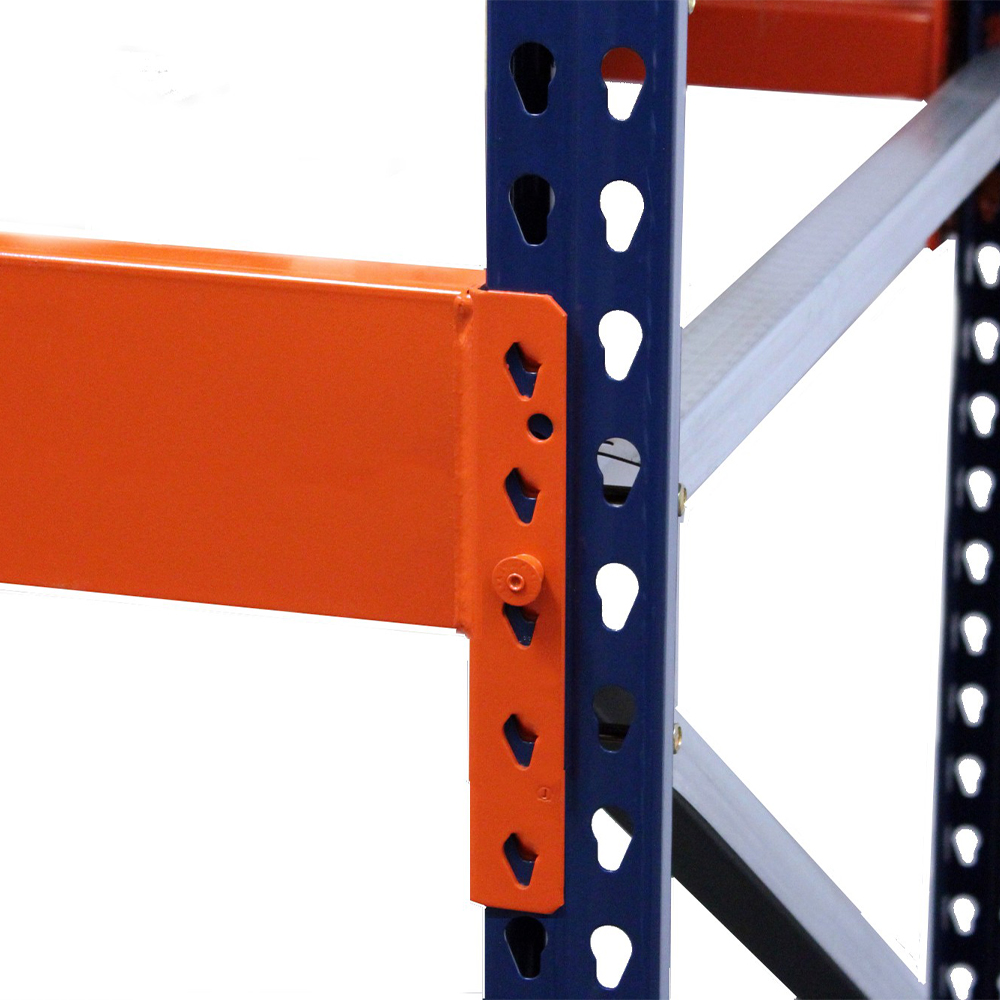

Constructed from high-strength steel and finished with a cataphoresis coating through an electro-chemical process, the unit provides corrosion resistance and uniform coating thickness, helping endure daily warehouse wear. The orange beams feature piston-lock connections that automatically seat and lock at the frame-to-beam interface, providing a secure connection and protection against accidental disengagement. A 1-5/8 inch step on the beams accepts wire decking and other compatible accessories, enabling flexible configuration to accommodate different pallet sizes and product types.
Practical use of this bolt-on starter unit centers on reliable, direct-access storage where fast stock handling is important. The tear-drop upright columns include 2-inch increment adjustment through tear-drop perforations, enabling precise shelf positioning as your inventory needs evolve. While designed for non-seismic environments, this system is RMI-certified, reflecting adherence to established rack manufacturing standards. Users should plan for kit-level installation considerations, verify compatible decking and accessories, and note that stock availability and processing times may vary since this item is not always held in warehouse inventory.
Specifications indicate a 96" beam width, 48" depth, and 120" height configuration, with a substantial 20,807 lb capacity at 48" beam spacing and 5,370 lb per shelf, suitable for a range of warehoused pallets. Packaged as a complete kit, it’s intended to be combined with additional racking to customize the overall storage footprint. Proper anchoring via standard, pre-punched footplates supports secure placement once installed.
Features:
- Two upright frames and two beam shelf levels per starter kit
- Tear drop perforations allow 2" incremental shelf adjustments
- Cataphoresis electro-chemical coating provides anti-corrosion protection
- Orange beams with piston-lock connection for secure, automatic engagement
- 1-5/8" beam step accommodates wire decking and accessories
- Non-seismic area application
- RMI certified
- Depth:
- 48"
- Height:
- 120"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 96"
- Beam Height:
- 4.00"
- Shelf Capacity:
- 5,370 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
