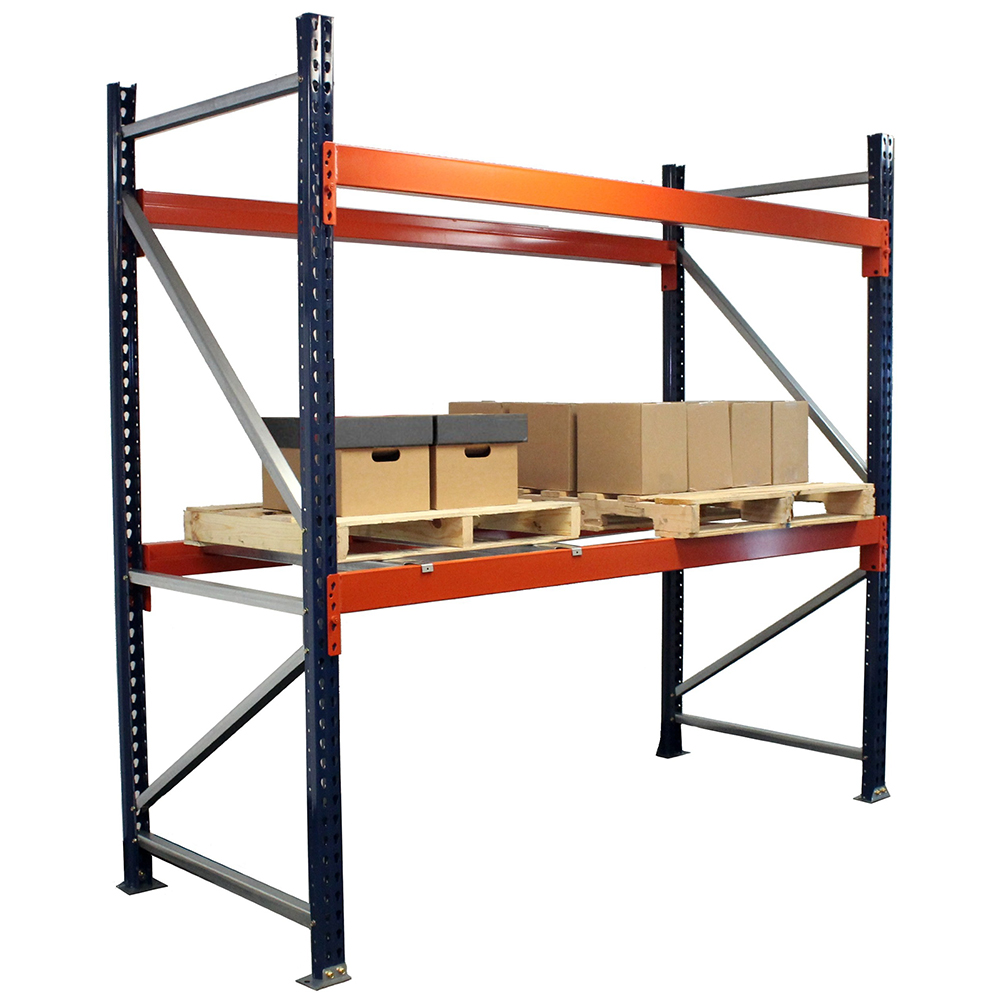

The Interlake Mecalux 3141204845E108S Blue Bolted Pallet Rack Tear Drop Starter provides a ready-to-install two-upright, two-beam storage solution designed to support wide varieties of palletized goods in demanding warehouses. This starter unit is constructed from high-strength steel with a tear-drop column profile and a powder-coated baked enamel finish, reflecting the brand’s emphasis on durability and corrosion resistance in industrial environments. The orange beams feature a piston-lock connection that engages automatically at the beam-to-frame interface, helping prevent accidental displacement and simplifying assembly while improving overall rack integrity.
The starter includes two upright frames and two pairs of shelf beams, offering direct pallet access and straightforward stock management. Beams are designed to accommodate 1-5/8 inch wide accessories to expand storage options, and the tear-drop perforations on the uprights allow 2-inch incremental shelf adjustments to tailor the rack to changing product dimensions. This unit is RMI-certified and assembled as a bolted rack starter, reflecting its suitability for scalable, modular warehouse systems.
Operationally, this starter is sized for a depth of 48 inches, a height of 120 inches, and a beam span of 108 inches, with a listed shelf capacity of 5,380 pounds and a total system capacity of 20,807 pounds at the specified 48-inch beam spacing. It is designed for non-seismic zones and emphasizes straightforward anchoring with standard pre-punched footplates. When paired with additional Interlake Mecalux components (sold separately), the starter supports flexible configurations to adapt to a wide range of product types and warehouse layouts.
Features:
- Assembled bolted pallet rack starter unit with two uprights and two beam levels
- Tear drop uprights with 2" adjustment increments
- Cataphoresis paint process provides anti-corrosion protection and even coating

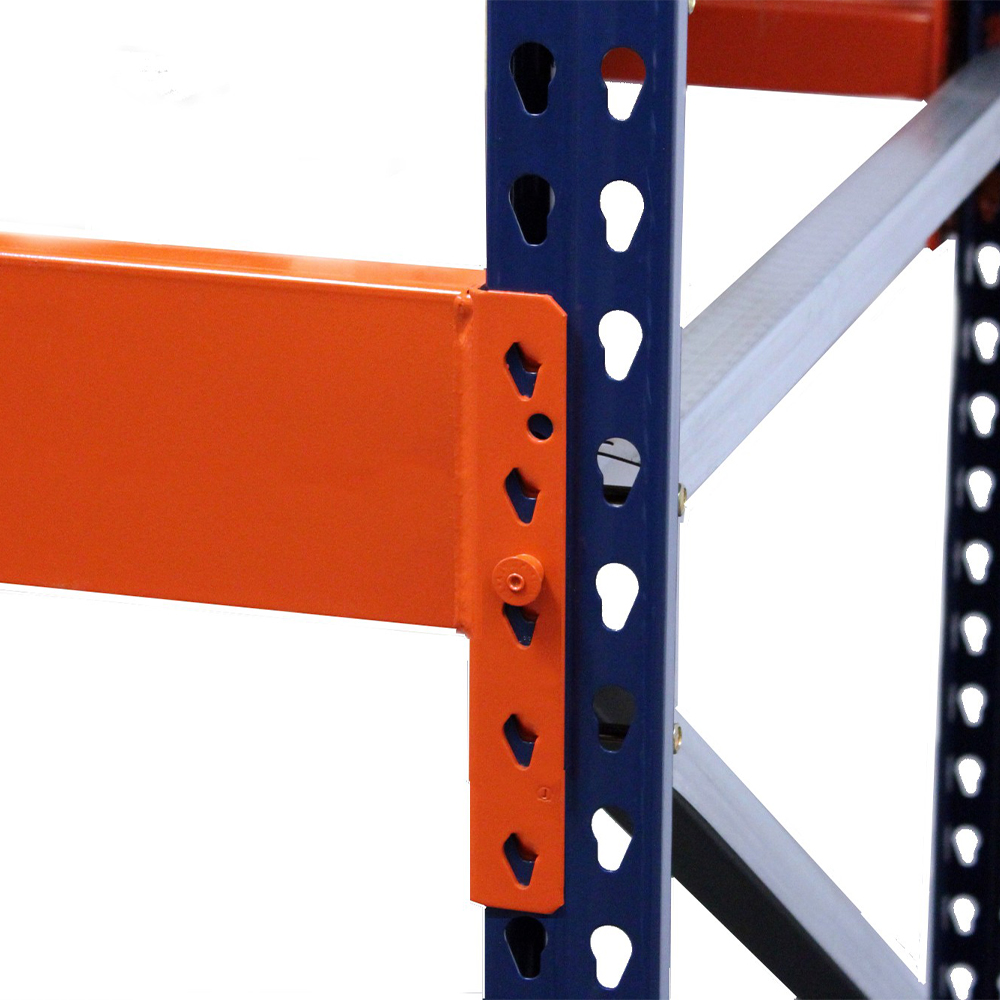

- Orange beams with piston lock for secure frame-to-beam connection
- Damage- and tamper-proof locking system
- 1-5/8" step on beams for wire decking and accessories
- RMI certified; suitable for non-seismic areas
- Depth:
- 48"
- Height:
- 120"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 108"
- Beam Height:
- 4.50"
- Shelf Capacity:
- 5,380 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
