The Interlake Mecalux 3141444845E108A blue/orange bolted teardrop pallet rack starter is a ready-to-implement storage solution designed for mixed-case and palletized inventory in demanding warehouses. This kit includes two uprights and two pairs of shelf beams, forming a complete, selective pallet rack starter that provides direct pallet access for straightforward stock management. The system uses tear-drop perforations on the upright columns to enable 2-inch incremental beam adjustments, giving flexibility to reconfigure as storage needs evolve. The assembly features a cataphoresis-based coating process with electro-chemical technology, delivering improved corrosion resistance and consistent finish across all components to withstand daily warehouse wear. Beams are orange and incorporate a piston-lock frame-to-beam connection that locks automatically to deter accidental disengagement and protect against damage during handling. A 1-5/8 inch step in the beam design allows for easy addition of wire decking or other accessories, expanding storage versatility without requiring separate hardware. This starter unit is certified by Rack Manufacturers Institute (RMI), reflecting adherence to recognized pallet rack standards and interchangeability with compatible Interlake Mecalux products sold separately.
Note: This item is not stocked in the warehouse, so processing times, stock availability, and potential for cancellation or returns may vary. If you need a delivery date confirmed, please contact us before placing the order, as expedited options and lead times can differ by item and carrier.
Overall, the blue/orange bolted pallet rack starter provides a sturdy, adjustable framework for heavy-duty storage in non-seismic environments, with proven, bolt-together construction and clear paths for expansion through additional racking and decking accessories.
Features:

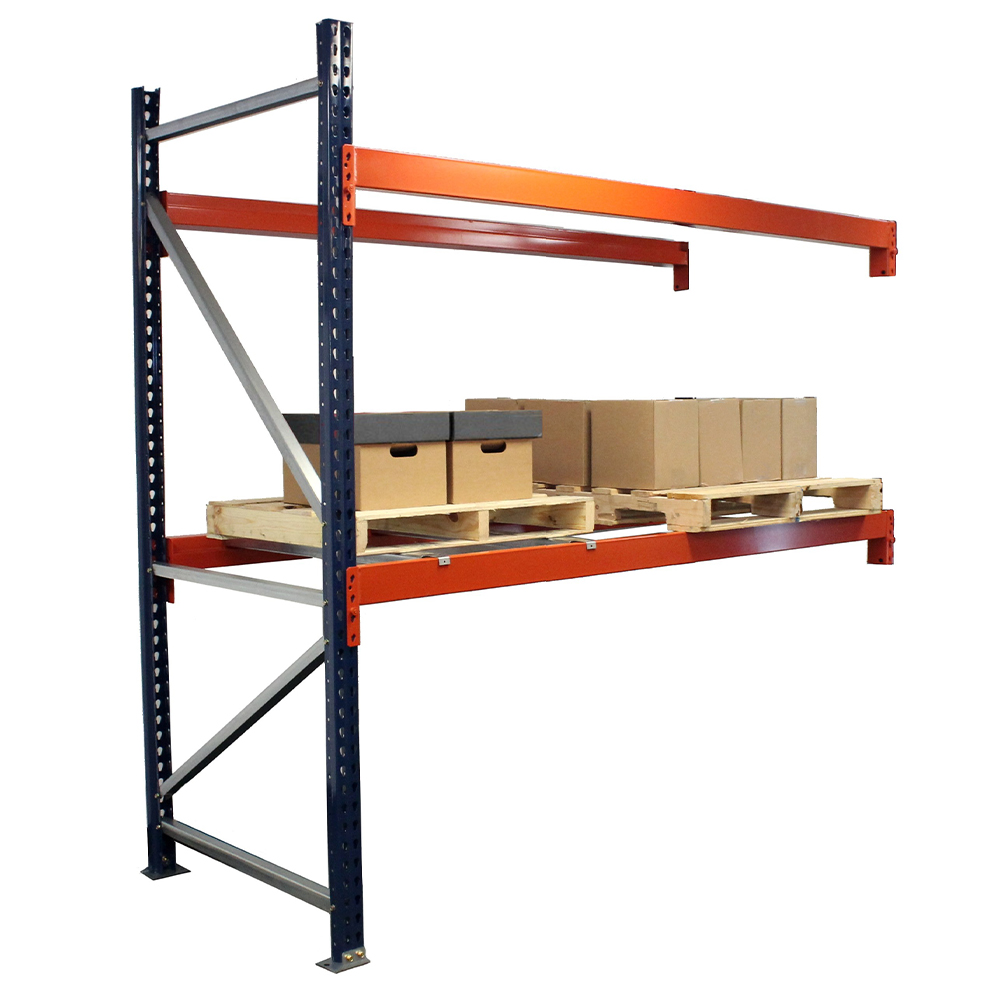

- Assembled bolted pallet rack starter unit with two uprights and two beam levels
- Uprights/beams in high-strength steel with tear drop perforations for 2" adjustments
- Cataphoresis electro-chemical paint process provides anti-corrosion protection

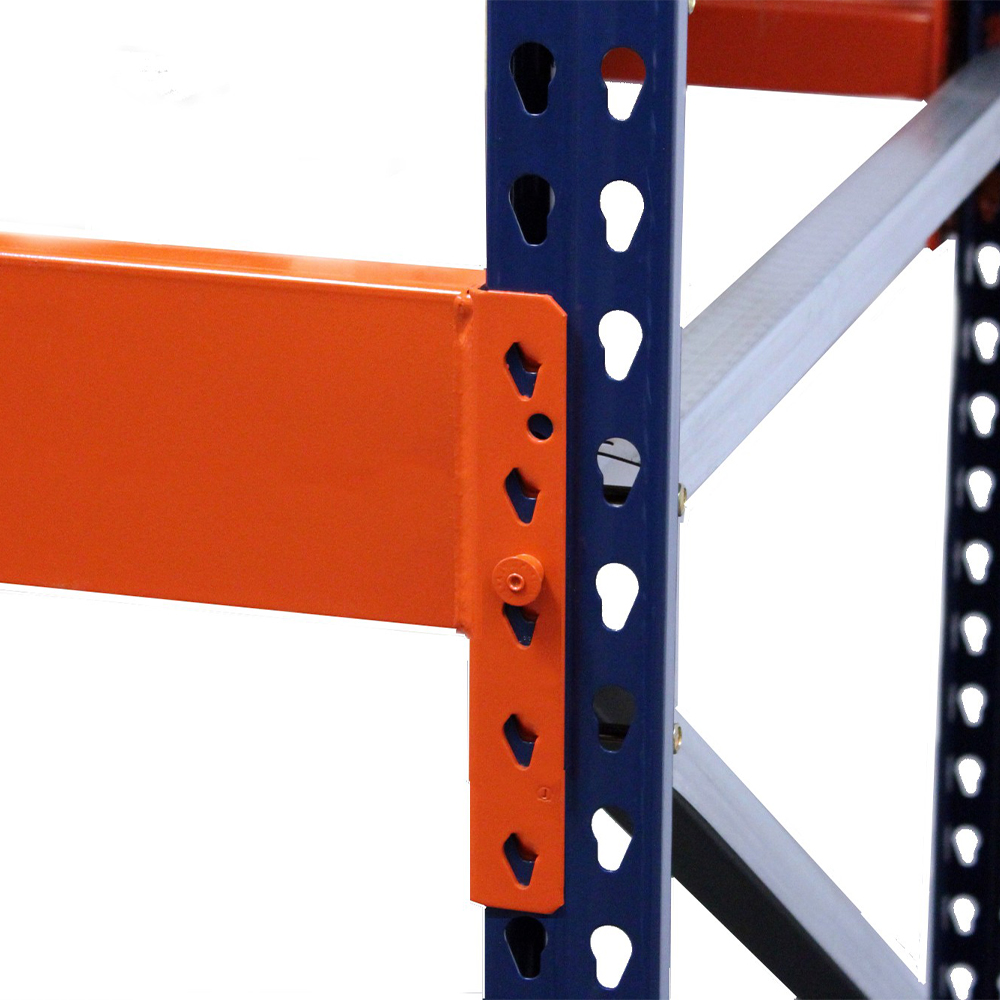

- Piston lock frame-to-beam connection auto-seats and protects against displacement
- 1-5/8" step on beams for wire decking and accessories
- Non-seismic area use only
- RMI-certified pallet rack system
- Depth:
- 48"
- Height:
- 144"
- Column Size:
- 3.00" x 2.71"
- Weight Capacity:
- 20,807 @ 48" beam spacing
- Beam Width:
- 108"
- Beam Height:
- 4.50"
- Shelf Capacity:
- 5,380 lbs
- Color:
- Blue / Orange
- Package Size:
- Kit
