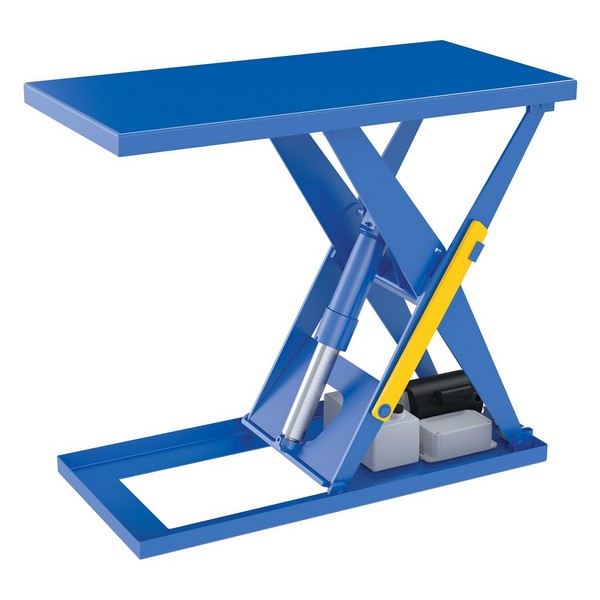

The Vestil EHLT-E-2448-2-41 is a steel, economical electric hydraulic lift table designed to lift and position heavy loads in manufacturing, warehouse, or shipping environments. With a 2,000 lb uniform capacity and a platform measuring 24 by 48 inches, this lift table provides a stable work surface accessible from all four sides thanks to its open design. The unit’s welded steel construction and internal power system support reliable operation in everyday material handling tasks, while the standard blue deck can be customized to other colors such as white, gray, red, orange, or yellow to suit shop graphics or color-coding needs. The raised height of 44 inches and lowered height of 8 inches offer a wide working travel range for loading, transfer, and staging activities.
Operation is simplified by a push-button hand control that keeps the operator at a safe distance from the moving platform. An upper travel limit switch prevents over-extension at maximum height, and an internal safety velocity fuse helps maintain platform height in the event of a hose or fitting failure, contributing to safer lifting cycles in routine use. A safety maintenance prop is included to support secure maintenance or service of the table when elevated. This lift table is appropriate for environments that require frequent, flexible loading and unloading from multiple directions, with attention to proper set-up and hose condition to ensure consistent performance.
Practical considerations include ensuring alignment with the unit’s 460 V electrical supply and verifying compatibility with existing floor pockets or mounting provisions if required. The package size is listed as Each, indicating this is typically sold as a single lift table unit per order. When selecting this model, confirm the storage and workspace dimensions to accommodate its 24" x 48" footprint and its full 44" raised height in operation, along with color-deep-dye deck options if color-match is important for facility standards.
Features:
- Open design for loading and unloading from all four sides
- Welded steel construction for durability
- Internal power unit for compact installation
- Safety maintenance prop included

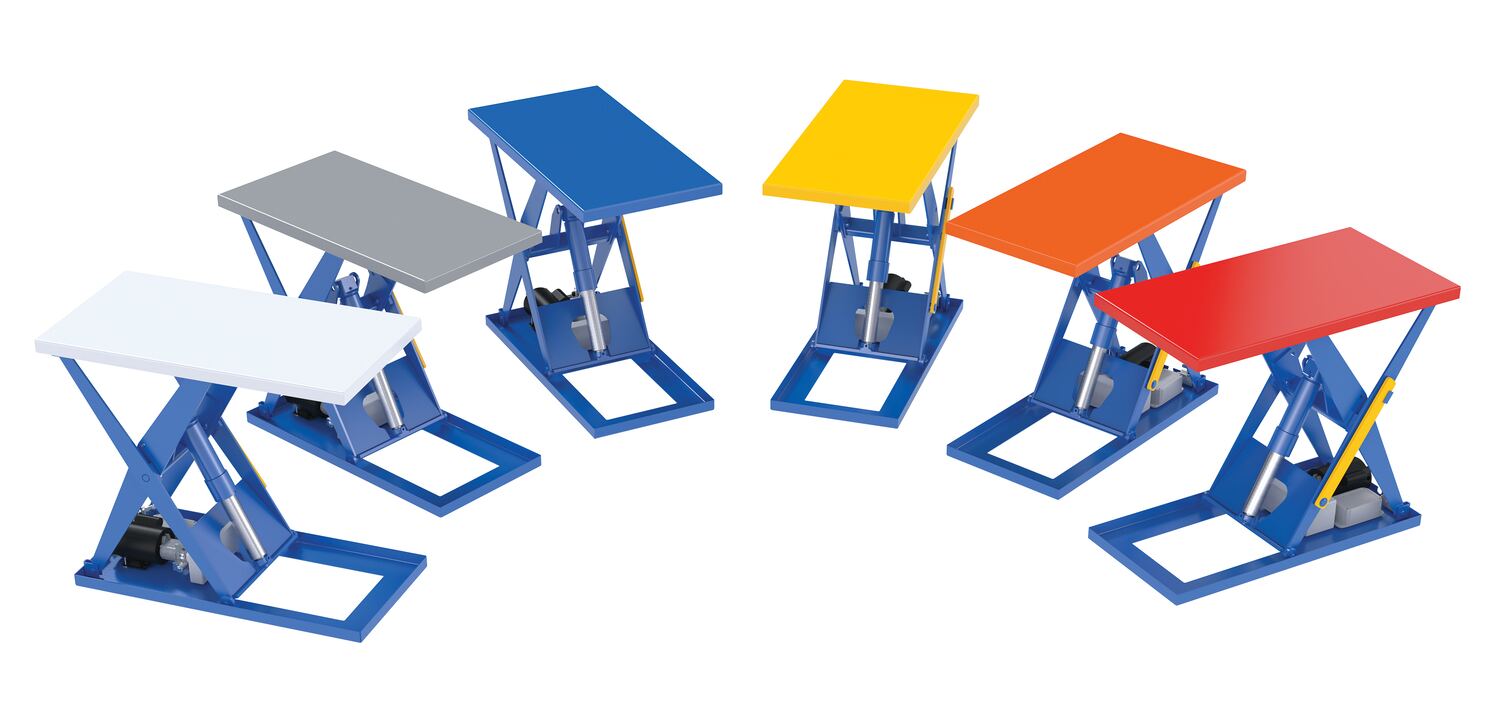

- Standard blue color with optional custom deck colors
- Platform size: 24" x 48"; raised height 44"; lowered height 8"
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 2000 lb
- Voltage:
- 460
- Raised Height (in.):
- 44
- Lowered Height (in.):
- 8
- Platform Width/Length (in.):
- 24" x 48"
- Package Size:
- Each
