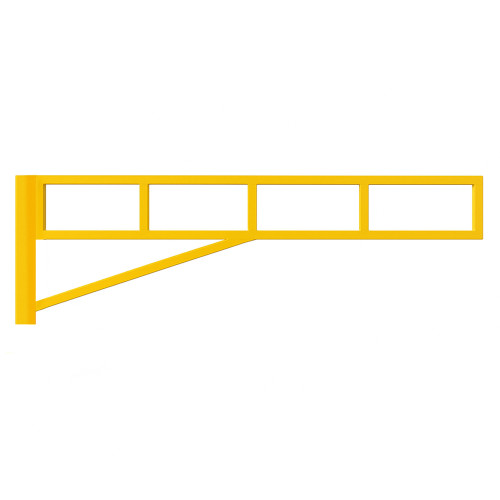

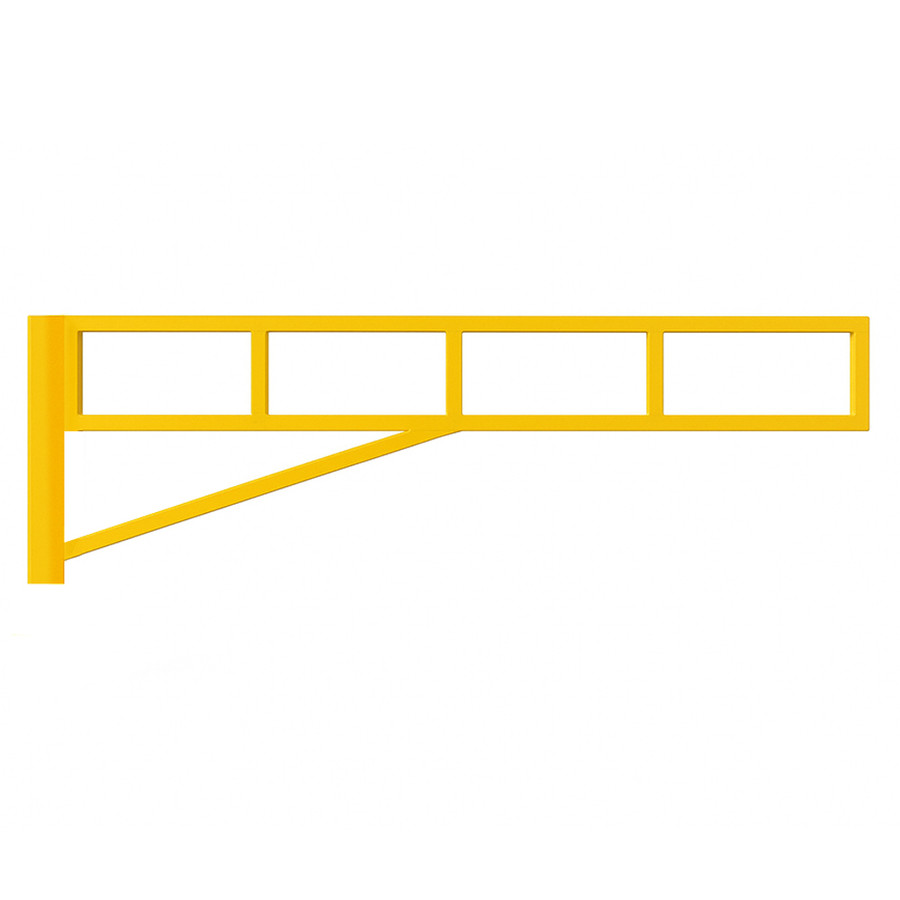

Savety Yellow SYP-DWGR-10 10' Rotating Dock/Driveway Gate

Customer Reviews
SKU:
SYP-DWGR-10
Weight:
280.00 LBS



$1,770.27
/ Each
  • Savety Yellow SYP-DWGR-BOLL Surface Mount Bollard For Rotating Dock/Driveway Gate
  • Savety Yellow SYP-DWGR-BURY 6" X 84" Direct Bury Bollard For Rotating Dock/Driveway Gate

Description

Save-ty Yellow Products rotating dock and driveway gates are used for safety and fall protection in loading areas where steep edges, heavy equipment and packages can pose a hazard. These heavy duty welded steel gates rotate a full 360 degrees. Add an additional bollard to act as a gate stop. These gates are powder-coated with a hi-viz yellow color for easy visibility.



Product Features:

  • Gate mounts over a 6" direct bury bollard or surface mount bollard.
  • Installation as simple as installing the bollard and sliding gate over the top.
  • Choose from widths ranging from 5' to 14'.
  • Install only one gate or choose to do two gates that meet in the center.
  • For single gates add optional bollard as gate stop.
  • Solid all-welded steel construction.
  • Powder coated safety yellow for high visibility and durability!

Downloads:

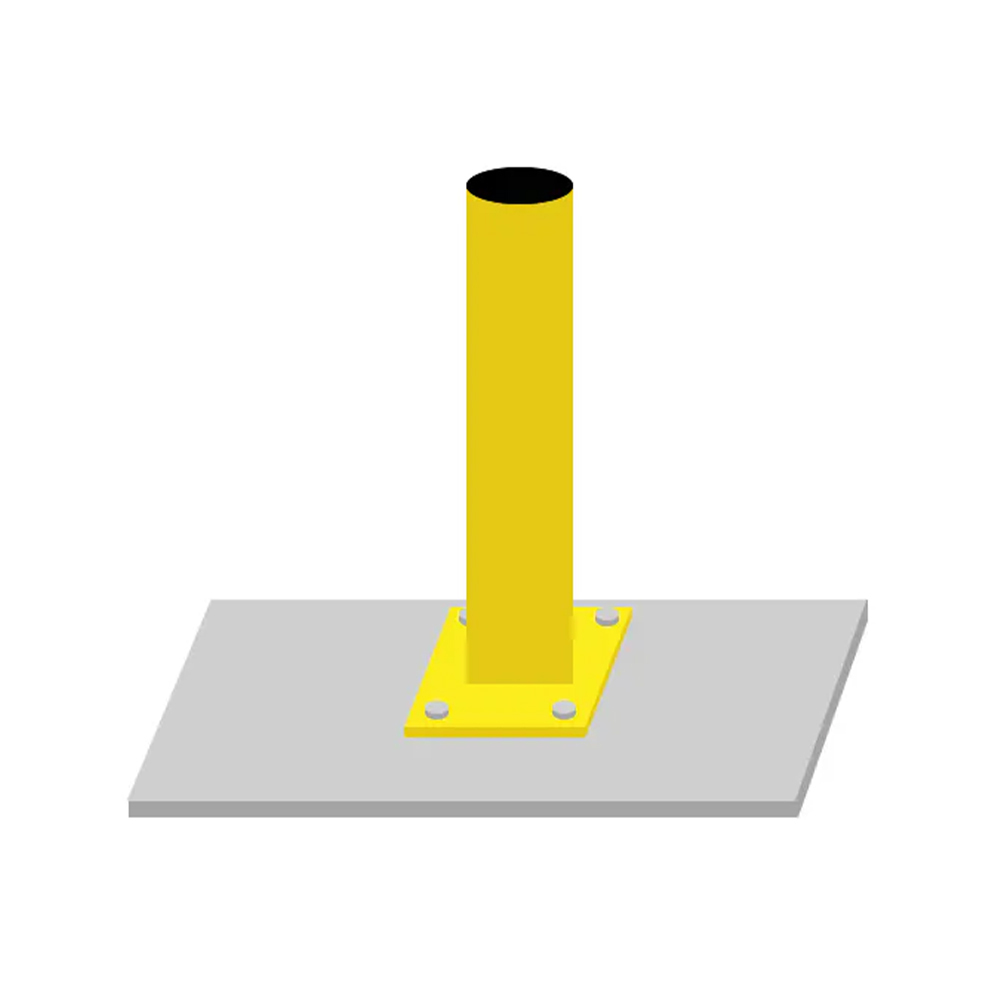

Surface Mount Bollards

Like the name suggests, Save-ty Yellow Products surface mount bollards are installed on the surface, requiring 4 anchor bolts. Surface mount bollards are ideal for more temporary applications, and don't require excavating or core drilling.

Surface Mount Bollard For Savety Yellow Rotating Dock Gates

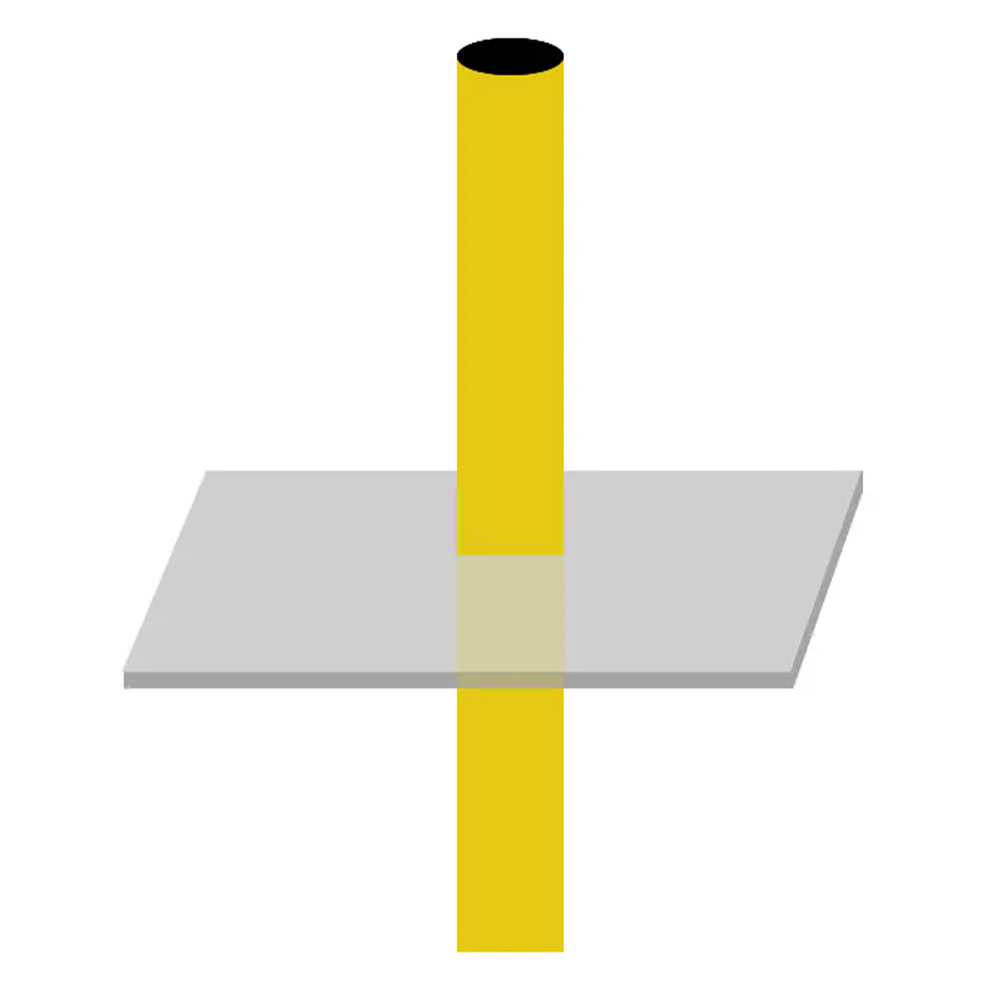

Direct Bury Bollards

Save-ty Yellow Products direct bury bollards, also known as underground bollards, are buried in the ground for a more permanent solution compared to surface mount bollards. This style is designed to be installed underground or poured into place in fresh concrete. Direct bury bollards are also ideal in areas where a surface mount bollard can't be used, like in a soft ground application.

 Direct Bury Bollard For Savety Yellow Rotating Dock Gates

Installation

1. Install The Bollard

Whether you're using a direct bury bollard or a surface mount bollard, the first step is to install the bollard.



Direct Bury Bollard

After making sure there are no underground utilities in the area and getting permits, direct bury bollards can be installed by coring and digging a hole 2″ wider in diameter than the bollard, and 2″ deeper than the bollard base will sit. Pour concrete to fill the remainder of the hole.



Surface Mount Bollard

Surface mounted bollards are bolted to the concrete through a base plate. The installer marks the positions of the holes in the base plate, and then drills into the concrete surface with a 5/8″ masonry drill bit. The bollard is positioned on top, and bolts are tightened through the base plate which grab into the insert.

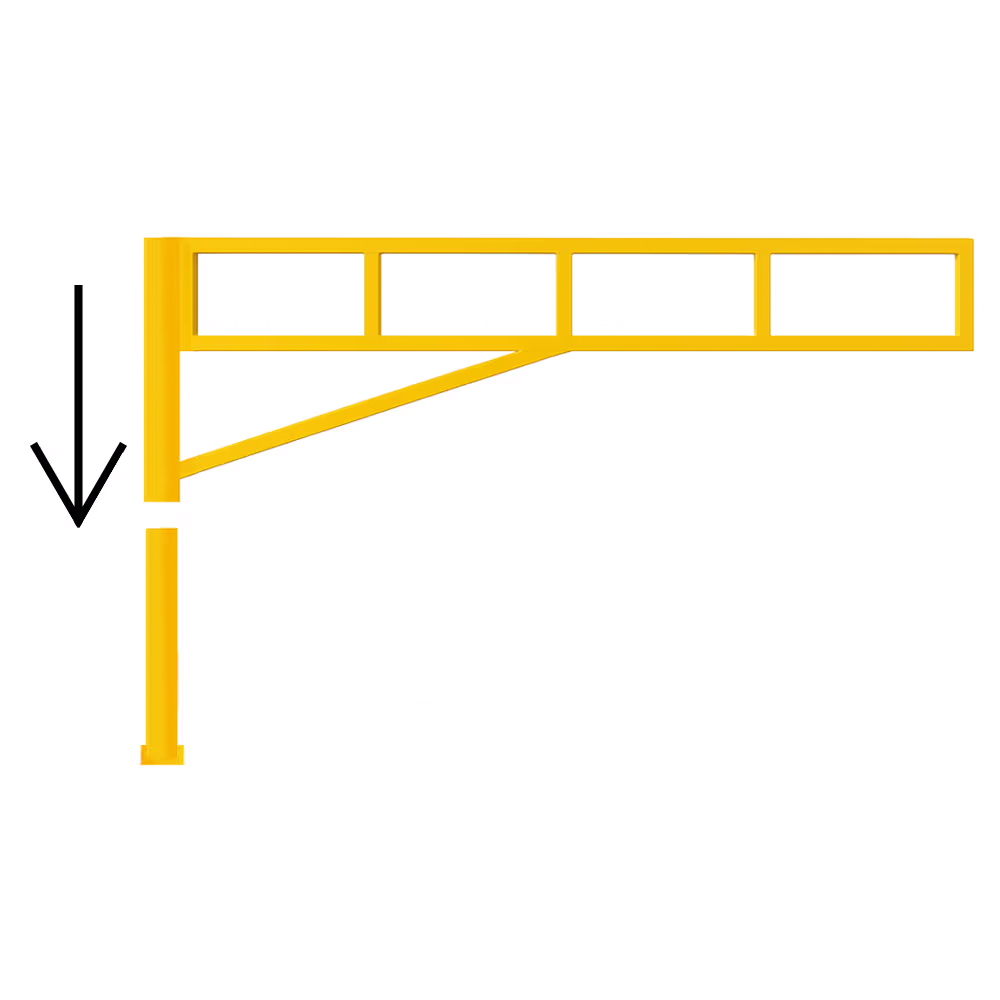

2. Slide The Gate Over Top Of The Bollard

Once the bollard is installed and the concrete is dry and secure, if using a direct bury bollard, slide the gate over top of the bollard. To reduce friction from the gate rubbing on the bollard, liberally grease the bollard with lithium grease prior to sliding on the gate. Once the gate is slid over the bollard, it is able to rotate a full 360 degrees.

 Savety Yellow Rotating Dock Gate Being Installed on Bollard



*Item may have 7-8 Week lead time. Price Subject To Change Due To Fluctuating Steel Costs.

Add to quote for an accurate price and shipping quote.*



Additional Colors Available. Add to quote or contact us for details.






Save with The Safety Source

At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.



Product Specifications:

Length 120"
Height 42"
Color Yellow
Package Size Each
SKU:
SYP-DWGR-10
Weight:
280.00 LBS
Width:
120"
Height:
42"
Color:
Yellow
Package Size:
Each
