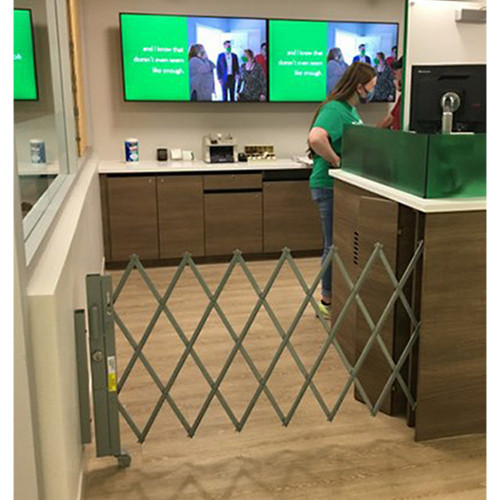

The IEPSSG480-ANG is a single, retractable folding gate designed to secure loading docks, doors, hallways, and entryways while preserving visibility, air movement, and access control. When deployed, the gate spans 3 to 4 feet in width and rises to a usable height of 7 ft 6 in, with a compact 8 in stacked profile that allows it to fit into tight vertical spaces. The unit retracts on its mounts to move completely out of the way, minimizing obstruction when access is required. The design favors quick, controlled separation of secured areas from open spaces, helping to deter unauthorized entry while maintaining line of sight and ventilation.
Construction emphasizes rugged, industrial-grade components. A heavy-duty 12-gauge steel vertical frame supports a 14-gauge steel webbing lattice, providing a sturdy barrier with maintained rigidity. The galvanized finish adds corrosion resistance and eases cleaning, contributing to long-term durability in varied facility environments. Included mounting brackets, a bearing washer, and solid steel casters simplify installation; note that lag bolts and the padlock are not provided, allowing you to select the hardware and locking method that best fits your site and security needs. An important ergonomic detail is that the gate loses 6 inches in height when extended, a factor to consider for clearance and door openings.
This single-gate solution is suitable for securing receiving doors, lift-up doors, hallways, and entryways where light and air flow must be preserved. It ships unassembled for flexible on-site mounting and alignment. If you need customization, such as a powder-coated finish, consult us for available options.
Features:
- Secure doors, hallways, and entryways while allowing light and air flow
- Heavy-duty 12-gauge steel frame with 14-gauge steel webbing
- Galvanized finish for durability, rust resistance, and easy cleaning
- Retracted gate pivots on mounts to move completely out of the way
- Height reduces by 6" when extended (7'6" expanded, 8' collapsed)
- Includes mounting brackets, bearing washer, and solid steel caster (lag bolts and padlock not included)
- Width:
- 3' to 4'
- Height:
- 8'
- Depth:
- 11 stacked
- Fits Widths:
- 3' to 4'
- Expanded Height:
- 7' 6
- Collapsed Height:
- 8'
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles
- Caster:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Single Gate
- Assembly:
- Ships unassembled
- Weight:
- 67.0 lbs. ea.
- Package Size:
- Each
