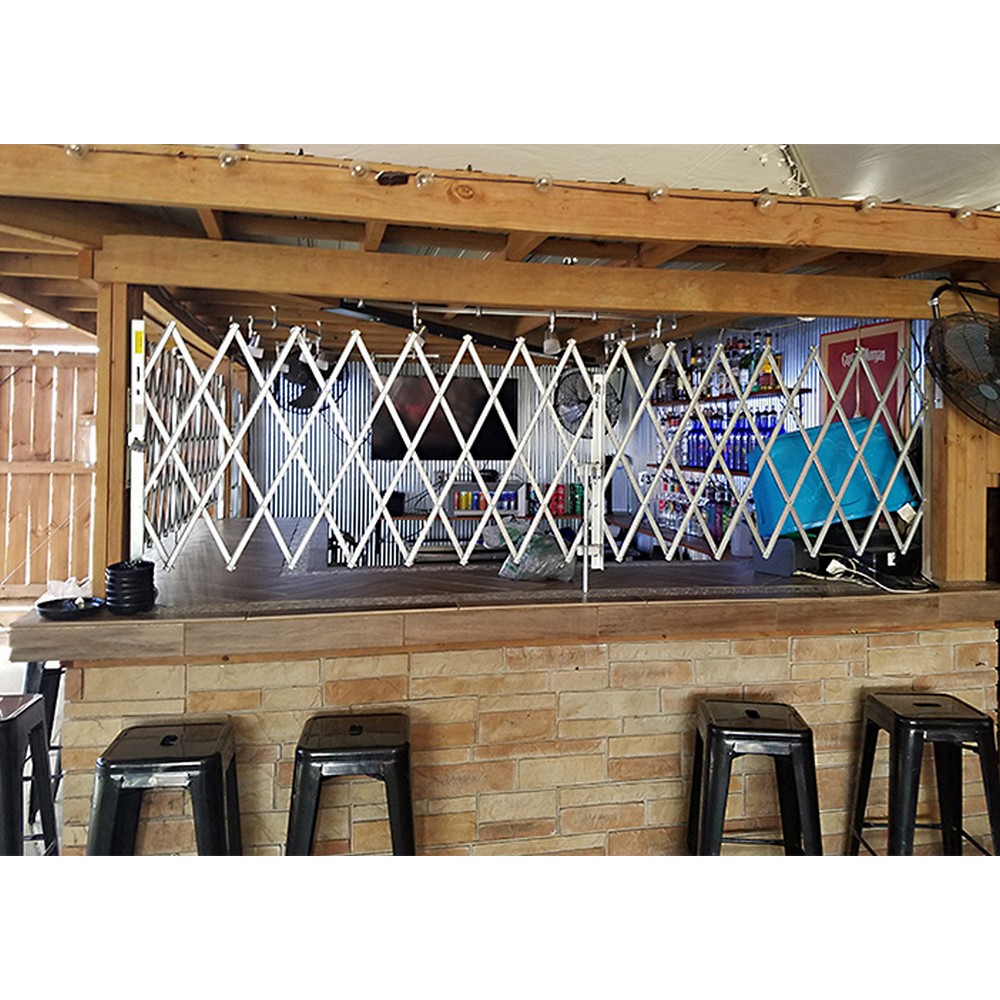

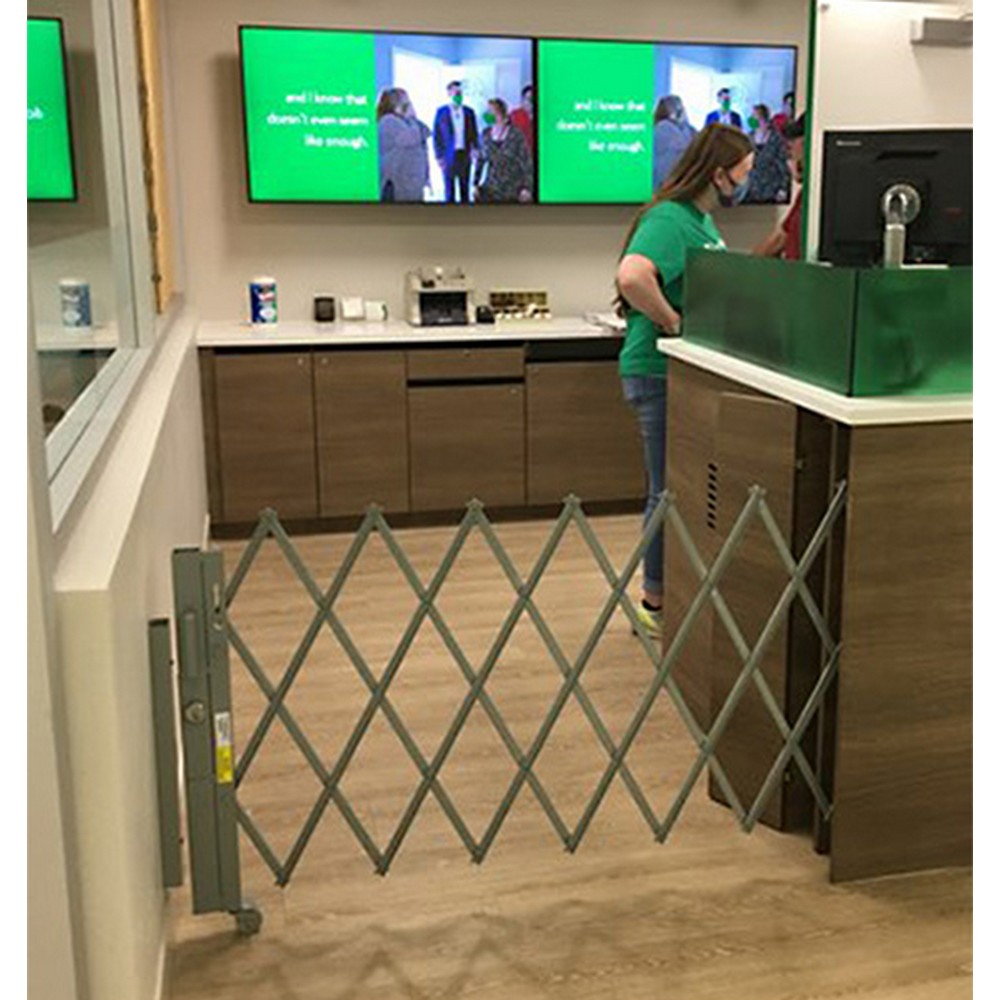

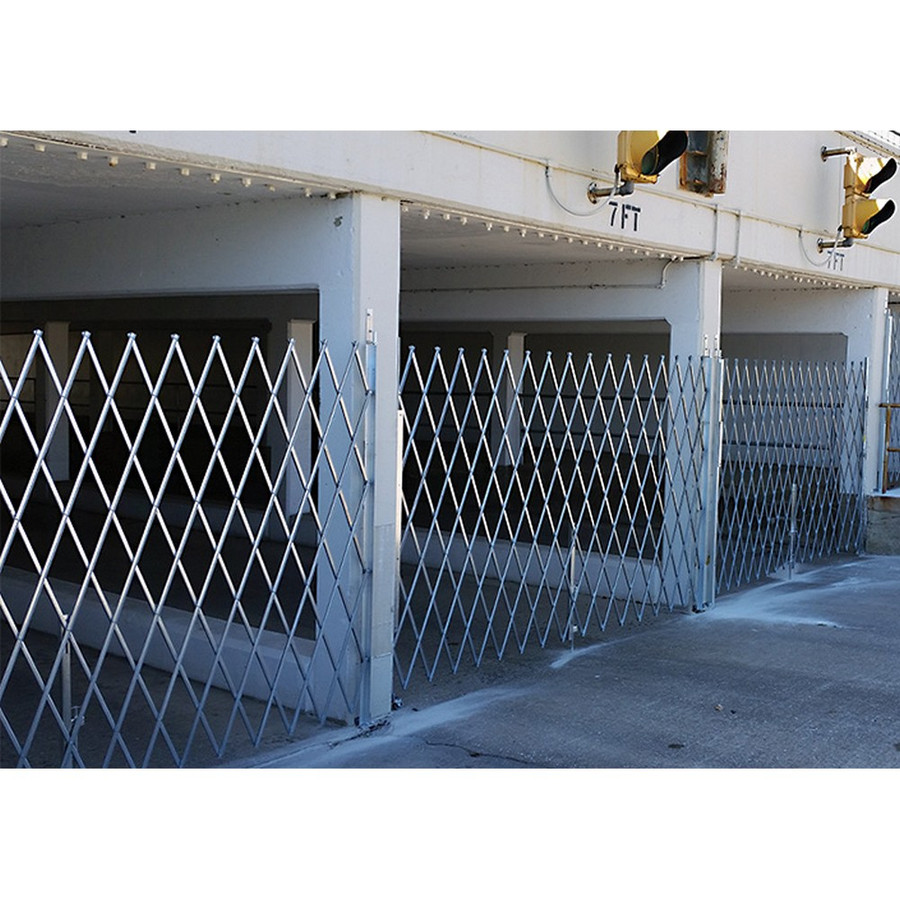

The Illinois Engineered Products SSG870-ANG Retractable Folding Gate is designed to secure high-traffic openings like loading docks, hallways, and service doors while preserving sightlines and air flow. This single-gate assembly features a heavy-duty 12-gauge steel vertical frame paired with 14-gauge steel lattice webbing, providing a sturdy barrier that can be quickly extended or retracted as access needs change. The galvanized finish enhances rust resistance and simplifies cleaning, helping maintain a professional appearance in industrial environments. When not in use, the gate retracts to move completely out of the way, minimizing obstruction and preserving space.
Key build details include a heavy-duty 12-gauge vertical angle frame measuring 1-1/2" x 1-1/2", with heavy-duty 14-gauge steel U-channel webbing riveted to aircraft-quality aluminum rivets. The gate accommodates widths from 7' to 8' and collapses to a height of 7', expanding to a working height of 6'6" when extended. Included hardware supports installation, including mounting brackets, bearing washer, and solid steel caster; note that lag bolts and a padlock are not included, so securing hardware can be selected to match site requirements. The design allows the gate to be positioned to block access while maintaining visibility and airflow through the opening.
This single-gate unit ships unassembled and weighs approximately 85 lb, with a depth of 11" in its stacked configuration. The system is suitable for securing receiving doors, lift-up doors, hallways, and entryways where light and air circulation are important. Custom powder coating options are available—consult for details. When planning installation, consider the need for compatible mounting brackets and fasteners specific to your mounting surface and ensure appropriate padlock security hardware is procured separately.
Features:
- Secure doors, hallways, and entryways while allowing light and air circulation
- Sturdy 12-gauge steel vertical frame with 14-gauge steel webbing
- Galvanized finish for durability, rust resistance, and easier cleaning
- Retracted gate pivots to move completely out of the way
- Gates reduce 6" in height when extended
- Includes mounting brackets, bearing washer, and solid steel caster; lag bolts and padlock not included
- Width:
- 7' to 8'
- Height:
- 7'
- Depth:
- 11 stacked
- Fits Widths:
- 7' to 8'
- Expanded Height:
- 6' 6
- Collapsed Height:
- 7'
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles
- Caster:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Single Gate
- Assembly:
- Ships unassembled
- Weight:
- 85.0 lbs. ea.
- Package Size:
- Each
