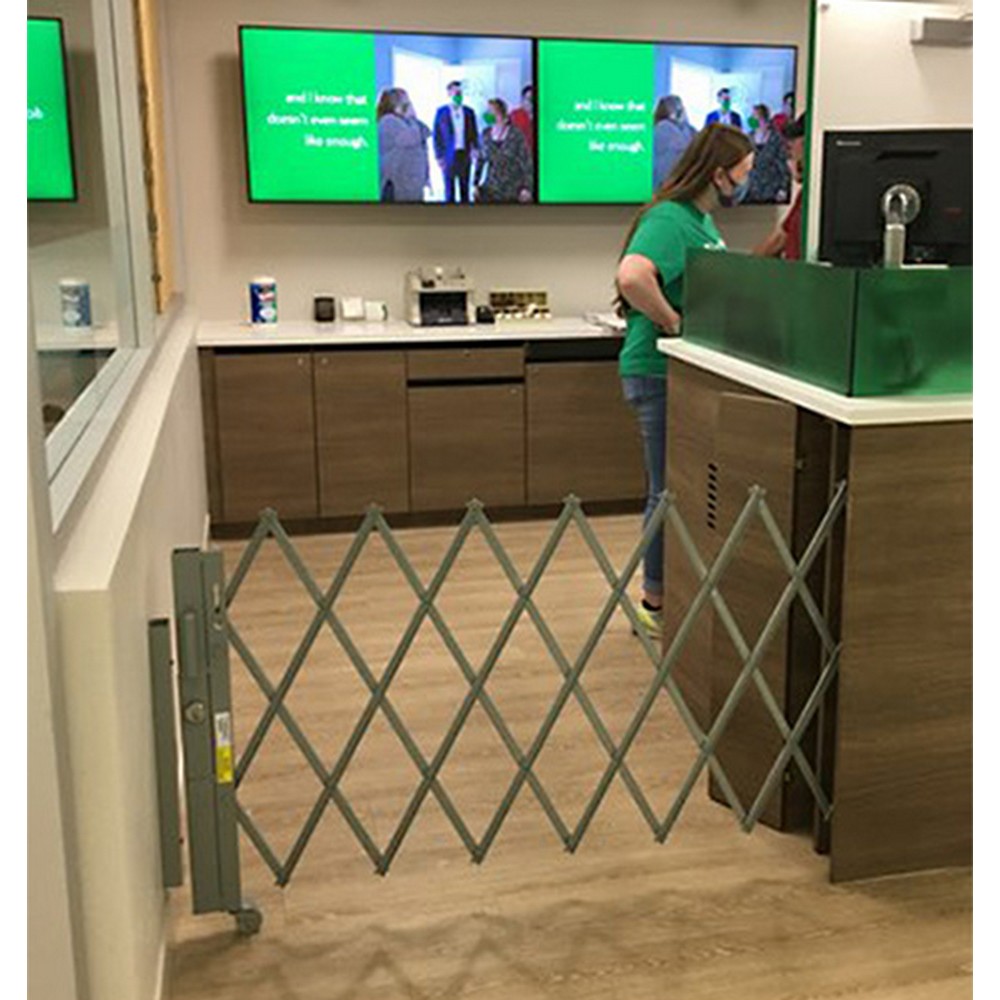

The Illinois Engineered Products SSG470-ANG is a single, retractable folding gate designed to secure openings such as loading docks, service doors, hallways, and entryways while preserving visibility, air flow, and access. This gate provides controlled access with a padlock-ready design and includes mounting brackets for straightforward installation, making it suitable for facilities that need to quickly secure or reveal openings without obstructing traffic or light. The retractable feature allows the gate to pivot out of the way, enabling full clearance when not in use, and it loses 6 inches of height as it extends to full deployment to maximize the usable opening.
Constructed for durability, the gate features a heavy-duty 12-gauge steel vertical frame paired with 14-gauge steel webbing. The galvanized finish enhances rust resistance and simplifies cleaning, which is beneficial for high-traffic or damp environments. The lattice is created from heavy-duty 14-gauge steel U-channel webbing riveted back-to-back with aircraft-grade aluminum rivets, providing a robust balance of strength and lightweight handling. Each unit ships unassembled with solid steel casters for mobility, and its design accommodates easy mounting in a variety of widths.
This model is specified as a 3 to 4-foot wide, single-gate assembly with an expanded height of 6 feet 6 inches and a collapsed height of 7 feet. It is intended for installations where secure access control is essential but where light, air circulation, and visibility must be maintained. Consult installation details for bracket mounting, bearings, and caster setup to ensure proper fit and operation for your doorway or opening. The gate weighs 61 pounds per unit and is offered with options such as custom powder coatings; however, lag bolts and padlocks are not included and must be sourced separately.
Features:
- Secure doors, hallways, and entryways while allowing light and air circulation
- Heavy-duty 12-gauge steel vertical frame with 14-gauge steel webbing
- Galvanized finish for durability and rust resistance
- Retracted gate pivots to move completely out of the way
- Gates extend to 6'6" and retract to 7' tall
- Includes mounting brackets, bearing washer, and solid steel caster; lag bolts and padlock not included
- Width:
- 3' to 4'
- Height:
- 7'
- Depth:
- 11 stacked
- Fits Widths:
- 3' to 4'
- Expanded Height:
- 6' 6
- Collapsed Height:
- 7'
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles
- Caster:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Single Gate
- Assembly:
- Ships unassembled
- Weight:
- 61.0 lbs. ea.
- Package Size:
- Each
